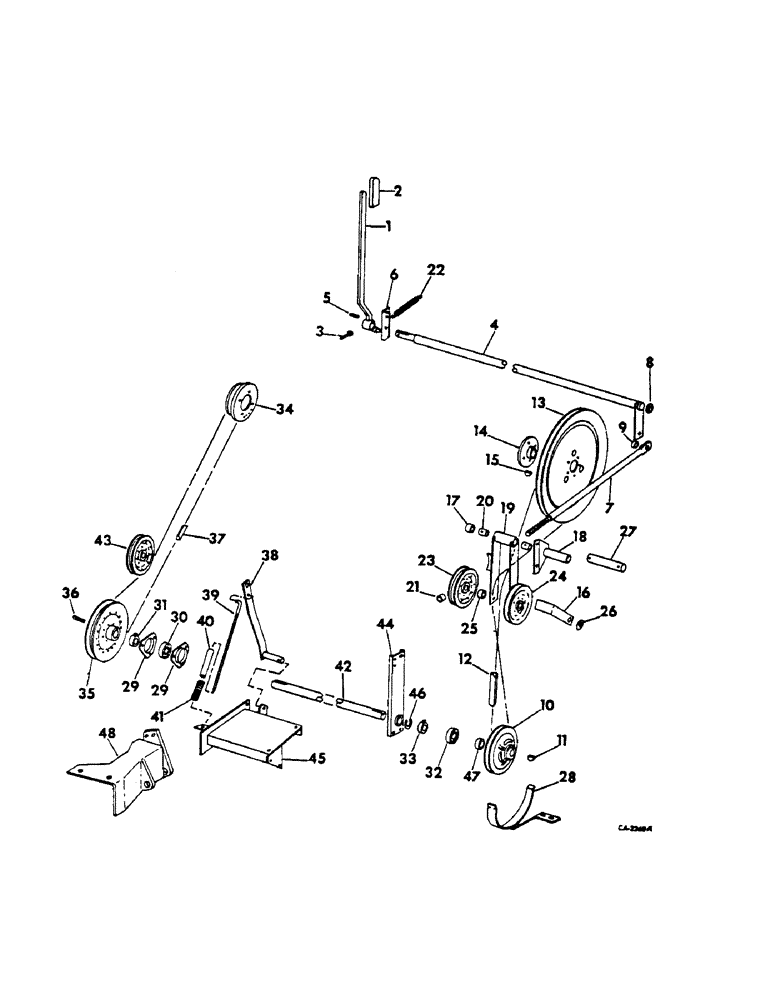

Запчасти Case IH 615 (26-13) - GRAIN TANK, GRAIN TANK UNLOADER DRIVE AND CONTROLS Grain Tank

1

938883R91

LEVER ASSY, unloader control

1шт.

2

938885R1

GRIP

unloader control lever stop

1шт.

3

623167R1

BOLT, unloader control lever stop

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

171753C1

PIPE ASSY, unloader front control

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga

8шт.

22181R1

WASHER, 1-3/32 x 1-3/4 x 16 ga

4шт.

5

Q26

KEY,1/4" Sq x 1 1/4", Par

1/4 x 1-1/4 sq parallel

1шт.

6

629561R1

BRACKET, front control pipe left

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 ZND hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

627909R91

PIPE ASSY, unloader control rear

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 ZND hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

8

170999C1

WASHER, pivot

1шт.

9

556587R1

SPACER

unloader control rear pipe

1шт.

10

627895R1

PULLEY

unloader drive, 6-5/8 in. OD, belt drive transmission

1шт.

10

1506691

PULLEY, unloader drive, 8-1/2 in. OD, hydrostatic drive transmission, serial no. 3290 and below

1шт.

10

175542C1

PULLEY

unloader drive, 8-1/2 in. OD, hydrostatic drive transmission, serial number 3291 thru 12000

1шт.

11

124544

WOODRUFF KEY,#4, 3/32" x 5/8", HT

KEY, 5/16 x 1 Woodruff hard, belt drive transmission

1шт.

11

Q1443

KEY,5/16" Sq x 1 1/2", Par

5/16 x 1-1/2 sq-parallel, hydrostatic drive transmission, serial number 3291 thru 12000

1шт.

12

559064R1

V-BELT,0.88" W

Unloader drive, Belt drive transmission 0.88" W

1шт.

12

165676C1

V-BELT,0.88" W x 153.99" L

Grain Tank Unloader Drive, Hydrostatic Drive Transmission, Serial Number 12000 and Below 0.88" W x 153.99" L

1шт.

13

22784KA

PULLEY

ASSY, unloader driven, 21 in. OD

1шт.

14

632539R1

INTAKE ASSY

HUB, unloader driven pulley

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 ZND hex-hd mach

5шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

15

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 Woodruff hard

1шт.

16

629542R1

SUPPORT, retainer

1шт.

17

583345R1

SPACER, tightener pulley pivot shaft

1шт.

18

174433C1

SHAFT ASSY, pivot idler

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 ZND sq-nk crg

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga

8шт.

19

171000C1

ARM ASSY, unloader tightener, includes ref no. 20

1шт.

20

559317R1

BUSHING,25.55mm ID x 28.6mm OD x 38.1mm L

2шт.

21

576015R1

SPACER,7/8" Tube x 11/16"

control rod pivot arm

1шт.

22

580107R1

SPRING

unloader lever return

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

23

570265R91

PULLEY

ASSY, tightener inner, 7 in OD

1шт.

24

154742C91

PULLEY

ASSY, tightener outer, 5 in. OD

1шт.

19678R1

BOLT,Hex, 5/8" - 11 x 5 1/4", Gr 2

5/8 x 5-1/4 ZND hex-hd mach

1шт.

1245889

NUT, 5/8 C-Z hex.

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

7шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga

2шт.

25

575098R1

SPACER,16.7mm ID x 22.23mm OD x 15.9mm L

tightener pulley

1шт.

26

574237R1

WASHER, tightener pulley shaft

1шт.

27

631325R1

SHAFT, unloader drive idler pivot, for grain tank ext. w/raised leveling auger, 13-1/2 in. high

1шт.

137258

COTTER PIN

3/16" x 1 3/4"

2шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga

6шт.

28

171001C1

GUIDE ASSY, unloader belt lower, belt drive transmission

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 ZND hex-hd mach

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 ZND flange lock

2шт.

28

171004C1

GUIDE ASSY, unloader belt lower, hydrostatic drive transmission, serial number 12000 and below

1шт.

29

571425R1

FLANGED BEARING

unloader jackshaft LH brg

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 ZND sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

30

571334R91

BALL BEARING,1.125" ID x 62 mm OD x 1.29"

ASSY, unloader jackshaft LH

1шт.

31

57115R11

COLLAR W/SET SCREW, lkg

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd

1шт.

32

618210R91

BEARING

ASSY, unloader jackshaft RH

1шт.

33

557115R11

COLLAR

COLLAR W/SET SCREW, lkg

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-soc-hd

1шт.

34

171755C1

PULLEY, unloader jackshaft drive, 6-1/2 in. OD

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8 x 3 hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

35

6626770R1

PULLEY, unloader jackshaft driven, 10-1/4 in. OD, serial no. 3290 and below

1шт.

35

175544C1

PULLEY

unloader jackshaft driven, 11 in. OD, serial no. 3291 and above

1шт.

36

Q3930

KEY,Gib, 5/16" Sq x 1 3/4"

5/16 x 1-3/4 GIB

1шт.

37

150670C1

V-BELT,0.63" W x 157.79" L

Unloader Jackshaft Drive, Serial No. 3290 and Below 0.63" W x 157.79" L

1шт.

38

155017C91

ARM ASSY, unloader jackshaft drive belt tightener pulley

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

1шт.

39

150681C1

ROD, unloader jackshaft drive belt tightener pulley adj

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

614452R1

WASHER

13/32 x 1-1/4 x 16 ga

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga ZND

1шт.

40

150682C1

SPACER, unloader jackshaft drive belt tightener pulley adj rod

1шт.

41

V679

VALVE SPRING

SPRING, unloader jackshaft drive belt tightener pulley and rod

1шт.

42

153262C1

SHAFT, grain tank unloader jack, serial no. 3290 and below

1шт.

42

175725C1

SHAFT, grain tank unloader jack, serial no. 3291 and above

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

21716R1

WASHER

1-5/32 x 1-3/4 x 16 ga

2шт.

43

570265R91

PULLEY

ASSY, unloader jackshaft drive belt tightener, 7 in. OD

1шт.

18826R1

BOLT,Hex, 5/8"-11 x 3", G2

5/8 x 3 ZNP hex-hd mach

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

7шт.

44

171015C1

BRACE ASSY, propulsion jackshaft RH brg support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 ZND sq-nk crg

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 ZND hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

45

153260C91

BRACKET ASSY, unloader jackshaft left

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 ZND sq-nk crg

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 ZND hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

46

360936R1

RING

unloader jackshaft RH brg snap

1шт.

47

150651C1

SPACER

unloader jackshaft RH, serial no. 3290 and below

1шт.

48

HANGER, prop. jackshaft and fan dr, refer to propulsion drive group 07 for unit listing

1шт.
