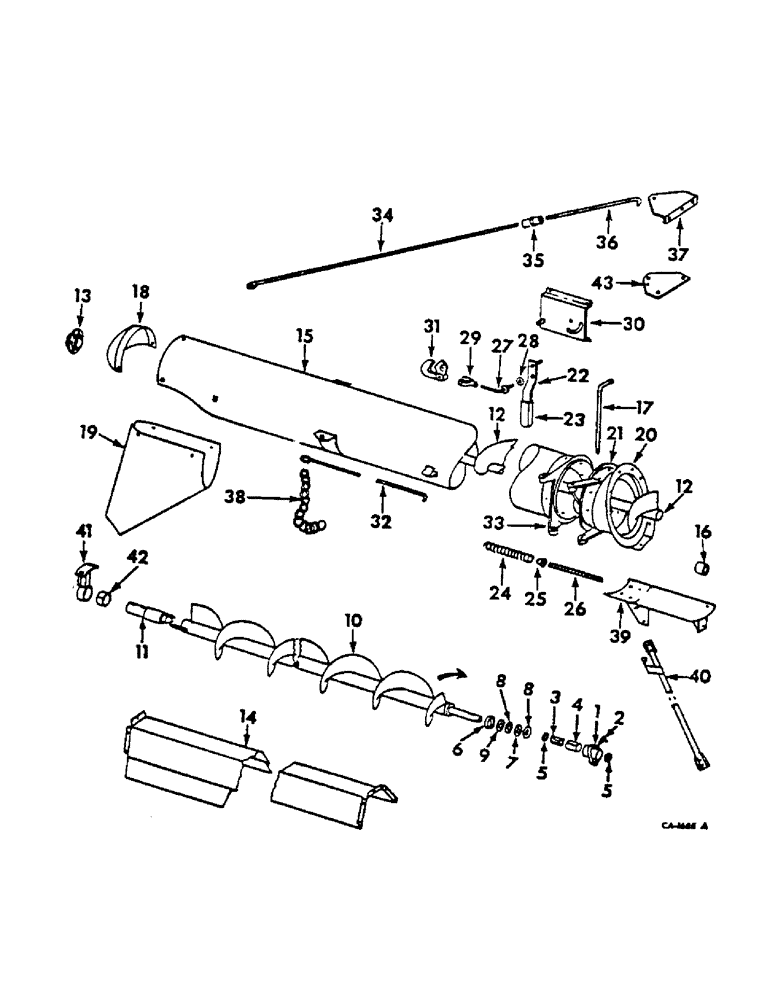

Запчасти Case IH 615 (26-11) - GRAIN TANK, GRAIN TANK UNLOADER Grain Tank

1

564556R1

BOX

unloader lower auger brg

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21886R1

HEADED PIN,1/4" x 1"

PIN, 1/4 x 1 C-Z std-hd

1шт.

2

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 45 deg angle lub

1шт.

3

564557R91

BEARING ASSY,1" ID x 1.378" OD x 1.75"

ASSY, unloader lower auger

1шт.

4

554689R1

RACE, unloader lower auger brg

1шт.

5

564592R91

SEAL,23.5mm ID x 36.6mm OD x 6.5mm Thk

unloader lower auger brg oil

2шт.

6

U14764

WASHER

unloader lower auger thrust brg cup

1шт.

7

368372R91

THRUST BEARING

unloader lower auger thrust

1шт.

8

864982R1

THRUST WASHER,1.012" ID x 1.552" OD x 0.93"

RACE, unloader lower auger thrust brg

2шт.

9

21127R1

WASHER

thrust brg seal felt

1шт.

10

936507R91

AUGER ASSY, unloader lower

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

4шт.

21213R1

WASHER

1-1/32 x 2 x 11 ga C-Z

1шт.

11

629663R91

STUD ASSY, unloader auger

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 ZND hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20885R1

WASHER

1-5/32 x 2 x 16 ga C-Z

1шт.

12

627373R91

AUGER ASSY, unloader upper

1шт.

13

564851R91

BALL BEARING,1.002" ID x 3.75" OD x 0.9"

ASSY, unloader upper auger

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 ZND hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

14

629833R91

SHIELD ASSY, unloader lower auger

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 ZND sq-nk crg

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z hex. whiz lock

3шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 C-Z hex-hd type D tap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

15

171512C91

TUBE ASSY, unloader upper, includes ref no. 33

1шт.

106900

RIVET,Truss Hd, 1/4" x 3/4"

10шт.

16

SA2172

SPACER,3/8" Pipe x 1/2"

unloader transport support

2шт.

17

587686R1

PIN, unloader tube hinge

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

18

584266R1

BRACKET, unloader upper auger brg

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 ZND hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

2шт.

19

171517C1

SPOUT, DISCHARGE

SPOUT, unloader tube

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 ZND sq-nk crg

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 ZND hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

4шт.

20

171518C91

FLANGE ASSY, unloader lower, includes ref no. 21

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 ZND sq-nk crg

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 ZND glange lock

4шт.

106900

RIVET,Truss Hd, 1/4" x 3/4"

9шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

21

171520C1

HINGE, unloader auger inner

1шт.

22

171243C1

HANDLE ASSY, unloader tube

1шт.

274993

SHIELD

3/8 CDP torque type hex. lock

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

23

938885R1

GRIP

handle

1шт.

24

PO181

SPRING, unloader tube

1шт.

25

PO2315

PLUG

spring

1шт.

26

667486R1

BOLT

BOLT, spring

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

27

171245C1

ROD

ASSY, latch control

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

28

318329R1

WASHER

spring

1шт.

29

161003C1

NO LONGER SERVICED

YOKE

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

30

171523C1

BRACKET ASSY, tube latch support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

5/16 x 1 C-Z whiz lock

4шт.

20893R1

WASHER

11/32 x 1 x 11 ga C-Z

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

3шт.

31

171249C1

LATCH

unloader tube

1шт.

32

172070C1

ROD, unloader tube transport

1шт.

586591R1

COTTER PIN

PIN, qa cotter

1шт.

33

171516C1

HINGE, unloader tube outer

1шт.

34

627363R1

ROD, unloader tube pivot lower front

1шт.

18787R1

BOLT,Hex, 3/8"-16 x 4", G2

7/16 x 1-3/4 ZND hex-hd mach

1шт.

271501

SOCKET

NUT, 7/16 ZND hex.

2шт.

35

M4175

TURNBUCKLE, unloader tube rod

1шт.

36

587892R1

ROD, unloader tube pivot upper

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 ZND hex.

1шт.

37

939603R1

ANCHOR, unloader tube pivot rod

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 ZND hex-hd mach

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 ZND hex-hd mach

3шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.

38

CHAIN, QA cotter retainer, order 12 links of no. 1/0 .023 40 pound test chain

1шт.

39

171541C1

SUPPORT ASSY, unloader auger

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

9шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 ZND hex-hd mach

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 ZND flange lock

9шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.

40

171839C1

BRACE ASSY, unloader support

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 ZND hex-hd mch

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

4шт.

280295

LOCK WASHER,10.11mm ID x 17.63mm OD x 1.02mm Thk

2шт.

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

41

629665R92

GAUGE

SUPPORT ASSY, upper auger, includes ref no 42

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

4шт.

42

166461C1

BUSHING

upper auger support

1шт.

43

172390C1

PLATE, unloader tube transport anchor

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 ZND hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
