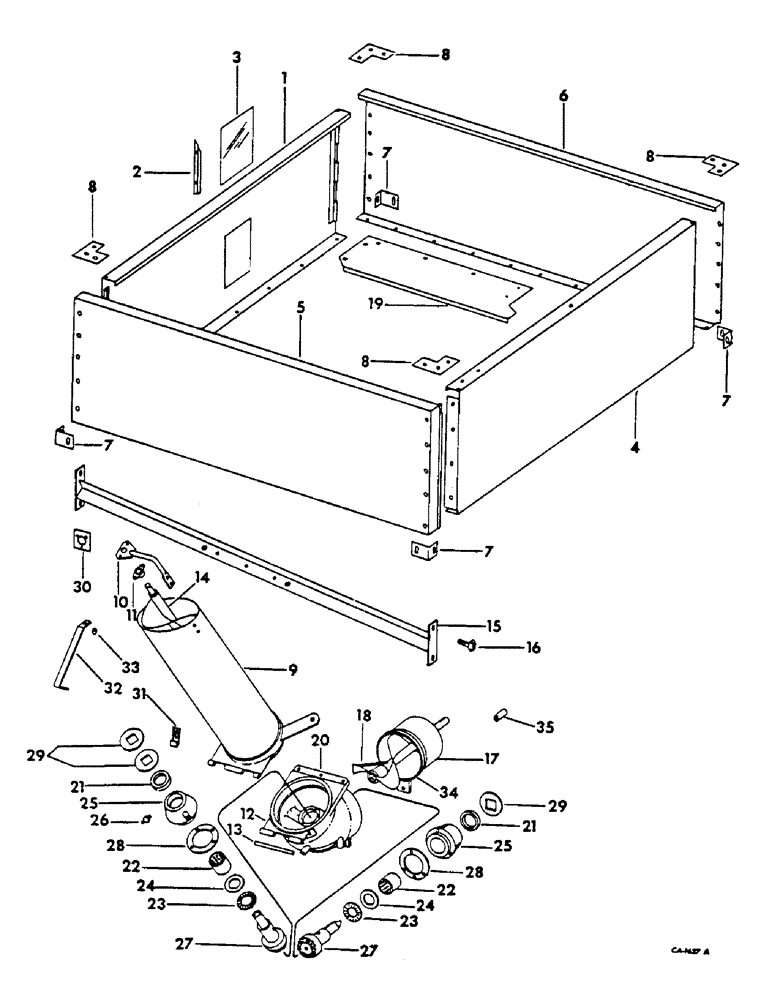

Запчасти Case IH 615 (26-09) - GRAIN TANK, GRAIN TANK EXTENSION W/INCLNED DELIVERY, 19 INCHES HIGH Grain Tank
№
Артикул
Название
Примечание
Количество
1
173233C1
SIDE ASSY, grain tank extension front
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
20шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd whiz lock
20шт.
2
150551C1
RETAINER, window
1шт.
20716R1
SCREW,Sl Pan Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-pan-hd mach
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
3
WINDOW, grain tank extension, 5-1/2 x 9-3/8 in., procure locally
1шт.
4
173237C1
SIDE, grain tank extension rear
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
18шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd whiz lock
18шт.
5
173231C1
SIDE, grain tank extension LH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
10шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
10шт.
6
173232C1
SIDE ASSY.
SIDE, grain tank extension RH
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
9шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd whiz lock
9шт.
7
173239C1
BRACKET, grain tank extension corner
4шт.
8
173240C1
STIFFENER, grain tank extension corner
4шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
12шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z slt-truss-hd
12шт.
9
159856C91
ELEVATOR TUBE
TUBE ASSY, grain upper elevator
1шт.
180173
BOLT,Hex, 1/2" - 13 x 1", Gr 5
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
10
939591R91
SUPPORT
ASSY, grain upper elevator auger
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 ZND sq-nk crg
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
11
382508R91
BEARING ASSY,0.752" ID x 0.81"
BEARING, grain elevator upper auger
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 ZND hex-hd mach
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
12
939579R91
HINGE ASSY, grain upper elevator tube
1шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
13
939578R1
PIN, grain upper elevator tube hinge
1шт.
14
939582R91
AUGER
ASSY, grain upper delivery
1шт.
17132R1
LOCK PIN,1/4" x 1", Slotted
PIN, 1/4" x 1", Slotted
1шт.
15
939575R91
SUPPORT ASSY, grain upper delivery
1шт.
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
3/8 flange lock
4шт.
17
939589R1
PIPE ASSY, grain tank distributor auger, includes ref no. 34
1шт.
16888R1
HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2
BOLT, 5/16 x 1-1/4 ZND sq-nk crg
3шт.
120376
NUT,5/16"-18, G5
3шт.
106900
RIVET,Truss Hd, 1/4" x 3/4"
6шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
619855R1
WASHER
11/32 x 3/4 x 16 ga
3шт.
18
171756C1
AUGER
ASSY, grain tank distributor lower
1шт.
19
939593R1
COVER, grain tank
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 ZND sq-nk crg
4шт.
120376
NUT,5/16"-18, G5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
20
606707R1
ELBOW, grain upper elevator
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 ZND hex-hd mach
2шт.
18495R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
3/8 x 1-1/4 C-Z hex-hd mach
1шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
21
607145R91
OIL SEAL
grain upper elevator bevel gear oil
2шт.
22
607148R91
ROLLER BEARING,1.375" ID x 1.7505" OD x 1"
grain upper elevator bevel gear needle
2шт.
23
607146R91
THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W
grain upper elevator bevel gear thrust needle
2шт.
24
607147R1
WASHER
RACE, grain upper elevator bevel gear thrust brg
2шт.
25
606709R1
HUB
COLLAR, grain upper elevator bevel gear lkg
2шт.
20483R1
HEX SOC SCREW,5/16"-18 x 3/4"
SCREW, 5/16 x 3/4 C-Z hex-soc-hd cap
6шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
6шт.
26
16982R91
FITTING
1/4-28 NF str lub
1шт.
27
606710R1
GEAR
grain upper elevator bevel
2шт.
28
606711R1
GASKET
SHIM, bevel gear lkg collar
6шт.
28
936654R1
GASKET,0.51mm Thk
SHIM, bevel geawr lkg
2шт.
29
606712R1
SQ HOLE WASHER
grain upper elevator and distributor auger
3шт.
30
626582R1
COVER
grain tank leveling auger brg opening
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 ZND sq-nk crg
3шт.
120376
NUT,5/16"-18, G5
3шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
31
151061C1
STRIP, grain elevator upper tube hold down, serial no. 8000 and below
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 ZND sq-nk crg
3шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
178373R1
WASHER
17/32 x 1 x 16 ga C-Z
3шт.
32
172584C1
BRACE, grain upper elevator support
1шт.
18765R1
BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2
5/16 x 1-1/2 ZND hex-hd mach
1шт.
18495R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
3/8 x 1-1/4 ZND hex-hd mach
1шт.
120376
NUT,5/16"-18, G5
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
178372R1
WASHER
13/32 x 1-1/4 x 16 ga C-Z
4шт.
33
23323H
SPACER,1/4" Pipe x 1/2"
1/4 x 1/2 std pipe
1шт.
18653R1
BOLT,Hex, 1/4" - 20 x 1/2", Gr 2
1/4 x 1/2 C-Z hex-hd mach
2шт.
18654R1
BOLT,Hex, 1/4" - 20 x 3/4", Gr 2
1/4 x 3/4 ZND hex-hd mach
2шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z hex.
4шт.
445117
DIODE
1/4 spring
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/4 C-Z hex.
1шт.
34
939563R1
RING, grain tank distributor auger
1шт.
18800R1
BOLT, 7/16 x 2-1/2 hex-hd mach
1шт.
NLS
NO LONGER SERVICED
NUT, 7/16 hex.
1шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
1шт.
607891R1
WASHER
15/32 x 1 x 16 ga
1шт.
35
274716R1
SPACER, grain tank distributor auger pipe
3шт.
