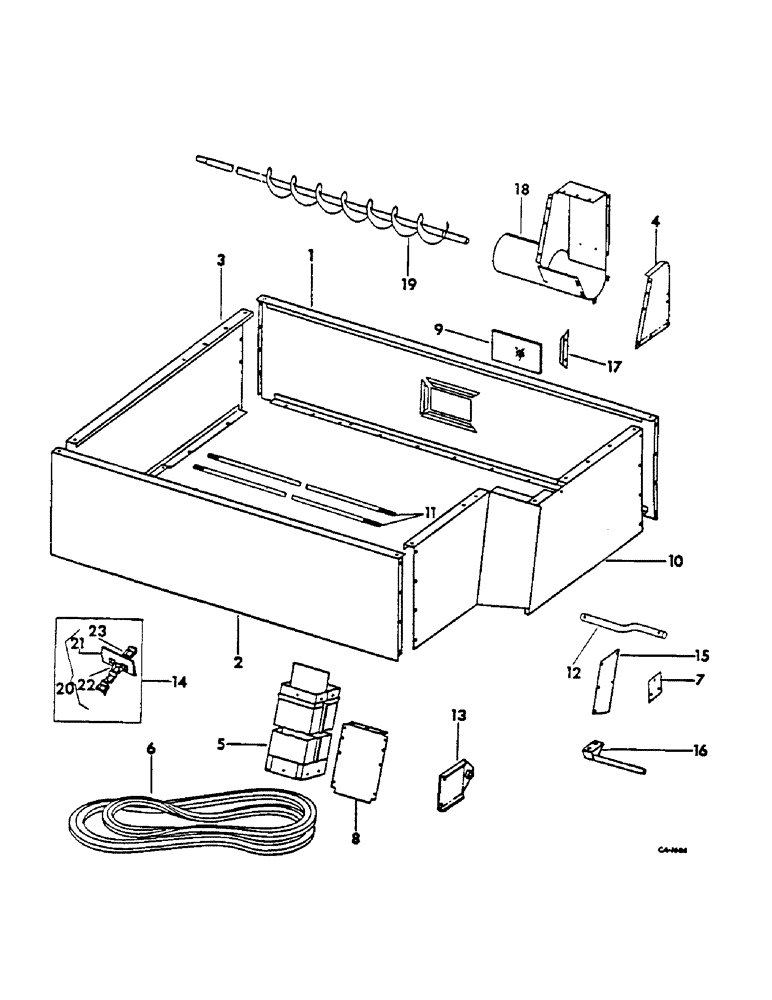

Запчасти Case IH 615 (26-07) - GRAIN TANK, GRAIN TANK EXTENSION W/RAISED, LEVELING AUGER, 19-1/2" HIGH, SER. NO. 8000 AND BELOW Grain Tank

1

172213C1

SIDE ASSY, grain tank extension front

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

18шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd type 1

2шт.

120376

NUT,5/16"-18, G5

18шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

18шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

935515R91

SIDE ASSY, grain tank extension rear

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

14шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 ZND sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

14шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

172209C1

SIDE ASSY, gr tank ext left

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

10шт.

120376

NUT,5/16"-18, G5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

4

935524R1

EXTENSION, right front side

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

7шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 x 1/2 slt-rd-hd mach

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

5

632609R91

EXTENSION ASSY, grain elevator

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

7шт.

120376

NUT,5/16"-18, G5

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

6

626589R1

BELT,0.88" W

V-BELT , Elevator drive 0.88" W

1шт.

7

626582R1

COVER

gr tank dist aug brg

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16-18 x 1/2 C-Z crg

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

8

632616R1

COVER, front filler

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4-20 x 1/2 C-Z crg

8шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 ZND sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

WINDOW, grain tank, 5-1/2 x 9-3/8 in., procure locally

1шт.

10

935518R1

SIDE ASSY, grain tank extension right

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

11

628335R1

ROD, grain tank extension side support

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

460908R1

WASHER

1/2 C-Z med lock

8шт.

12

171744C1

BRACE, grain elevator lower rear

1шт.

13

935528R91

CHANNEL ASSY, unldr dr tgtnr pulley, serial no. 2580 and below

1шт.

13

174431C1

CHANNEL ASSY, unloader idler pivot shaft, serial no. 2581 and above

1шт.

137258

COTTER PIN

3/16" x 1 3/4"

2шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga

6шт.

14

632494R91

CHAIN ASSY, grain elevator conveyor ext, includes ref nos 20, 21, 22 & 23

1шт.

15

935871R1

BRACKET, elev sprt

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16-18 x 3/4 C-Z crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

654190R91

BRACE ASSY, grain elevator lower front

1шт.

17

172212C1

STRIP, grain tank extension window

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

654892R91

TUBE ASSY, grain tank leveling auger

1шт.

19

654894R91

AUGER ASSY, grain tank leveling

1шт.

20

568169R91

CONVEYOR

FLIGHT W/PLAIN & ATTACHING LINK, includes ref. nos. 21 & 22

1шт.

558430R1

RIVET

5/16 x 19/32 ov-hd tubular

1шт.

21

564456R1

STEEL FLIGHT

FLIGHT

1шт.

22

55SE

LINK

attaching

1шт.

23

NLS

NO LONGER SERVICED

LINK, plain

1шт.
