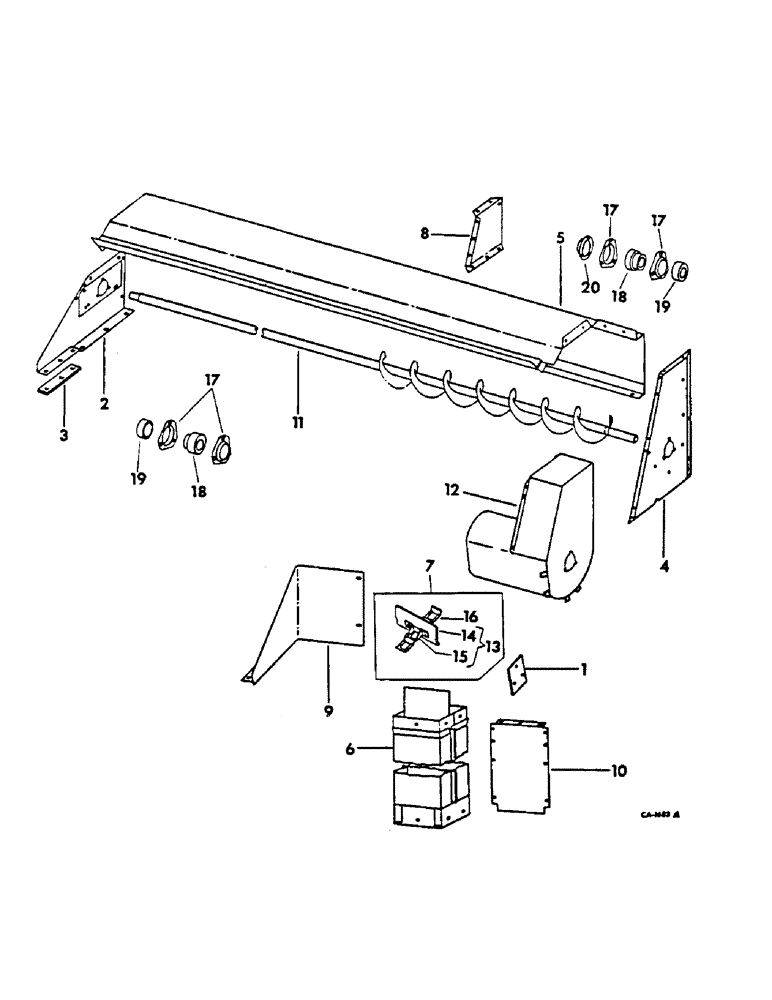

Запчасти Case IH 615 (26-04) - GRAIN TANK, GRAIN TANK RAISED LEVELING AUGER Grain Tank
№
Артикул
Название
Примечание
Количество
1
626582R1
COVER
leveling auger brg opening
2шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 ZND sq-nk crg
6шт.
120376
NUT,5/16"-18, G5
6шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
6шт.
2
654889R91
SUPPORT ASSY, leveling auger LH
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 ZND sq-nk crg
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 ZND sq--nk crg
2шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 ZND hex-hd mach
3шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
6шт.
120376
NUT,5/16"-18, G5
3шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
470-1258
SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"
1/4 x 1/2 C-Z slt-pan-hd mach
6шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
3
151299C1
STRAP, LH support filler
1шт.
4
654896R91
SUPPORT ASSY, leveling auger RH
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 ZND sq-nk crg
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 ZND sq-nk crg
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
8шт.
120376
NUT,5/16"-18, G5
2шт.
470-1258
SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"
1/4 x 1/2 C-Z slt-pan-hd mach
8шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
8шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
5
654886R91
COVER ASSY, leveling auger
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
470-1258
SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"
1/4 x 1/2 C-Z slt-pan-hd mach
4шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
6
632609R91
EXTENSION ASSY, grain elevator
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk crg
5шт.
120376
NUT,5/16"-18, G5
5шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
5шт.
7
632494R91
CHAIN ASSY, grain elevator conveyor extension, includes ref. no. 14
1шт.
8
632615R1
EXTENSION, grain tank right front side
1шт.
18626R1
CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2
BOLT, 1/4 x 1/2 ZND sq-nk crg
3шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
470-1258
SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"
1/4 x 1/2 C-Z slt-pan-hd mach
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
9
935428R91
SHEET ASSY, grain tank filler
1шт.
18626R1
CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2
BOLT, 1/4 x 1/2 ZND sq-nk crg
2шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk crg
5шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
120376
NUT,5/16"-18, G5
5шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
5шт.
10
632616R1
COVER, grain tank filler
1шт.
18626R1
CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2
BOLT, 1/4 x 1/2 ZND sq-nk crg
8шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
8шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
8шт.
11
654894R91
AUGER ASSY, leveling
1шт.
12
654892R91
TUBE ASSY, leveling auger
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
2шт.
470-1258
SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"
1/4 x 1/2 C-Z slt-pan-hd
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
13
568169R91
CONVEYOR
FLIGHT W/PLAIN & ATTACHING LINK, includes ref. nos. 14 & 15
1шт.
558430R1
RIVET
5/16 x 19/32 ov-hd tubular
1шт.
14
564456R1
STEEL FLIGHT
FLIGHT
1шт.
15
55SE
LINK
steel chain attaching
1шт.
16
NLS
NO LONGER SERVICED
LINK, steel chain plain
1шт.
17
455965R91
BALL BEARING,1.0005" ID x 52 mm OD x 15 mm
leveling auger ball
2шт.
18
455102R11
COLLAR
W/SET SCREW, locking
2шт.
127782
SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt
2шт.
19
571424R1
FLANGE
leveling auger
1шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
6шт.
120376
NUT,5/16"-18, G5
9шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
6шт.
20
606695R1
COVER
SHIELD, leveling auger bearing
1шт.
Выбрано товаров: 67
