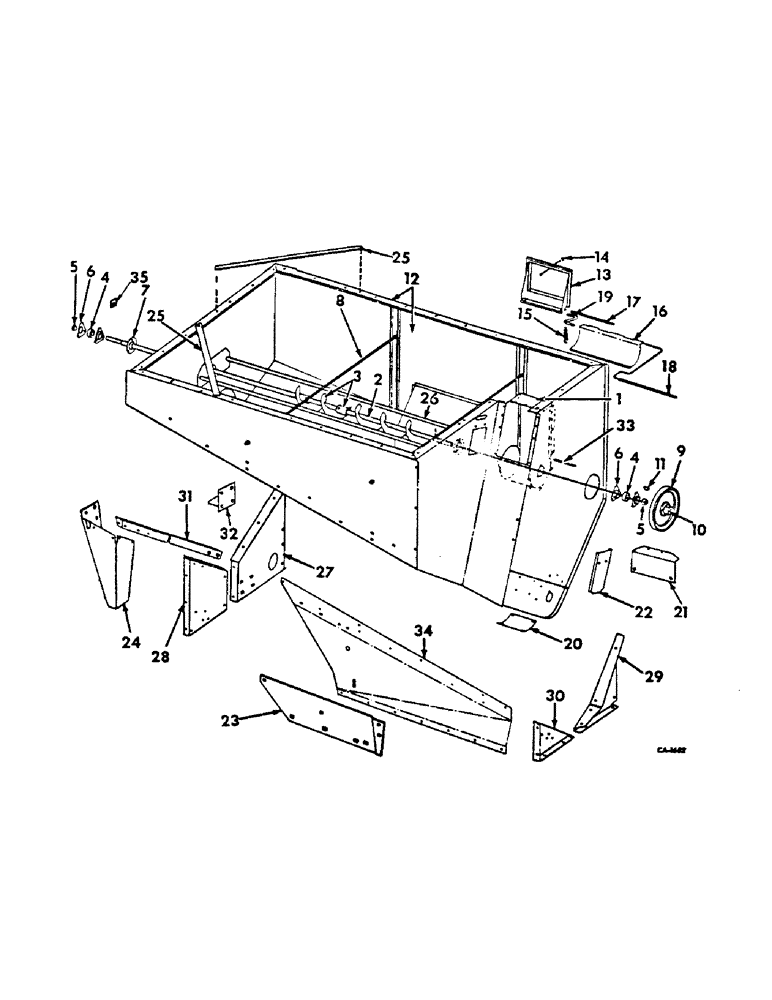

Запчасти Case IH 615 (26-02) - GRAIN TANK, GRAIN TANK AND SUPPORTS Grain Tank

1

629647R91

TUBE ASSY, leveling auger, not for use w/inclined delivery auger, serial number 12000 and below

1шт.

1

171760C1

TUBE ASSY, leveling auger, for use w/inclined delivery auger

1шт.

2

628336R91

AUGER ASSY, leveling, serial number 12000 and below

1шт.

3

627122R91

AUGER

EXENSION ASSY, leveling auger, serial number 12000 and below

1шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

7/16-14 C-Z hex. jam

2шт.

21228R1

SCREW, 7/16 x 3/4 C-Z sq-hd cup-pt set

2шт.

4

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

grain tank leveling auger

2шт.

5

455102R11

COLLAR

W/SET SCREW, lkg

2шт.

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

2шт.

6

571424R1

FLANGE

leveling auger brg

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

7

606695R1

COVER

SHIELD, leveling auger brg

2шт.

8

631370R1

ROD, support

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

9

PULLEY ASSY, leveling auger driven, 10-1/2 in. OD, serial no. 8000 and below, refer to group 25 under elevator drive unit for listing

1шт.

10

HUB, leveling auger driven pulley, refer to group 25 under elevator drive unit for listing, serial no. 8000 and below

1шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, 5/16 x 1 ZND hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

5/16 ZND hex jam

2шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 3/4 C-Z sq-hd cup-pt set

2шт.

11

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

12

171530C1

TANK ASSY, grain, includes ref nos 13 thru 19

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

13шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 ZND hex-hd mach

1шт.

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8 x 1 hex-hd whiz lock

2шт.

22882R1

BOLT,Hex, 1/2"-13 x 3/4", G2

1/2 x 3/4 hex-hd

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z hex. whiz lock

7шт.

564266R1

NUT

5/16-18 weld

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z hex. whiz lock

5шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd whiz lock

7шт.

114697

SCREW,Slotted Rd Hd, 3/8"-16 x 1/2"

3/8 x 1/2 rd-hd slt-mach

2шт.

21126R1

SCREW, 3/8 x 5/8 ZND slt-pan-hd mach

2шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 1 ZND flange lock

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

13

633649R91

DOOR ASSY, tailings inspection, includes ref no. 14

1шт.

633712R1

RIVET

1шт.

14

587056R1

KNOB, inspection door

1шт.

15

Z1259

SPRING

tailings inspection door

1шт.

18628R1

BOLT,Short NK, 1/4"-20 x 1 1/4", G2

1/4 x 1-1/4 ZND sq-nk crg

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

16

633667R91

VALVE ASSY, tailings delivery

1шт.

17

634523R1

ROD, inspection door hinge

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

18

U17024

PIN

ROD, valve

1шт.

19

633230R1

ROD, auger valve control

1шт.

20

627116R1

COVER

DOOR, clean out

1шт.

172451

SELF-TAP SCREW,Hex Hd, 5/16" x 5/8"

SCREW, 5/16 x 5/8 ZND hex-hd type D tap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

4шт.

21

628334R1

DOOR, grain elevator tank

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z hex-whiz lock

4шт.

564791R1

SPRING NUT

1/4 speed

2шт.

144824

SCREW, 1/4 x 3/4 C-Z slt-pan-hd type A

2шт.

22

629662R1

DOOR, grain elevator head shaft brg

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 ZND sq-nk crg

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 ZND flange lock

2шт.

23

174004C1

REINFORCEMENT, grain tank

1шт.

24

171749C1

BRACE ASSY, grain tank

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 ZND sq-nk crg

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga C-Z

7шт.

25

939602R1

BRACE, grain tank

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 ZND hex-hd mach

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

26

633464R1

PIPE, support rod

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

27

171745C1

BRACKET ASSY, left front support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 ZND sq-nk crg

5шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 ZND hex-hd cap

3шт.

28

629494R1

BRACKET, left rear support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 ZND sq-nk crg

9шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 ZND sq-nk crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

29

170987C11

BRACKET ASSY, right front support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

5шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

30

629497R1

BRACKET, right rear support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 ZND sq-nk crg

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

31

173573C1

SUPPORT ASSY, grain tank bottom

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z hex-whiz lock

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

172487

SCREW,Hex, 3/8" - 16 x 1"

3/8 x 1 ZND hex-hd type D

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga

2шт.

32

172269C1

SUPPORT ASSY, deck brace

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 ZND sq-nk crg

6шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

33

628335R1

ROD, side support

2шт.

34

937925R1

SUPPORT, grain tank rear

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

11шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

35

628535R1

SHIM

grain tank leveling auger brg shield, for use on machines equipped w/grain tank extension

3шт.
