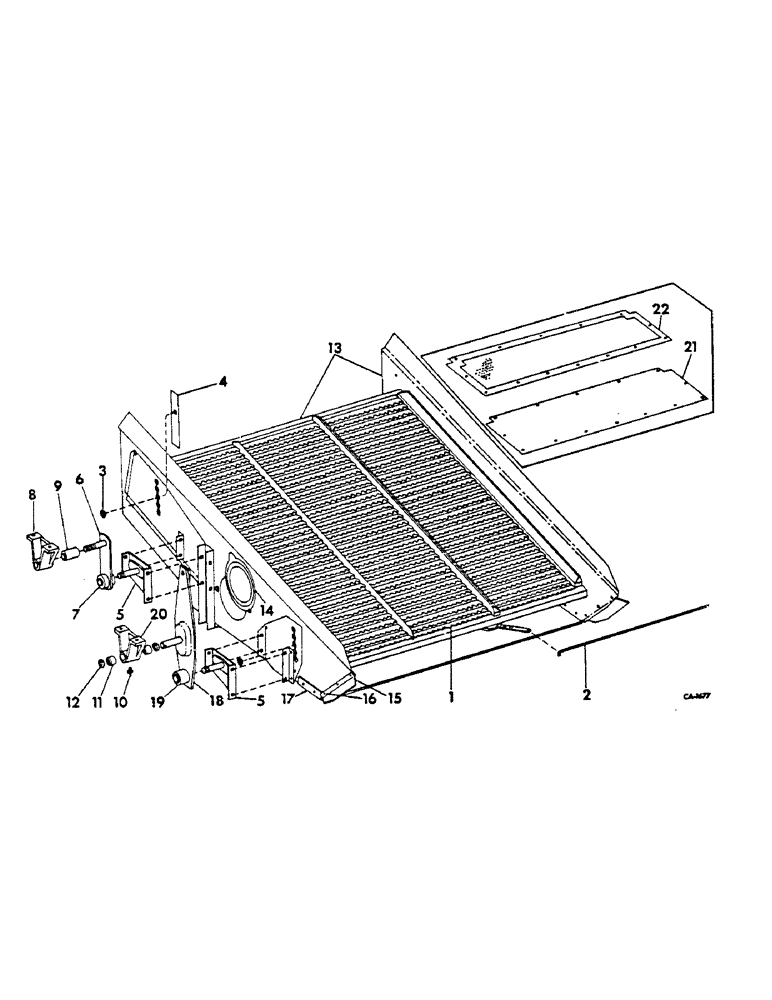

Запчасти Case IH 615 (23-08) - GRAIN PAN, SHOE AND SHOE SIEVE, SHOE AND SHOE SIEVE Grain Pan, Shoe & Shoe Sieve

1

588816R92

SIEVE ASSY, shoe

1шт.

1

568358R91

SIEVE ASSY, shoe, 1/10 in. ID holes

1шт.

1

570157R91

SIEVE ASSY, shoe, 7/32 in. ID holes

1шт.

1

574020R91

SIEVE ASSY, shoe, 3/8 in. ID holes

1шт.

1

567973R91

SIEVE ASSY, shoe, 1/2 in. ID holes

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

18974K

ROD

shoe sieve adj

1шт.

586591R1

COTTER PIN

PIN, qa cotter

1шт.

3

569946R1

WASHER

shoe sieve adj

4шт.

4

564207R1

BAR

SEAL, shoe sieve

4шт.

5

631478R91

HANGER

ASSY, shoe lower left

2шт.

5

631479R91

SUSPENSION BLOCK

HANGER ASSY, shoe lower right

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z crg

16шт.

120376

NUT,5/16"-18, G5

16шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

4шт.

6

627720R91

CLAMP

ARM ASSY, shoe front hanger, included ref no 7

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

2шт.

7

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

arm hub

2шт.

8

627717R11

BRACKET ASSY, shoe hanger front LH, includes ref no 9

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

170953C11

BRACKET ASSY, shoe hanger front RH, includes ref no 9

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

1шт.

18790R1

BOLT

3/8 x 1-3/4 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

142619H

WASHER

13/32 x 3/4 x 11 ga C-Z

1шт.

9

627719R91

COMPOSITE RING

BUSHING, shoe front hanger arm bracket

2шт.

10

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 NF str lub

2шт.

11

629631R91

NEEDLE BEARING

BEARING, needle shoe rear hngr

4шт.

12

629632R91

RETAINER

SEAL, shoe rear hngr oil

4шт.

13

564180R91

SHOE ASSY, not edible bean

1шт.

13

574099R91

SHOE ASSY, for edible bean, includes ref nos 14, 15, 16 and 17

1шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga

1шт.

14

551104R1

FLAP

DOOR, shoe inspection

2шт.

15

564205R1

SEAL

side rear

2шт.

16

564206R1

STRIP, rear seal

2шт.

Q3574

RIVET, 9/64 x 9/32 ov-hd tubular

4шт.

12291R1

RIVET, 9/64 x 5/16 ov-hd tubular

3шт.

135330

SHIELD

RIVET, 1/4 x 7/16 truss-hd

1шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga C-Z

1шт.

17

564196R1

SEAL, lower rear

2шт.

18

627565R91

ARM

ASSY, grain pan and shoe rear hanger, includes ref no 19

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

22189R1

WASHER, 23/32 x 1 x 16 ga C-Z

4шт.

19

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

hanger arm hub

2шт.

20

629644R1

BRACKET

shoe hanger rear

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

21

567923R1

SCREEN, shoe bottom, edible bean

1шт.

120619

NUT

no. 10 C-Z sq

14шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10 x 1/2 C-Z slt-pan-hd mach

14шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

14шт.

607893R1

WASHER

13/64 x 1/2 x 16 ga C-Z

14шт.

22

567922R1

COVER, shoe bottom, edible bean

1шт.
