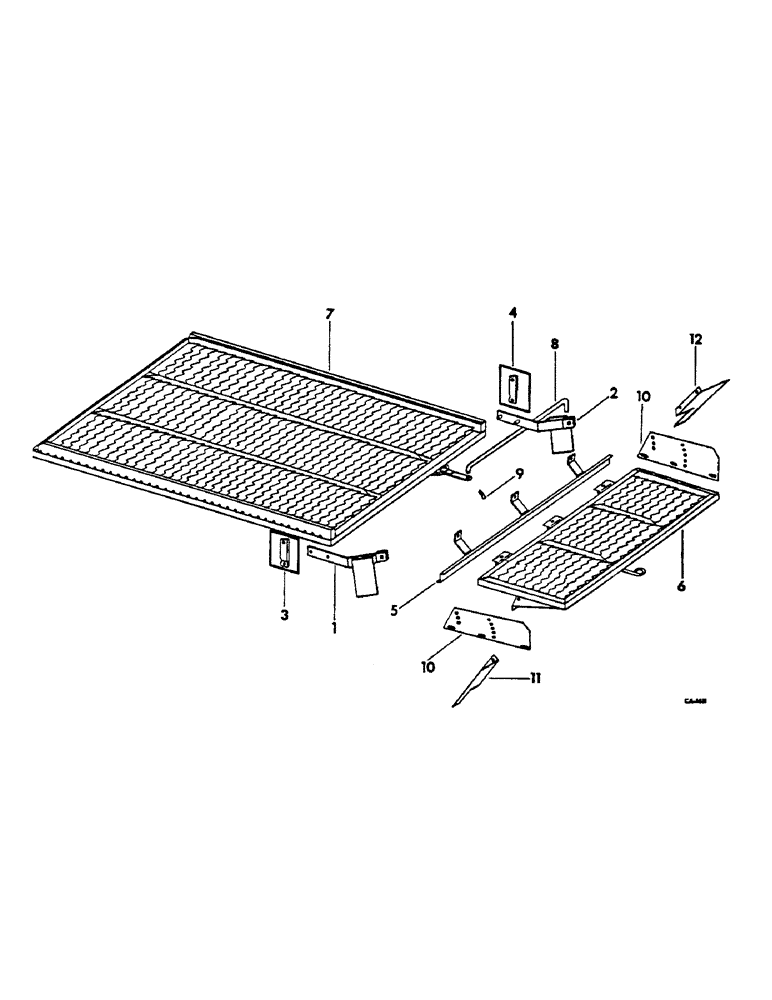

Запчасти Case IH 615 (23-07) - GRAIN PAN, SHOE AND SHOE SIEVE, CHAFFER SIEVE AND EXTENSION Grain Pan, Shoe & Shoe Sieve

1

627834R93

SUPPORT

BRACKET ASSY, chaffer sieve adj left

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1-1/4 hex-hd

1шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 znd nylon insert pervailing torque

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .34 x .69 x .06 C-Z

2шт.

21739R1

WASHER

11/32 x 9/16 x 16 ga C-Z

2шт.

120394

WASHER,3/8", SAE

WASHER, .41 x .81 x .06 C-Z

1шт.

2

627835R93

BRACKET ASSY, chaffer sieve adj right

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd mach

1шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 znd nylon insert prevailing torque

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .34 x .69 x .06 C-Z

2шт.

12739R1

WASHER, 11/32 x 9/16 x 16 ga C-Z

2шт.

120394

WASHER,3/8", SAE

WASHER, .41 x .81 x .06 C-Z

1шт.

3

632728R1

BLOCK

chaffer sieve seal left

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

632729R1

BOARD

BLOCK, chaffer sieve seal right

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

5

631618R91

DEFLECTOR ASSY, chaffer sieve blast

1шт.

6

172223C1

SIEVE ASSY, chaffer extension, 1-1/8 inch slat

1шт.

6

172224C1

SIEVE ASSY, chaffer extension, 1-5/8 for corn slat type

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

442809

NUT, 1/4 hug lock

2шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 pan-hd slt mach

2шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4-20 x 1/2 slt-rd-hd

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

6шт.

7

564293R93

SIEVE ASSY, chaffer

1шт.

7

574563R92

SIEVE ASSY, chaffer, Peterson type

1шт.

7

936021R92

SIEVE ASSY, chaffer, closz slat type, 1-5/8 closz slat type

1шт.

7

936256R92

SIEVE ASSY, chaffer, corn slat type, 1-5/8 corn slat type

1шт.

7

588398R91

SIEVE ASSY, chaffer 7/16 x 15/16 slot hole, parts accessory

1шт.

8

18974K

ROD

chaffer sieve adj

1шт.

9

586591R1

COTTER PIN

PIN, qa cot.

1шт.

10

172636C1

SIDE ASSY.

SIDE, chaffer sieve extension

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

6шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

6шт.

11

172637C1

SEAL, chaffer sieve extension LH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

2шт.

12

172638C1

SEAL, chaffer sieve extension RH

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

2шт.
