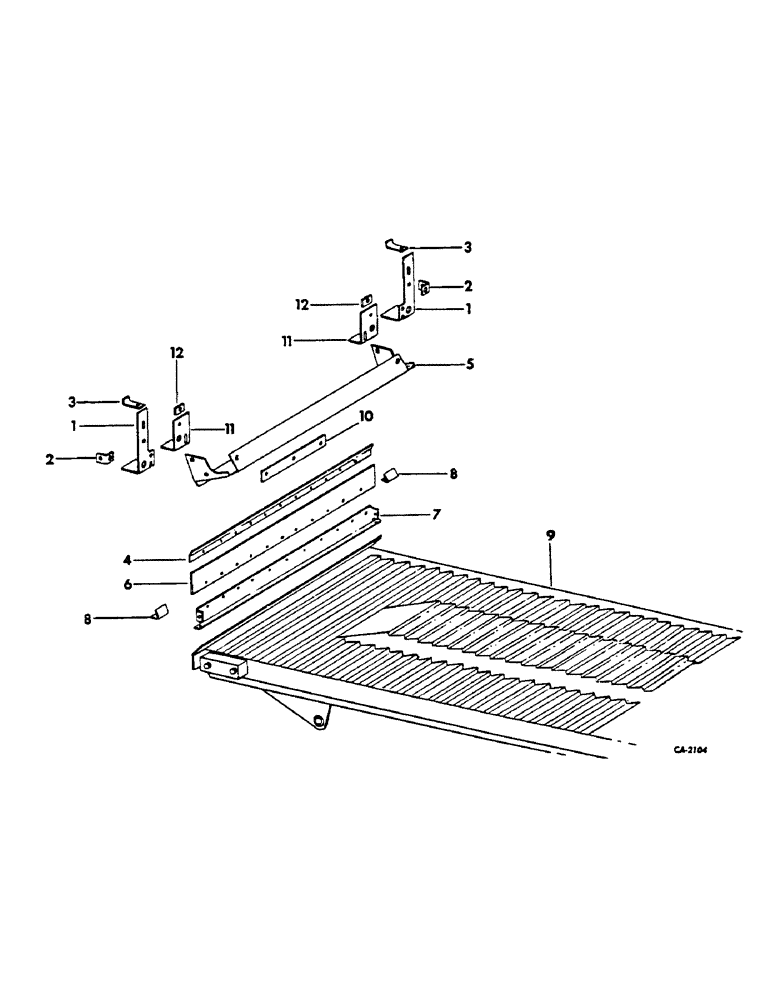

Запчасти Case IH 615 (23-05) - GRAIN PAN, SHOE AND SHOE SIEVE, CONCAVE SEAL AND GRAIN PAN, RELATED PARTS Grain Pan, Shoe & Shoe Sieve

1

174538C1

SEAL

concave linkage, for stone retarder

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

2шт.

564266R1

NUT

5/16 weld

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

436734

SCREW,Slotted Pan Hd, #10-24 x 3/4"

no. 10-24 x 3/4 C-Z slt-pan-h mach

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

8шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

607893R1

WASHER

13/64 x 1/2 x 16 ga C-Z

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

174539C1

ANGLE

concave linkage seal, for stone retarder

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

174540C1

RETAINER

concave linkage seal, for stone retarder

2шт.

4

564131R1

STRAP, grain pan front seal

1шт.

NLS

NO LONGER SERVICED

1/4 spring

8шт.

22708R1

SCREW, 1/4 x 3/4 slt-pan-hd mach

8шт.

5

171582C1

PLATE, grain pan front seal

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-hd crg

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

564130R1

SEAL

grain pan front

1шт.

7

629639R1

TIE, grain pan front cross

1шт.

135287

RIVET,Truss Hd, 3/16" x 9/16"

3/16 x 9/16 wagon box-hd

4шт.

222371

WASHER, 13/64 x 3/4 x 16 ga C-Z

2шт.

8

172760C1

SEAL, concave linkage, serial no. 2580 and below

2шт.

564266R1

NUT

5/16 tab weld

2шт.

25409R1

SCREW, 5/16 x 3/8 C-Z pan-hd slt mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

PAN ASSY, grain, refer to grain pan, shaker shaft and drive this unit for listing

1шт.

10

174603C1

STRIP, front seal reinforcement, not stone retarder, serial number 12000 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

3шт.

11

174855C1

SEAL

concave linkage, not stone retarder, serial number 2581 and above

2шт.

564266R1

NUT

5/16 C-Z weld

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

11

174541C1

SEAL

concave linkage, serial number 2580 and below, not stone retarder

2шт.

12

559553R1

RETAINER

concave linkage seal, not stone retarder

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

3шт.
