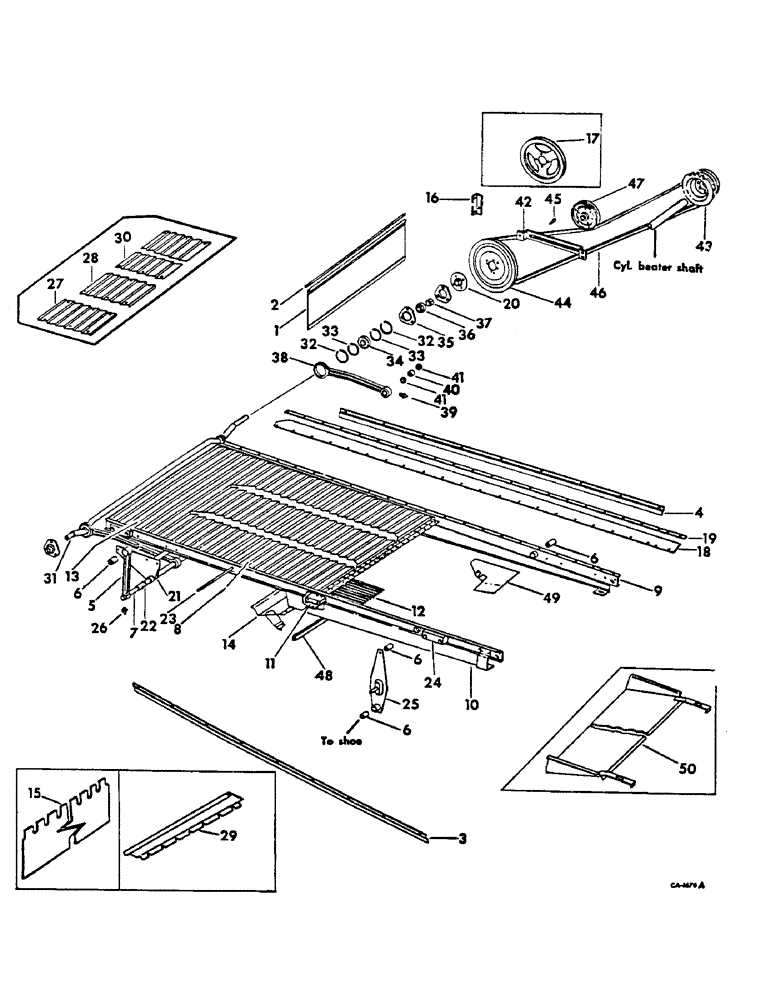

Запчасти Case IH 615 (23-02) - GRAIN PAN, SHOE AND SHOE SIEVE, GRAIN PAN, SHAKER SHAFT AND DRIVE Grain Pan, Shoe & Shoe Sieve

171818C91

PARTS ACCESSORY, fast speed shaker shaft drive, includes ref. nos. 45 and 56

1шт.

171819C91

PARTS ACCESSORY, slow speed shaker shaft drive, includes ref. nos. 20, 44 & 46

1шт.

1

565470R21

FLAP

ASSY, sep grain pan check

1шт.

2

UA12470

ROD, separator check flap

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

3

627773R11

STRIP

ASSY, grain pan seal cover left

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

9шт.

4

171546C11

STRIP ASSY, grain pan seal cover right

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

9шт.

5

156063C11

ARM

ASSY, grain pan front hanger, includes ref no 6

2шт.

18825R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 2

5/8 x 2-3/4 hex-hd mach

2шт.

9413969

NUT,5/8"-11, GB

5/8 hex. torque lock

1шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

6

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

6шт.

7

628135R1

SHAFT, grain pan

1шт.

517843R1

COTTER PIN

PIN, 3/16 qa cotter

2шт.

21885R1

WASHER

1-1/32 x 2 x 16 ga C-Z

2шт.

8

155973C91

PAN ASSY, grain, not edible bean, serial no. 8000 and below, for edible bean, serial no. 8001 and above

1шт.

8

172942C91

PAN ASSY, grain, edible bean, serial no. 8000 and below, includes ref nos 6, 9 thru 14, 18, 19, 21 thru 24 and 48, also includes ref nos 6, 8 and 9 listed under concave seal and grain pan related parts this group

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

271750

WASHER

SCREW, 5/8 x 2-1/2 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

619815R1

WASHER, 13/32 x 1 x 16 ga

1шт.

120394

WASHER,3/8", SAE

WASHER, .41 x .81 x .06 C-Z

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

1шт.

9

629579R94

RAIL

ASSY, right side, includes ref no 6

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 ZND hex-hd type 8

6шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1-3/4 sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

21333R1

NUT,3/8"-16, G8

3/8 hex. type 8

12шт.

414-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

SCREW, 5/8-18 x 2-1/2 C-Z hex-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

6шт.

120394

WASHER,3/8", SAE

WASHER, .41 x .81 x .06

9шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

1шт.

10

629578R94

RAIL ASSY, left side, includes ref no. 6

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8 x 1.3/4 sq-nk crg

8шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 ZND hex-hd type 8

6шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

21333

NUT, 3/8 hex. type 8

12шт.

271750

WASHER

SCREW, 5/8-18 x 2-1/2 C-Z hex-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

6шт.

120394

WASHER,3/8", SAE

WASHER, .41 x .81 x .06

9шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

1шт.

11

632691R1

SUPPORT, finger

1шт.

172431

SCREW,Hex, 1/4" - 20 x 3/4"

BOLT, 1/4 x 1/2 hex-hd

6шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

155214C1

FINGER

grain pan

15шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

30шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z slt-truss-hd

15шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z slt-truss-hd

15шт.

13

632695R91

BOTTOM

ASSY, grain pan, not edible bean, serial no. 8000 and below, for edible bean, serial no. 8001 and above

1шт.

13

632972R91

BOTTOM ASSY, grain pan, edible bean, serial no. 8000 and below

1шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 C-Z hex-hd mach

21шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

21шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

21шт.

14

631192R91

PLATE ASSY, grain pan center seal

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

BOLT, 5/16 x 3/4 C-Z hex-hd tap

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

654915R1

COVER, grain pan finger

1шт.

16

632924R1

ANCHOR, shaker shaft drive belt tightener pulley support

1шт.

17

628503R1

PULLEY, shaker shaft driven, 11-5/8 in. OD, fast speed, serial no. 8000 and below

1шт.

18

564132R1

SEAL

pan side rail

2шт.

19

568248R1

BAR

STRAP, side rail seal

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4-20 x 1/2 washer face hex-hd

46шт.

20

564695R1

HUB, shaker shaft driven pulley, not edible bean

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 ZND hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20

568928R1

HUB, shaker shaft driven pulley, slow speed, parts accessory

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 ZND hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

21

654550R91

SUPPORT ASSY, grain pan front, includes ref no 22

1шт.

22

559154R1

BUSHING,25.45mm ID x 28.6mm OD x 25.4mm L

front supt hub

4шт.

23

568284R1

ROD, pan cross tie

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

24

552883R2

STOP

BLOCK, gr pan

4шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

3/8 x 1-1/4 hex-hd

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

6шт.

25

627565R91

ARM

ASSY, gr pan & shoe rear hngr, includes ref no 6

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

22189R1

WASHER, 23/32 x 1-1/2 x 16 ga C-Z

8шт.

26

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

2шт.

27

632968R1

COVER, grain pan bottom rear LH

1шт.

27

632969R1

COVER, grain pan bottom rear RH, edible bean

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 ZND hex-hd mach

12шт.

445117

DIODE

1/4 spring

12шт.

28

570683R1

COVER, grain pan bottom rear center, edible bean

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 ZND hex-hd mach

6шт.

NLS

NO LONGER SERVICED

1/4 spring

6шт.

29

150161C11

EXTENSION, grain pan wind seal, parts accessory

1шт.

30

569961R1

COVER, grain pan bottom front, edible bean

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 ZND hex-hd mach

12шт.

445117

DIODE

1/4 spring

12шт.

31

564473R1

SHAFT SHAKER

1шт.

32

359894R1

RING, SNAP

SNAP RING, grain pan pitman brg

4шт.

33

UA20551

RING

SNAP RING, grain pan pitman brg

4шт.

34

554553R91

BALL BEARING,45mm ID x 75mm OD x 16mm W

shaker shaft pitman ball

2шт.

35

571424R1

FLANGE

SHKR SFT BRG

4шт.

36

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

BALL

2шт.

37

455102R11

COLLAR

ASSY LKG W/SET SCREW

2шт.

38

150830C11

PITMAN

W/BRG & OIL SEAL, shaker shaft, includes ref nos 40 and 41

2шт.

39

16964R91

FITTING

1/4-28 90 deg lub

2шт.

40

584164R91

NEEDLE BEARING

needle

2шт.

41

584912R91

OIL SEAL

OIL SEAL

4шт.

42

627701R1

SUPPORT, shaker shaft drive belt tightener pulley

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd

1шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

43

171470C2

SPROCKET ASSY.

PULLEY AND SPROCKET, shaker shaft drive, 7-1/16 OD and 38T

1шт.

44

564569R11

PULLEY ASSY.

PULLEY ASSY, shaker shaft driven, 12-3/4 in. OD, not edible bean

1шт.

44

553412R91

PULLEY ASSY, shaker shaft driven, 14 in. OD, edible bean, slow speed, parts accessories

1шт.

44

628503R1

PULLEY, shaker shaft driven, 11-5/8 in. OD, fast speed, serial no. 8000 and below

1шт.

45

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 x 5/16 x 2 gib

1шт.

46

13988K

V-BELT,115.23" L

Shaker Shaft Drive, Not Edible Bean 115.23" L

1шт.

46

553079R1

V-BELT,0.66" W

Shaker shaft drive, For edible bean, Slow speed, Parts accessories 0.66" W

1шт.

46

561093R1

V-BELT,0.63" W

Shaker shaft drive, Fast speed, S/N 8000 and below 0.63" W

1шт.

47

566519R91

PULLEY

ASSY, drive belt tightener, 6 in. OD

1шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

3шт.

23300R1

SQ HOLE WASHER,17/32" x 1 1/2" x .120", Sq Hole

17/32 sq x 1-102 x 11 ga

1шт.

48

564129R1

STOP, grain pan sieve front

1шт.

104066

RIVET,But Hd, 3/16" x 9/32"

3/16 x 3/8 B-hd

2шт.

106884

RIVET

3/16 x 1/2 wagon box hd

4шт.

22237R1

WASHER

13/64 x 3/4 x 16 ga C-Z

2шт.

49

564108R1

DEFLECTOR

grain pan left

2шт.

49

564109R1

DEFLECTOR

grain pan right

2шт.

50

171677C1

DEFLECTOR, chaffer sieve return pan, parts accessory

1шт.
