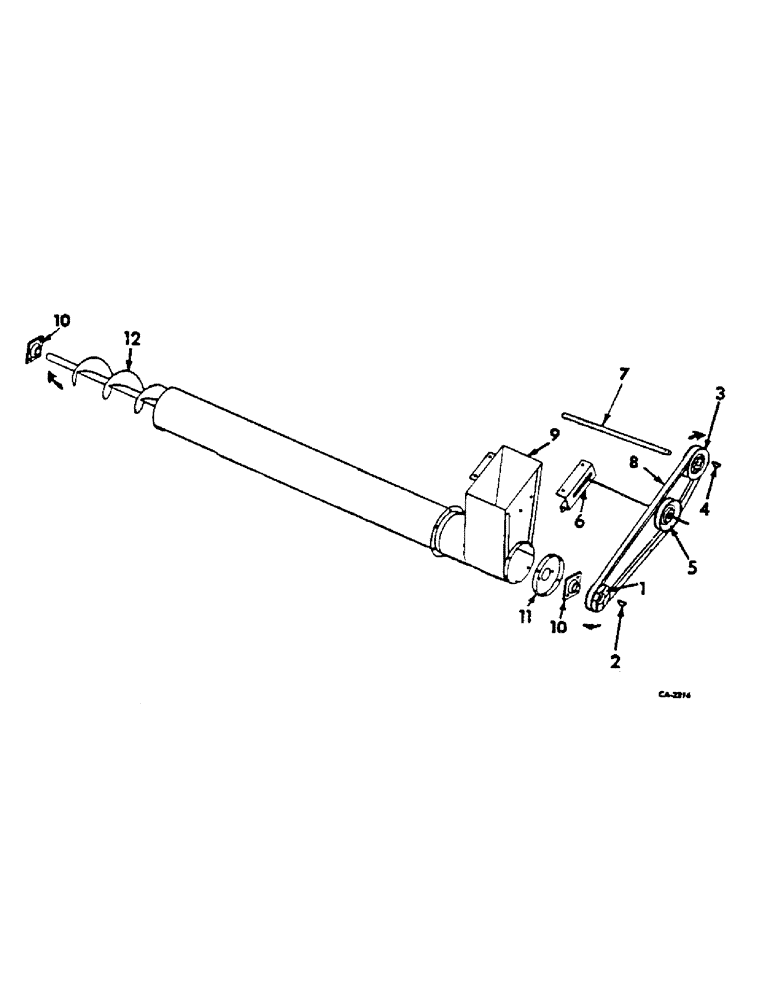

Запчасти Case IH 615 (25-10) - ELEVATORS, TAILINGS DELIVERY, DRIVE AND DOWNSPOUT Elevators

1

633282R1

SHEAVE

PULLEY, tailings dlvy aug drvn, 4 in. OD

1шт.

124824

NUT,Hex, 5/16" - 18

5/16-18 C-Z hex. jam

2шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 3/4 C-Z sq-hd cup-pt set

2шт.

2

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

KEY, 1/4 x 7/8 Woodruff hardened

1шт.

3

632830R1

PULLEY

tailings dlvy aug drv, 4-3/4 in. OD

1шт.

NLS

NO LONGER SERVICED

5/16-18 C-Z hex. jam

2шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 3/4 C-Z sq-hd cup-pt set

2шт.

4

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

5

161430C91

PULLEY

ASSY, tailings delivery auger drive belt tightener, 4-3/8 in. OD

1шт.

17148R1

BOLT,Short NK, 1/2"-13 x 2 1/4", G2

1/2 x 2-1/4 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

179374R1

WASHER, 17/32 x 1-1/4 x 16 ga

3шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

17/32 x 1-1/4 x 11 ga C-Z

2шт.

6

627323R1

BRACKET, tailings delivery auger drive belt tightener pulley

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

SHAFT, tailings elevator head, refer to tailings elevator and trough for unit listing

1шт.

8

627297R1

V-BELT,0.63" W

Tailings delivery auger drive 0.63" W

1шт.

9

627285R91

DOWNSPOUT ASSY, tlgs dlvy

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

6шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt-truss-hd

6шт.

10

631527R91

BALL BEARING

ball tailings dlvy aug

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

11

631693R1

WASHER

END, tailiings downspout tube right

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 C-Z hex-hd mach

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

12

627301R91

AUGER ASSY, tailings delivery

1шт.
