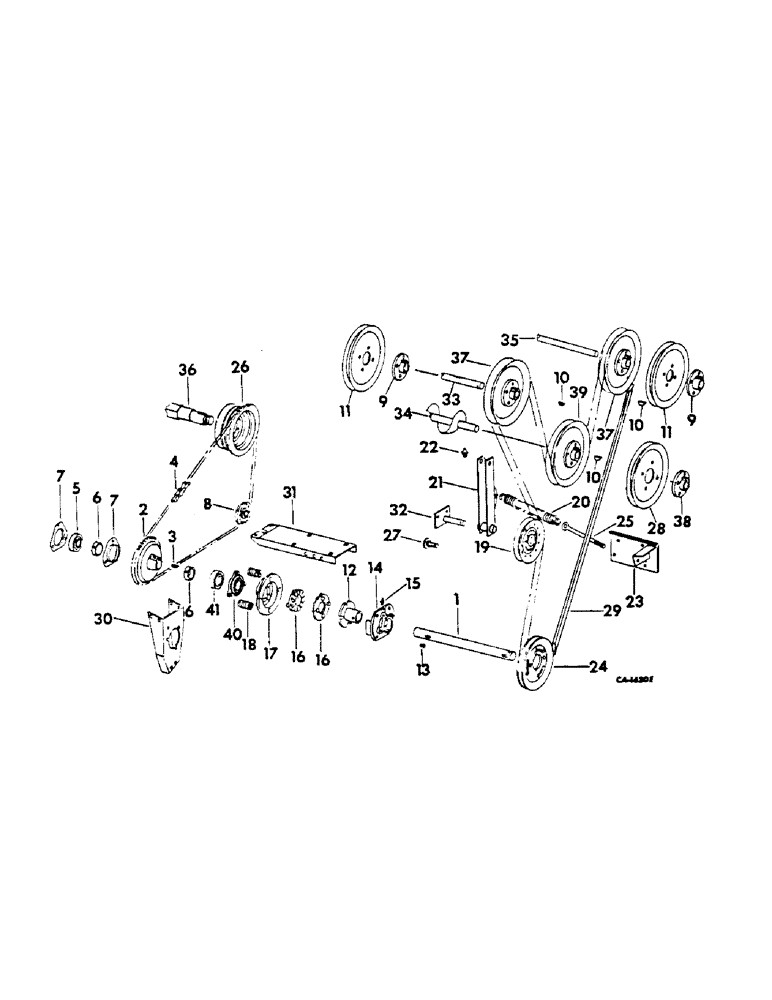

Запчасти Case IH 615 (25-06) - ELEVATORS, ELEVATOR DRIVE Elevators

1

155812C1

SHAFT

JACKSHAFT, elevator drive

1шт.

2

629166R1

SPROCKET ASSY.

SPROCKET, elevator jackshaft driven 38T

1шт.

NLS

NO LONGER SERVICED

5/16-18 C-Z hex. jam

2шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16-18 x 3/4 C-Z sq-hd cup-pt set

2шт.

3

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 Woodruff hardened

1шт.

4

CHAIN ASSY, elevator jackshaft drive roller, use 71 links from 10-ft roll marked 1791D and one connecting link 1310D

1шт.

5

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

elevator jackshaft inner ball

1шт.

6

455104R11

COLLAR

ASSY, elevator jackshaft bearing locking

2шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd cup-pt set

2шт.

7

571426R1

PLATE

FLANGE, elevator jackshaft bearing

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

8

565442R91

SPROCKET

ASSY, elevator jackshaft drive chain tightener, 17 T

1шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

17/32 x 1-1/4 x 11 ga C-Z

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

6шт.

9

939278R1

HUB

elevator driven pulley, for use w/939241R11 pulley ref no. 28, serial no. 8000 and below

1шт.

124824

NUT,Hex, 5/16" - 18

5/16-18 C-Z hex. jam

4шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16-18 x 3/4 C-Z sq-hd cup-pt set

4шт.

10

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

3шт.

11

939241R11

PULLEY ASSY.

PULLEY ASSY, elevator driven, 10-1/2 in. OD, serial no. 8000 and below, uses 939278R1 hub ref no. 9

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

12

583785R1

HOLDER

slip clutch

1шт.

17069R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

13

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 Woodruff hardened

1шт.

14

155813C1

HUB

slip clutch

1шт.

15

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

16

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch

2шт.

17

632152R2

RETAINER

slip clutch

1шт.

18

28395H

SPRING

lsip clutch

4шт.

25209R1

BOLT, 3/8 x 3-1/4 znd sq-nk crg dld

4шт.

425-126

SLOTTED NUT,3/8"-16, G5

NUT, 3/8 znd slt hex.

4шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

12шт.

19

154742C91

PULLEY

ASSY, elevator drive belt tightener, 7-1/4 in. OD

1шт.

18619R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 2

5/8 x 2-1/4 znd hex-hd mach

1шт.

169070C1

NUT

tightener pulley bolt

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

9шт.

20

384296R2

VALVE SPRING

SPRING, tightener pulley

1шт.

21

172602C1

PIVOT

ASSY, elevator drive belt tightener

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

22

16964R91

FITTING

1/4-28NS 45 deg angle lub

1шт.

23

172606C1

ANCHOR ASSY, elevator idler

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

3шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

3шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

24

172614C1

PULLEY, elevator drive, 8 in. OD

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8 x 7/8 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

25

160749C1

BOLT

draw

1шт.

271501

SOCKET

NUT, 7/16 znd hex.

2шт.

26

PULLEY, elevator jackshaft drive sprocket, shaker shaft, fan & straw rack drive, 7.06 in. OD and 38 T, refer to group 23 under grain pan shaker shaft and drive

1шт.

27

BOLT ASSY, elevator slip clutch arm switch, for use w/operators cab, refer to group 8 under wiring diagram for unit listing

1шт.

28

939241R11

PULLEY ASSY.

PULLEY ASSY, leveling auger driven, 10-1/2 in. OD, serial no. 8000 and below

1шт.

29

937928R1

V-BELT

Elevator drive, Not grain tank raise leveling auger

1шт.

29

626589R1

BELT,0.88" W

V-BELT , Elevator drive, Grain tank ext w/raised leveling auger, Serial no. 800 and below 0.88" W

1шт.

29

150434C1

V-BELT,0.88" W x 166.99" L

Elevator Drive, for Raised Leveling Auger 0.88" W x 166.99" L

1шт.

30

171012C1

SUPPORT, grain elevator drive jackshaft outer bearing

1шт.

31

629168R1

STIFFENER, grain elevator drive jackshaft outer bearing support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

6шт.

475954R1

NUT

3/8 whiz lock

10шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4 znd flange lock

4шт.

32

172610C1

PIVOT ASSY, elevator drive idler, cylinder chain drive, serial number 12000 and below

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 znd hex. whiz lock

2шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

7шт.

33

HEADSHAFT, grain elevator, refer to grain elevator and trough for unit listing

1шт.

34

AUGER ASSY, grain tank leveling, refer to group 26 under grain tank and supports for unit listing

1шт.

35

HEADSHAFT, tailings elevator, refer to tailing elevator and trough for unit listing

1шт.

36

SHAFT W/NUTS, cylinder beater, refer to group 21 under cylinder beater for unit listing

1шт.

37

174733C1

PULLEY

ASSY, elevator driven, 10-1/2 in. OD, replaces 939241R11 pulley ref no. 11 and 939278R1 hub ref no. 9

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

4шт.

84983

SET SCREW,3/8" x 1"

SCREW, 3/8 x 1 znd sq-hd cup-pt

4шт.

38

939279R1

HUB

leveling auger driven pulley, for use w/939241R11 pulley ref no. 28, serial no. 8000 and below

1шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, 5/16 x 1 znd hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

NLS

NO LONGER SERVICED

5/16 znd hex. jam

2шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 3/4 C-Z sq-hd cup-pt

1шт.

39

174734C1

PULLEY

W/HUB ASSY, leveling auger driven, 10-1/2 in. OD, replaces 939241R11 pulley ref no. 28 and 939279R1 hub ref no. 38

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 znd flange lock

2шт.

84983

SET SCREW,3/8" x 1"

SCREW, 3/8 x 1 sq-hd cup-pt

2шт.

40

174997C91

FLANGE

W/BEARING ASSY, elev jackshaft outer, includes ref no. 41

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

41

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

ASSY, elevator jackshaft outer ball

1шт.
