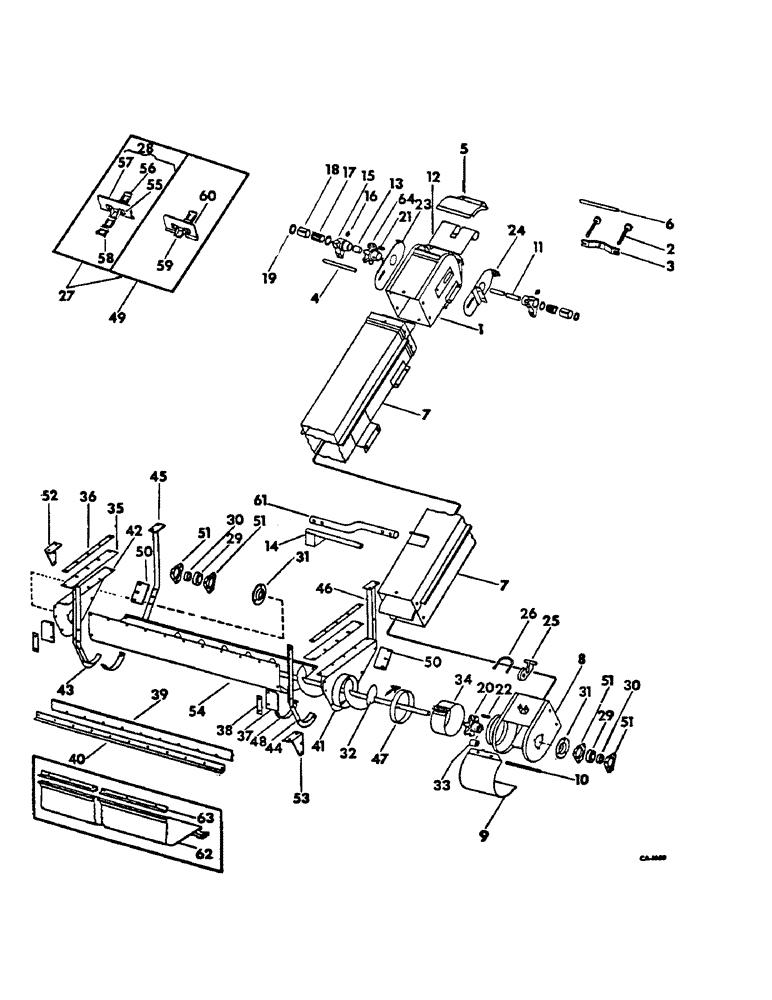

Запчасти Case IH 615 (25-02) - ELEVATORS, GRAIN ELEVATOR AND TROUGH Elevators

936451R91

PARTS ACCESSORIES, grain elevator steel flight, includes ref nos 49, 59 and 60

1шт.

1

153166C91

HEAD ASSY, grain elevator

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

1шт.

2

611421R1

BOLT,Hex, 7/16" - 14 x 3 1/2", Full Thd

GRAIN ELEV CNVR CH TGHTNR

2шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

3

936546R1

STRAP, gr elev conv ch thtnr bolt

1шт.

4

564451R1

SPACER, elev hd

1шт.

5

171652C1

DOOR, grain elevator head

1шт.

18628R1

BOLT,Short NK, 1/4"-20 x 1 1/4", G2

1/4 x 1-1/4 zn dsq-nk crg

1шт.

935735R1

WING NUT

1/4 wing

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

1шт.

6

564458R1

PIN, elevator head door hinge

1шт.

7

627943R91

HOUSING ASSY, grain elevator, serial no. 2580 and below

1шт.

7

174426C1

HOUSING ASSY, grain elevator, serial no. 2581 and above

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

10шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

10шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

10шт.

8

157144C91

BOOT ASSY, grain elevator

1шт.

9

156236C1

DOOR, elevator boot, not edible bean

1шт.

9

157169C1

DOOR, elevator boot, edible bean and perforated

1шт.

10

564457R1

PIN, elevator boot door hinge

1шт.

11

628113R1

SHAFT

gr elev head

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

25073R1

WASHER

29/32 x 1-3/4 x 22 ga C-Z

1шт.

20703R1

WASHER

29/32 x 1-3/4 x 16 ga C-Z

1шт.

12

564459R2

SHIELD

elevator headshaft

1шт.

13

553855R1

SPACER

elevator head shaft

1шт.

14

628118R91

BRACE ASSY, grain elev front, grain tank

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

631704R1

HOUSING

BOX ELEV HD SH BRG

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

16

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8 str lub

2шт.

17

562708R91

BEARING ASSY,0.875" ID x 1.378" OD x 1.75"

roller elev hd sft

2шт.

18

631735R1

SLEEVE CYLINDER

RACE ELEV HD SH BRG

2шт.

19

631734R91

OIL SEAL

elev hd brg box oil

4шт.

20

1811K

SPROCKET ASSY.

SPROCKET, auger shaft 6-T

1шт.

21

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

22

Q10

KEY,1/4" Sq x 1 3/8"

1/4 x 1/4 x 1-3/8 sq

1шт.

23

631699R91

SUPPORT

BRACKET ASSY ELEV CNVR CH TGTNR LEFT

1шт.

15330R1

BOLT, 5/16 x 6-1/4 znd sq-nk crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

1шт.

24

631700R91

SUPPORT

BRACKET ASSY ELEV CNVR CH THGTNR RIGHT

1шт.

25

155909C1

LATCH

elevator boot door

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 C-Z std-hd

1шт.

26

664360R1

BOLT,U, 1/4" - 20 x 69.65"

elevator boot door U

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 hex. w/nylon insert

2шт.

27

634717R91

CHAIN (AG)

CONVEYOR ASSY, grain elevator, not edible bean, includes ref nos 28 and 58

1шт.

27

152213C91

CONVEYOR ASSY, grain elevator, edible bean, includes ref nos 28, 49 and 58

1шт.

28

568169R91

CONVEYOR

FLIGHT ASSY, grain elevator, tire carcass, includes ref nos 55, 56 and 57

1шт.

558430R1

RIVET

5/16 x 19/32 oval hd tubular

2шт.

29

564991R91

BEARING

grain auger ball

2шт.

30

658006R11

COLLAR

ASSY LKG W/SET SCREW

2шт.

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

2шт.

31

589281R1

BRACKET

SHIELD, gr auger brg

2шт.

32

153029C91

AUGER

ASSY, grain

1шт.

21220R1

WASHER

29/32 x 1-1/4 x 11 ga

2шт.

20703R1

WASHER

29/32 x 1-3/4 x 16 ga

2шт.

33

571190R1

SPACER, grain auger shaft

1шт.

34

628069R91

EXTENSION ASSY, grain auger trough, not bean

1шт.

174602C1

BOLT, special mach

2шт.

34

628652R91

CLAMP

EXTENSION ASSY, grain auger trough, edible bean and perforated

1шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 x 1-1/4 hex-hd

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

35

564174R1

SEAL

grain auger trough side

2шт.

36

564175R1

STRAP, grain auger trough side seal

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 washer faced hex-hd cutting

10шт.

37

564176R1

SEAL

grain auger trough side rear

2шт.

38

564177R1

STRAP, gr auger trough side rear seal

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

22708R1

SCREW, 1/4 x 3/4 C-Z pan-hd slt mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120392

WASHER,1/4", SAE

.28 x .62 x .06 C-Z

2шт.

39

564172R1

SEAL, grain auger trough rear

1шт.

40

564173R1

ANGLE, grain auger trough rear seal

1шт.

41

564156R92

PLATE ASSY, grain auger trough right

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

7шт.

22705R1

SCREW, 1/4 x 1/2 C-Z pan-hd slt mach

6шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z pan-hd slt mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

42

564169R1

PLATE, grain auger trough left

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

7шт.

22705R1

SCREW, 1/4 x 1/2 znd pan-hd slt mach

6шт.

22708R1

SCREW, 1/4 x 3/4 C-Z pan-hd slt mach

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

43

628120R1

SUPPORT, grain auger trough rear left

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

44

628121R1

SUPPORT, grain auger trough rear right

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

45

628084R91

SUPPORT ASSY, grain auger trough left front

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

46

628085R91

SUPPORT ASSY, grain auger trough right front

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

47

935948R1

SEAL, grain auger trough extension, serial no. 2580 and below

1шт.

48

568328R1

BAR

SEAL, grain auger trough bottom

2шт.

49

557008R91

CONVEYOR

FLIGHT W/ATTACHING LINK, parts accessories, steel, includes ref nos 59 & 60

1шт.

104096

RIVET,But Hd, 5/16" x 5/8"

5/16 x 5/8 rd-hd solid

2шт.

50

936568R1

SEAL, grain auger trough out front

2шт.

51

571424R1

FLANGE

gr aug brg

4шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

6шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

52

628638R1

BRACKET, grain auger trough left rear

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

53

628639R1

BRACKET, grain auger trough right rear

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

54

564155R1

TROUGH

grain auger, not edible bean

1шт.

54

567917R1

TROUGH, grain auger, edible bean and perforated

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

17шт.

160541

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

1/4 x 3/4 slt-pan hd

17шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

17шт.

55

55E

LINK, steel chain attachment

1шт.

56

NLS

NO LONGER SERVICED

LINK, steel chain plain

1шт.

57

564456R12

FLIGHT, rubber

1шт.

558430R1

RIVET

5/16 x 19/32 oval, hd tubular

1шт.

58

NLS

NO LONGER SERVICED

LINK, steel chain coupler

1шт.

59

55SE

LINK

steel chain attaching

1шт.

60

557007R1

STEEL FLIGHT

FLIGHT, steel

1шт.

61

171556C1

BRACE, grain elevator lower

1шт.

18675R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

62

569954R91

COVER ASSY, grain auger trough, edible bean and perforated

1шт.

63

569959R1

ANGLE, grain trough rear cross, edible bean and perforated

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

64

168696C1

SPROCKET ASSY.

SPROCKET, elevator headshaft 7-T

1шт.
