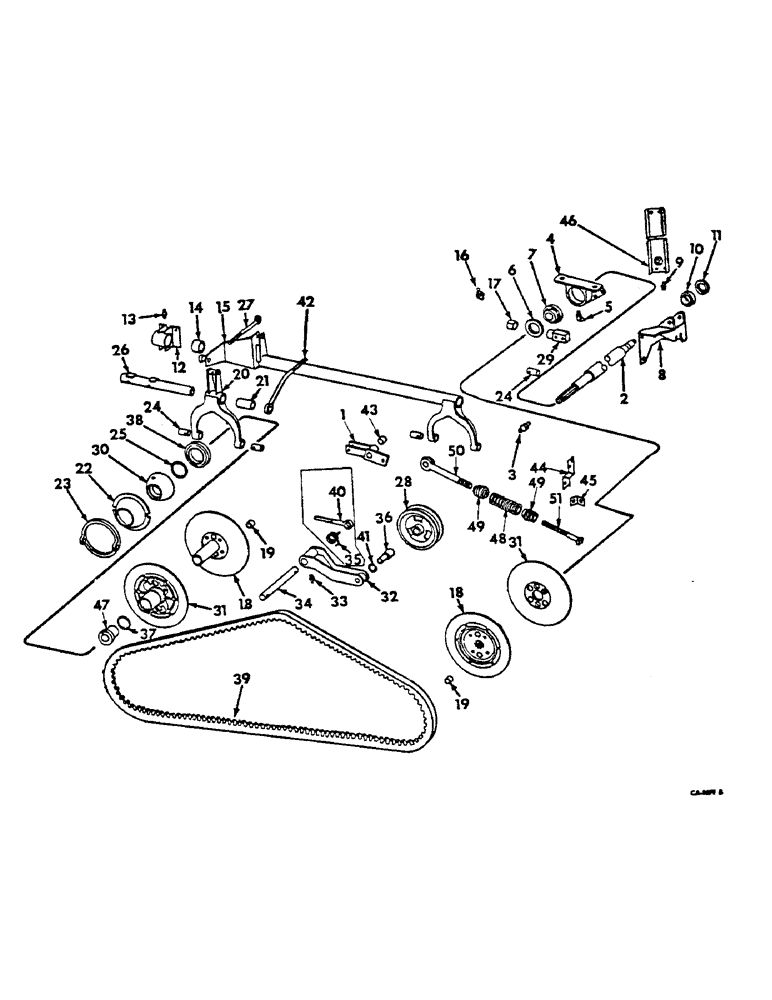

Запчасти Case IH 615 (07-21) - DRIVE TRAIN, PROPULSION DRIVE, BELT DRIVE Drive Train

1

174570C91

ARM

ASSY, tightener control, for use w/extension spring, includes ref. no. 43

1шт.

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 45 deg self tapping

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

456273R1

PIN, 3/8 x 1-3/8 znd std-hd

1шт.

23170R1

HEADED PIN,1/2" x 2 3/8"

PIN, 1/2 x 2-3/8 znd std-hd

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

2

628233R11

JACKSHAFT ASSY, propulsion

1шт.

125250

SLOTTED NUT,1/2"-20, G8

NUT, 1/2-20 NF znd slt hex.

1шт.

219760

BACK-UP RING

1-14 NF znd hex. jam

1шт.

119120

COTTER PIN,3/32" x 1 1/4"

PIN, SPLIT (COTTER), 3/32 x 1 1/4"

1шт.

22770R1

WASHER

17/32 x 1-1/2 x 7 ga C-Z

1шт.

21102R1

WASHER

1-1/32 x 2-1/4 x 11 ga C-Z

1шт.

22822R1

WASHER

1-21/32 x 2-1/2 x 16 ga C-Z

1шт.

3

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

4

627545R11

SUPPORT ASSY, propulsion jackshaft left brg, includes ref nos 6 and 7

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 90 deg angle lub

1шт.

6

631705R91

SEAL

propulsion jackshaft left brg

1шт.

7

631986R91

BALL BEARING,1.6255" ID x 85 mm OD x 1.6875"

ball propulsion jackshaft left

1шт.

8

170901C2

SUPPORT, propulsion jackshaft right brg

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 znd sq-nk crg

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NF str lub

1шт.

10

632034R91

BALL BEARING,30 mm ID x 62 mm OD x 24 mm

ASSY, propulsion jackshaft right ball

1шт.

11

632033R91

OIL SEAL

propulsion jackshaft right bearing seal

1шт.

12

565352R91

SUPPORT

BRACKET ASSY, propulsion pulley support post, includes ref no. 14

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x1 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NF str lub

1шт.

14

936744R1

BUSHING,47.66mm ID x 50.83mm OD x 19.05mm L

2шт.

15

936600R91

LEVER ASSY, propulsion, includes ref no. 17

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

21955R1

HEADED PIN,1/2" x 1 5/8"

PIN, 1/2 x 1-5/8 C-Z std-hd

1шт.

22801R1

WASHER

1-17/32 x 2 x 16 ga C-Z

2шт.

21750R1

WASHER

1-29/32 x 2-1/2 x 16 ga C-Z

1шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 NS str lub

1шт.

17

936743R1

BUSHING

2шт.

18

628706R91

PULLEY ASSY, propulsion variable speed drive, 12 in. OD, includes ref. no. 19

2шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 znd hex-hd mach

4шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 znd hex-hd mach

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

19

628704R1

BUSHING

4шт.

20

565410R91

ARM ASSY, propulsion pulley adj pivot, includes ref no. 21

1шт.

21

565414R1

BUSHING

2шт.

22

565366R1

OIL SEAL

RING, propulsion variable speed pulley adjusting outer

2шт.

23

565367R1

SHOE, propulsion var speed pulley

2шт.

441013R1

LOCK PIN,1/4" x 2 1/2", Slotted

Pin, 1/4" x 2 1/2", Slotted

4шт.

24

565345R1

SHAFT

propulsion pulley adj arm pivot

4шт.

25

565371R1

WASHER

propulsion pulley adj ring felt

2шт.

26

565416R91

SHAFT ASSY, propulsion pulley outer pivot

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2 x 2-1/2 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

22801R1

WASHER

1-17/32 x 2 x 16 ga C-Z

8шт.

27

565415R1

BOLT,1/2" - 20 x 8"

propulsion pulley adj arm connecting

1шт.

120371

NUT,1/2"-20, G5

2шт.

28

569963R1

PULLEY

propulsion drive belt tightener, 7-5/8 in. OD

1шт.

29

936749R1

SUPPORT, propulsion pulley pivot shaft

1шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2 x 3 znd hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

366864C1

LOCK WASHER,1/2"

1/2"

2шт.

30

564797R1

OIL SEAL

RING, propulsion variable speed pulley adjusting inner

2шт.

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8 C-Z sq-hd pipe

2шт.

31

574984R11

PULLEY ASSY, propulsion dr adj half, 12 in. OD

2шт.

32

629519R1

ARM, propulsion belt tightener, for use w/torsion spring, serial number 3290 and below

1шт.

32

174580C1

ARM, propulsion belt tightener, for use w/extension spring

1шт.

33

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

34

629520R1

SHAFT

propulsion belt tightener pivot

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

616252R1

LOCK PIN,3/8" x 2 1/8", Slotted

Pin, 3/8" x 2 1/8", Slotted

1шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga C-Z

1шт.

35

629521R1

SPRING

propulsion belt tightener, for use w/torsion spring, serial no. 3290 and below

1шт.

36

ST634

BEARING ASSY

propulsion belt tightener ball, serial no. 8000 and below

1шт.

36

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

ASSY, propulsion belt tightener, serial no. 8001 and above

1шт.

37

382432R1

O-RING,1.984" ID x 0.139" Width

propulsion variable speed drive pulley sheave

4шт.

38

559156R91

BEARING

ASSY, propulsion pulley adjusting ring ball

2шт.

39

173109C1

BELT,1.50" W x 93.60" L

V-BELT , Propulsion drive 1.50" W x 93.60" L

1шт.

40

559017R1

BOLT,Eye, 1/2" - 13 x 4 1/8", Full Thd

propulsion belt tightener spring, serial no 3290 and below

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

41

559203R1

SNAP RING,#118, 1.260", Int, Spiral

propulsion belt tightener

1шт.

42

936724R1

BRACE, propulsion pulley pivot shaft

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex.

2шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8 x 1-3/4 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

1шт.

21882R1

WASHER, 21/32 x 2 x 16 ga C-Z

1шт.

43

559154R1

BUSHING,25.45mm ID x 28.6mm OD x 25.4mm L

tightener control arm hub, for use w/extension spring

2шт.

44

174574C1

BRACKET, spring anchor, for use w/extension spring

1шт.

45

174575C1

ANGLE, spring anchor, for use w/extension spring

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 znd sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

46

BRACE ASSY, propulsion jackshaft RH bearing support, refer to group 26 under grain tank unloader drive and controls for unit listing

1шт.

47

574257R1

STOP

propulsion pulley transmission shaft

1шт.

48

174567C91

SPRING

W/PLUGS, propulsion belt tgtnr, includes ref no. 49, for use w/extension spring

1шт.

49

PO2327

PLUG

propulsion belt tightener, for use w/extension spring

1шт.

50

174569C1

BOLT, propulsion belt tightener spring front, for use w/extension spring

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

51

629176R1

BOLT, propulsion belt tightener spring rear, for use w/extension spring

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.
