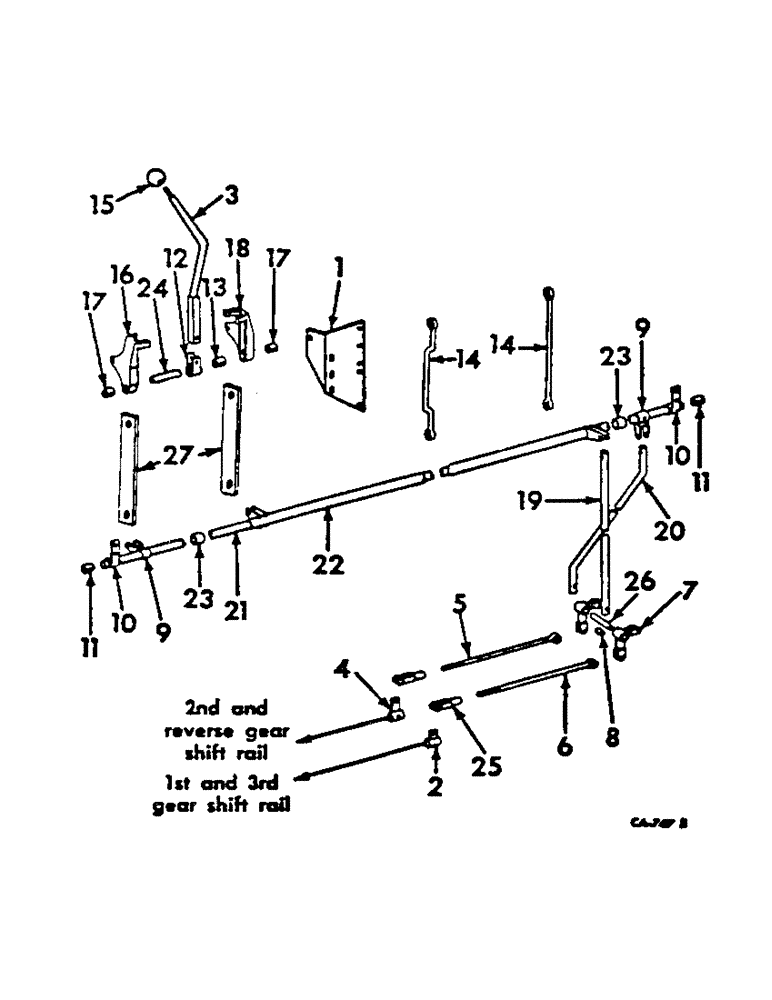

Запчасти Case IH 615 (07-20) - DRIVE TRAIN, TRANSMISSION GEAR SHIFT AND LINKAGE Drive Train

1

938829R91

SUPPORT ASSY, shift lever

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

1шт.

18788R1

BOLT

3/8 x 4-1/2 hex-hd

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

2

175960C1

ARM ASSY, 1st & 3rd gear shift rail

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

3

938848R91

LEVER ASSY, shift

1шт.

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

4

583247R91

ARM ASSY, 2nd & reverse gear shift rail

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

5

171639C1

ROD, gear shift lower, serial no. 3290 and below

1шт.

5

175964C2

ROD, gear shift lower, serial no. 3291 and above

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

493-21046

LOCK WASHER,Int Tooth, 7/16"

7/16 C-Z int-tooth lock

1шт.

6

583253R1

ROD, gear shift upper

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

131718

SHIM

7/16 C-Z int-tooth lock

1шт.

7

170905C2

BELLCRANK, gear shift connector lower, serial no. 3290 and below

1шт.

7

175966C1

LEVER

BELLCRANK, gear shift connector lower 2, serial no. 3291 and above

1шт.

19268R1

SCREW,Hex, 3/8" - 16 x 4 3/4", Gr 2

BOLT, 3/8 x 4-3/4 hex-hd

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 straight lub

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

18608R1

LOCK PIN,7.92mm OD x 25.4mm L, Coiled

Pin, 5/16" x 1", Slotted

2шт.

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

4шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga

4шт.

8

583250R1

BUSHING, gear shift connector lower

1шт.

9

564526R1

CRANK, gear shift connector shaft

2шт.

137258

COTTER PIN

3/16" x 1 3/4"

2шт.

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

4шт.

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

3шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

2шт.

10

631647R91

BRACKET

SUPPORT ASSY, gear shift conn sft brg, includes ref no 11

2шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

556448R1

BUSHING,19.07mm ID x 22.23mm OD x 25.4mm L

2шт.

12

564520R11

PIVOT

ASSY, gear shift lever, includes ref no. 13, serial no. 3290 and below

1шт.

12

157360C11

ARM

PIVOT ASSY, gear shift lever, includes ref no. 13, serial no. 3251 and above

1шт.

13

568920R1

BUSHING

1шт.

14

564521R1

ROD, gear shifter arm, serial no. 3250 and below

2шт.

15

163574C1

KNOB

gear shift lever

1шт.

16

626608R11

ARM ASSY, gear shift left, includes ref no. 17

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

18608R1

LOCK PIN,7.92mm OD x 25.4mm L, Coiled

Pin, 5/16" x 1", Slotted

1шт.

17

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

gear shift arm

2шт.

18

626609R11

ARM ASSY, gear shift right, includes ref no. 17

1шт.

18608R1

LOCK PIN,7.92mm OD x 25.4mm L, Coiled

Pin, 5/16" x 1", Slotted

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

19

627449R1

CONNECTOR, shift 1st & 3rd

1шт.

20

627448R2

CONNECTOR, shift 2nd and reverse

1шт.

21

564524R1

SHAFT, gear shift connector

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

8шт.

22

564514R91

TUBE ASSY, gear shift connector, includes ref no. 23

1шт.

18608R1

LOCK PIN,7.92mm OD x 25.4mm L, Coiled

Pin, 5/16" x 1", Slotted

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

1шт.

17244R1

LOCK PIN,5/16" x 1 1/4", Slotted

PIN, 5/16" x 1 1/4", Slotted

1шт.

23

556448R1

BUSHING,19.07mm ID x 22.23mm OD x 25.4mm L

2шт.

24

564519R1

SPACER, gear shift lever pivot

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

25

117825

CLEVIS, gear shift rod

2шт.

121224

SUPPORT

3/32" x 1"

4шт.

138085

AXLE PIN,7/16" x 1.190"

PIN, 7/16 x 1-15/64 C-Z rod end

4шт.

26

554327R1

SPACER,7/8" Tube x 1"

gear shift conn lwr bell crk

1шт.

27

177133C1

LINK, gear shifter arm, serial no. 3291 and above

2шт.
