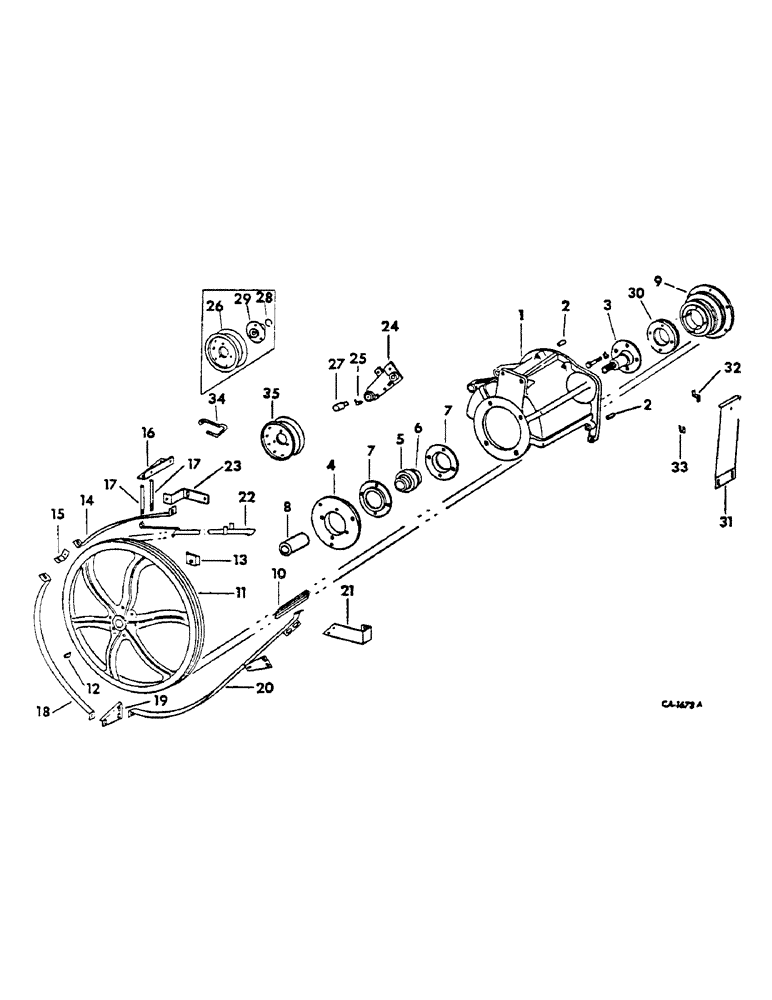

Запчасти Case IH 615 (07-16) - DRIVE TRAIN, SEPARATOR AND PROPULSION JACKSHAFT DRIVE, HYDROSTATIC DRIVE, S/N 12000 & BELOW Drive Train

1

153186C1

HOUSING, power take-off

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16 x 1-1/4 C-Z hex-hd cap

2шт.

NLS

NO LONGER SERVICED

SCREW, 7/16 x 2-1/4 C-Z hex-hd cap

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2 x 3 C-Z hex-hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

495-11053

WASHER,1/2", SAE

17/32 x 1 x .097 C-Z

1шт.

2

1769Y

DOWEL, power take-off housing

2шт.

3

161967C1

SHAFT, hyd pump drive

1шт.

4

153188C1

RETAINER, hyd pump drive shaft brg

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1 C-Z hex-hd cap

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

5

936998R91

BEARING

ASSY, hyd pump drive shaft ball

1шт.

6

455112R11

COLLAR

ASSY, bearing locking

1шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd

1шт.

7

663562R1

FLANGE

hyd pump drive shaft brg

2шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 C-Z sq-nk crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

8

389441R1

COUPLING

hyd pump drive shaft

1шт.

9

172922C1

PULLEY, separator & straw chopper drv multiple v, 8-5/8 in OD

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

171434C1

BELT,0.630" W x 167.49" L, 3 Ribs

V-BELT , Separator drive 0.630" W x 167.49" L, 3 Ribs

1шт.

11

171435C1

PULLEY, separator driven, 31-1/2 in OD

1шт.

12

117998

WOODRUFF KEY,#G, 3/8" x 1 1/2", HT

KEY, 3/8 x 1-1/2 woodruff

1шт.

13

166876C1

WEIGHT

balance

1шт.

654859R1

SELF-TAP SCREW,1/4" - 20 x 1 1/2"

SCREW, balance weight

1шт.

14

171436C1

GUIDE, belt upper

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

15

171437C1

CLIP, upper guide

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

16

171438C1

SUPPORT, finger guide

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

17

633221R1

ROD, belt guide

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

18

171439C1

GUIDE, belt front

1шт.

19

171440C1

SUPPORT, guide lower

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

20

171441C1

GUIDE ASSY, separator belt lower

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

2шт.

21

171444C1

SUPPORT, guide upper rear

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

6шт.

22

171445C1

TRAP ASSY, separator belt

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 C-Z hex-hd mach

1шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2 C-Z prevailing torque type

1шт.

21883R1

WASHER

17/32 x 1-3/4 x 11 ga C-Z

2шт.

23

171450C1

SUPPORT, trap pivot

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 C-Z hex-hd mach

1шт.

457390

STEEL PLATE

NUT, 1/2 C-Z hex prevailing torque

1шт.

21883R1

WASHER

17/32 x 1-3/4 x 11 ga C-Z

1шт.

24

171452C1

LEVER ASSY, separator drive idler

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

179373R1

WASHER, 17/32 x 1-3/4 x 16 ga C-Z

1шт.

25

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 NS 45 deg angle lub

1шт.

26

171228C11

PULLEY

ASSY, separator drive idler, 8 in OD, serial no. 2580 and below

1шт.

27

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

ASSY, idler pulley

1шт.

28

559203R1

SNAP RING,#118, 1.260", Int, Spiral

RING, idler pulley bearing snap, serial no. 2580 and below

1шт.

29

171675C1

HUB, separator drive idler pulley, serial no. 2580 and below

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

30

171755C1

PULLEY, unloader drive, 6-1/2 in OD

1шт.

31

172155C2

SHIELD, PTO drive, not straw chopper

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

2шт.

32

172149C1

STRAP, shield support, not straw chopper

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

1шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z slt-truss-hd

1шт.

33

167946C1

SHIM, power take-off housing

5шт.

34

171451C1

ROD, trap support rear

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

35

174756C1

PULLEY

ASSY, separator drive idler, 8 in. OD, serial no. 2581

1шт.
