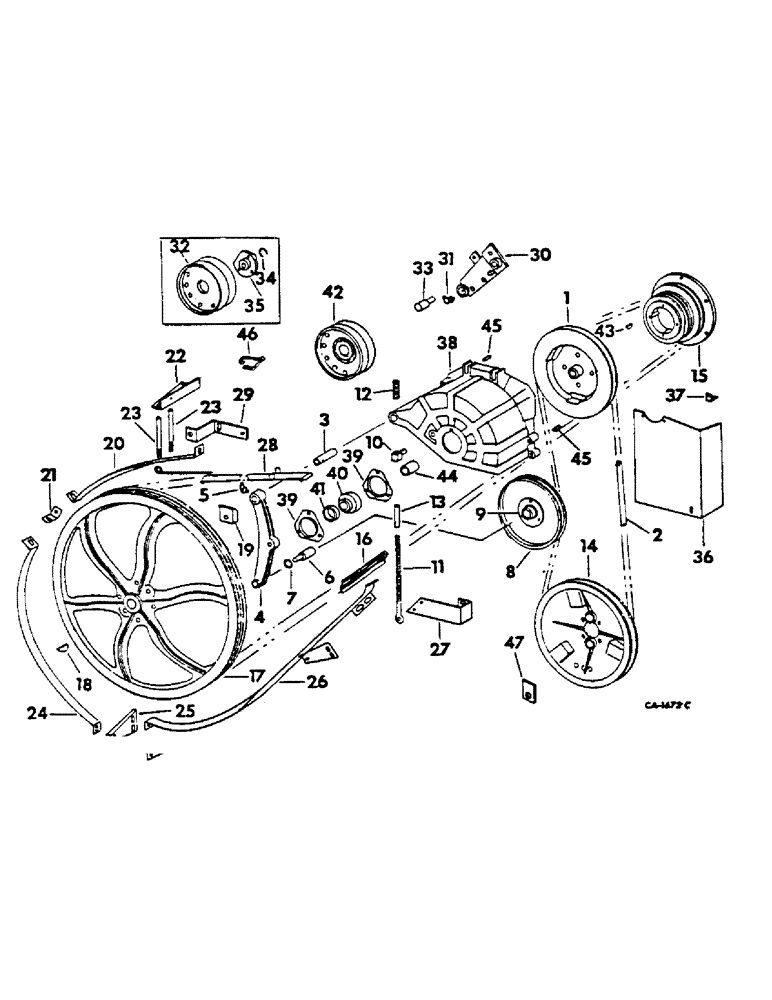

Запчасти Case IH 615 (07-14) - DRIVE TRAIN, SEPARATOR AND PROPULSION JACKSHAFT DRIVE, BELT DRIVE Drive Train

1

171473C1

PULLEY, propulsion jackshaft drive, 12-7/8 in OD, serial no. 2580 and below

1шт.

1

174380C91

PULLEY W/SHAFT, propulsion jackshaft drive, includes ref no. 42, serial no. 2581 and above

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

937931R1

V-BELT

Propulsion jackshaft drive

1шт.

3

628292R1

SHAFT

propulsion jackshaft drive belt tightener arm pivot

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

84983

SET SCREW,3/8" x 1"

SCREW, 3/8-16 x 1 C-Z sq-hd cup

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

1шт.

4

564765R1

ARM

propulsion jackshaft drive belt tightener

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

21806R1

HEADED PIN,1/2" x 1 3/4"

PIN, 1/2 x 1-3/4 C-Z std-hd dld

1шт.

5

16964R91

FITTING

1/4-28 ns 90 deg angle lub

1шт.

6

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

propulsion jackshaft drive belt tightener pulley ball

7шт.

7

559203R1

SNAP RING,#118, 1.260", Int, Spiral

propulsion jackshaft drive belt tightener pulley hub

1шт.

8

569193R11

PULLEY

ASSY, propulsion jackshaft drive belt tightener, 10-5/8 in OD

1шт.

9

564729R1

HUB, propulsion jackshaft drive belt tightener pulley

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

10

564731R1

TRUNNION

propulsion jackshaft drive belt tightener adj bolt

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

1шт.

11

564732R1

DRAWBOLT, propulsion jackshaft drive belt tightener adj

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

12

23612SA

SPRING, propulsion jackshaft drive belt tightener adjusting drawbolt

1шт.

13

174118C1

SPACER, propulsion jackshaft drive belt tightener adjusting drawbolt

1шт.

14

628883R1

PULLEY, propulsion jackshaft driven, 15 in OD

1шт.

15

172922C1

PULLEY, separator drive, 8-5/8 in OD

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 C-Z hex-hd cap

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

16

171434C1

BELT,0.630" W x 167.49" L, 3 Ribs

V-BELT , Separator drive 0.630" W x 167.49" L, 3 Ribs

1шт.

17

171435C1

PULLEY, separator driven, 31-1/2 in. OD

1шт.

18

117998

WOODRUFF KEY,#G, 3/8" x 1 1/2", HT

KEY, 3/8 x 1-1/2 woodruff

1шт.

19

166876C1

WEIGHT

balance

1шт.

654859R1

SELF-TAP SCREW,1/4" - 20 x 1 1/2"

SCREW, balance weight

1шт.

20

171436C1

GUIDE, belt upper

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

21

171437C1

CLIP, upper guide

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

22

171438C1

SUPPORT, finger guide

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

23

633221R2

ROD, belt guide

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

24

171439C1

GUIDE, belt front

1шт.

25

171440C1

SUPPORT, guide lower

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

1шт.

27

171444C1

SUPPORT, guide upper rear

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

6шт.

28

171445C1

TRAP ASSY, separator belt

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 C-Z hex-hd mach

1шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2 prevailing torque lock

1шт.

21883R1

WASHER

17/32 x 1-3/4 x 11 ga C-Z

1шт.

29

171450C1

SUPPORT, trap pivot

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 C-Z hex-hd mach

1шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2 prevailing torque lock

1шт.

21883R1

WASHER

17/32 x 1-3/4 x 11 ga C-Z

1шт.

30

171452C1

LEVER ASSY, seperator drive idler

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

179373R1

WASHER, 17/32 x 1 x 16 ga C-Z

1шт.

31

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING, 1/4-28 NS deg angle lub

1шт.

32

171228C11

PULLEY

ASSY, separator drive idler 8 in. OD, serial no. 2580 and below

1шт.

33

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

ASSY, idler pulley

1шт.

34

559203R1

SNAP RING,#118, 1.260", Int, Spiral

RING, idler pulley bearing snap, serial no. 2580 and below

1шт.

35

171675C1

HUB, separator drive idler pulley, serial no. 2580 and below

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

36

172154C2

SHIELD, PTO drive belt, not straw chopper

1шт.

37

168333C1

ANGLE, clip, not straw chopper

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

38

378344R2

HOUSING, drive pulley, gasoline engine

1шт.

38

395177R1

HOUSING, drive pulley, diesel engine, serial no. 8000 and below

1шт.

271501

SOCKET

NUT, 7/16 znd hex

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16 x 1-1/4 znd hex-hd cap

2шт.

413-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

SCREW, 7/16 x 2-1/4 znd hex-hd cap

2шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2 x 3 znd hex-hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

495-11053

WASHER,1/2", SAE

17/32 x 1 x .097 znd

2шт.

39

571426R1

PLATE

FLANGE, drive shaft bearing

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

40

570043R91

BALL BEARING,1.4375" ID x 72 mm OD x 2.1"

drive shaft

1шт.

41

557113R11

COLLAR

drive shaft bearing

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd cup-pt

1шт.

42

174756C1

PULLEY

ASSY, separator drive idler, 8 in. OD, serial no. 2581 and above

1шт.

43

103462

KEY

woodruff no 13, serial no. 2580 and below

1шт.

44

306424R1

BUSHING

SPACER, drive pilot shaft, serial no. 2580 and below

1шт.

45

1769Y

PIN, rear plate pivot

2шт.

46

171451C1

ROD, trap support rear

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

2шт.

47

570119R1

KEEPER, propulsion jackshaft lock nut

1шт.
