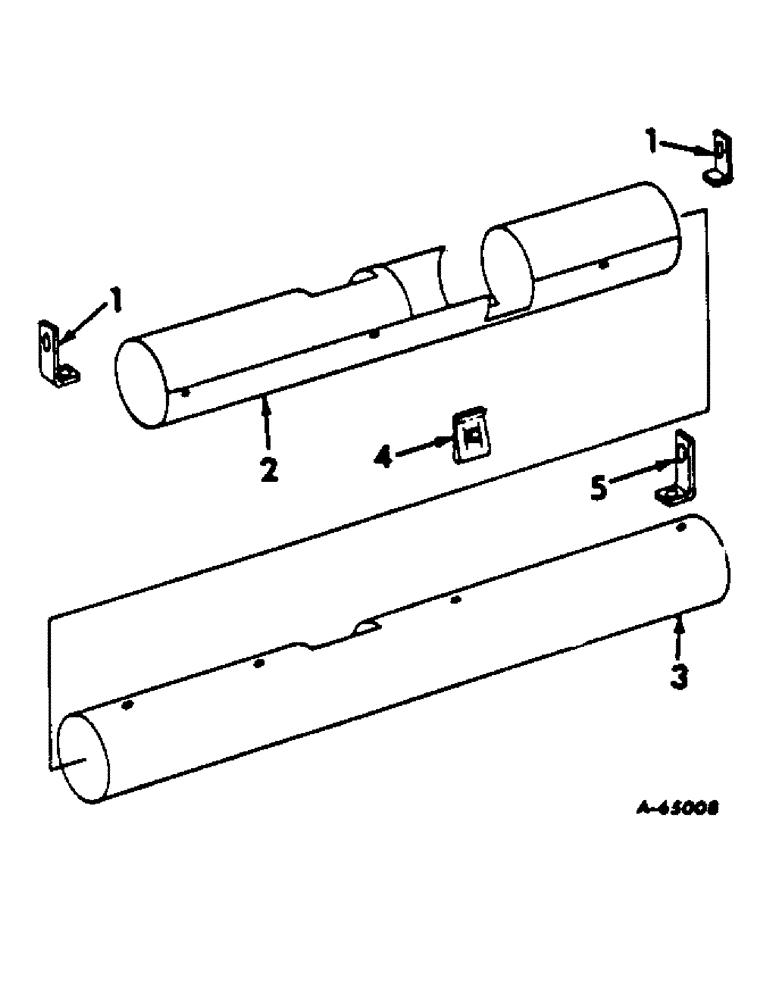

Запчасти Case IH 615 (07-13) - DRIVE TRAIN, FINAL DRIVE SHAFT SHIELD, SERIAL NUMBER 12000 AND BELOW Drive Train

1

568810R1

CLIP, final drive shaft shield

6шт.

425-117

NUT,7/16"-20, G5

7/16-20 hex.

6шт.

193490

SCREW, 7/16 x 4-1/4 hex-hd cap

6шт.

21029R1

WASHER

15/32 x 1 x 11 ga

19шт.

2

588802R1

SHIELD, final drive shaft LH

1шт.

20701R1

SCREW, 1/4 x 1/2 C-Z slt-pan-hd mach

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

3

588804R1

SHIELD, final drive right

1шт.

20701R1

SCREW, 1/4 x 1/2 C-Z slt-pan-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

564791R1

SPRING NUT

1/4 speed

7шт.

5

634978R1

CLIP, final drive shaft

6шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

6шт.
