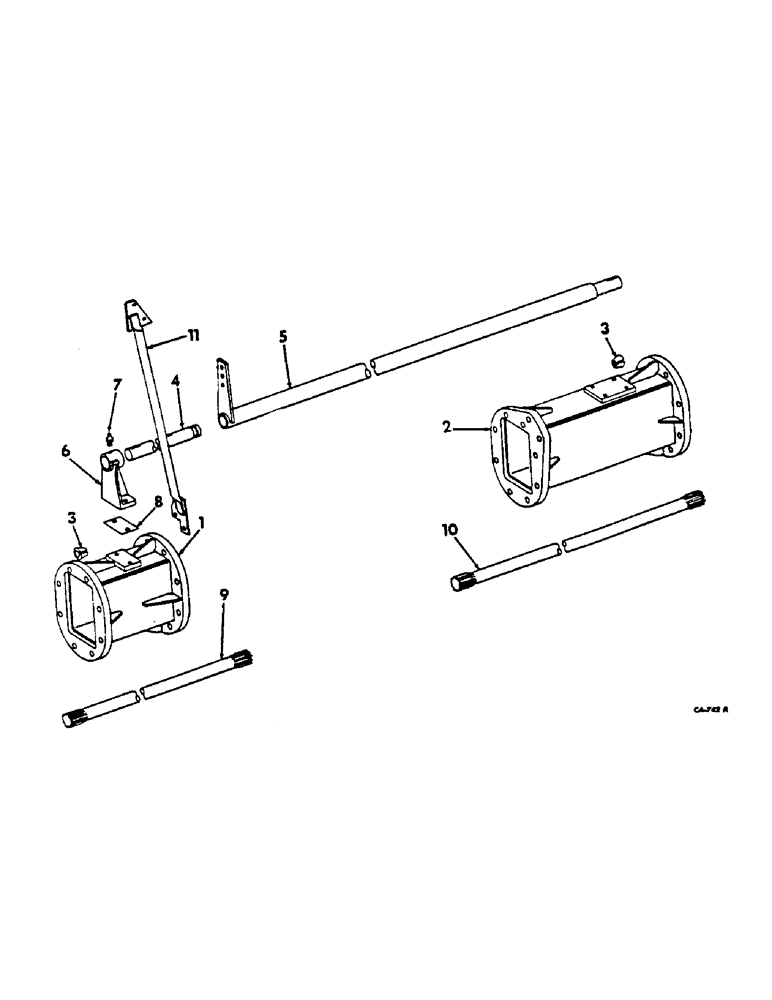

Запчасти Case IH 615 (07-12) - DRIVE TRAIN, MAIN AXLE 120" TREAD EXTENSION, FOR USE W/ OPERATORS PLAT. EXTENSION,S/N 8000 AND BELOW Drive Train

1

173219C1

EXTENSION ASSY, main axle LH

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 x 2-1/4 znd hex-hd type 8

5шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

5/8 x 2-1/2 znd hex-hd type 8

2шт.

21434R1

NUT,5/8"-11, G8

5/8 znd hex. type 8

7шт.

366866C1

LOCK WASHER,5/8"

5/8"

7шт.

138557

WASHER,Int Tooth, 5/8"

5/8 znd int-tooth lock

4шт.

2

173220C1

EXTENSION ASSY, main axle RH

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 znd hex-hd mach

2шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 x 2-1/4 znd hex-hd mach

6шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

5/8 x 2-1/2 znd hex-hd type 8

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 znd hex

2шт.

21434R1

NUT,5/8"-11, G8

5/8 znd hex type 8

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

366866R1

RING

WASHER, 5/8 znd rib lock

8шт.

138577

WASHER, 5/8 znd int-tooth lock

4шт.

3

54700R1

DOWEL

main axle extension

8шт.

4

151238C1

SHAFT, wheel brake LH

1шт.

5

151236C91

PIPE ASSY, wheel brake RH torque

1шт.

6

150428C1

HOUSING, wheel brake LH pivot

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28NF str lub

1шт.

8

150427C1

STRAP, wheel brake LH pivot housing

4шт.

9

173169C1

SHAFT, axle drive LH

1шт.

10

173168C1

SHAFT, axle drive RH

1шт.

11

173164C1

BRAKE ASSY, main axle extension

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

21434R1

NUT,5/8"-11, G8

5/8 znd hex. type 8

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

366866C1

LOCK WASHER,5/8"

5/8"

1шт.
