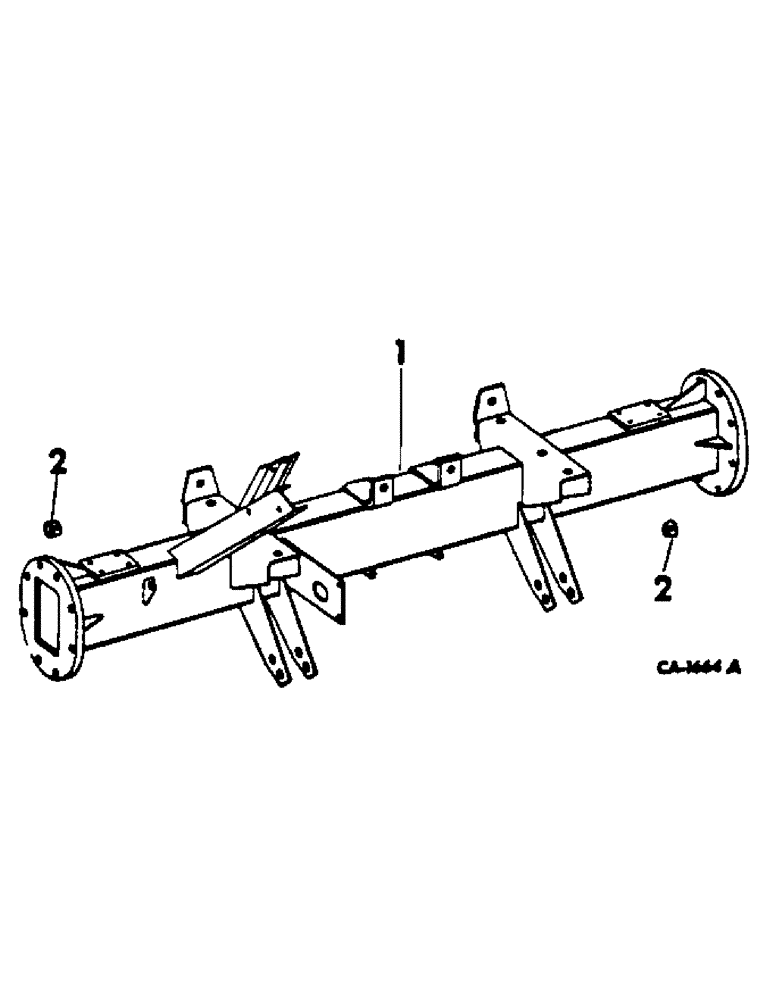

Запчасти Case IH 615 (07-09) - DRIVE TRAIN, MAIN AXLE Drive Train

1

171967C3

AXLE ASSY, main drive, belt drive

1шт.

1

171969C2

AXLE ASSY, main drive, hydrostatic drive, serial no. 12000 and below

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 znd hex-hd

2шт.

18821R1

BOLT

5/8 x 1-1/4 znd hex-hd mach

4шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 C-Z hex-hd mach

2шт.

161068R1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 hex.

14шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

21932R1

HEADED PIN,1/2" x 2"

PIN, 1/2 x 2 C-Z std-hd

1шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

SCREW, 1/2 x 1-1/2 hex-hd

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2 x 1-3/4 znd hex-hd cap

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2 x 2 znd hex-hd cap

3шт.

9406829

HEX SOC SCREW,1/2" - 13 x 3 1/2"

SCREW, 1/2 x 3-1/2 C-Z hex-soc-hd cap

2шт.

432695R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

SCREW, 5/8 x 1-3/4 znd hex-hd cap

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

366864C1

LOCK WASHER,1/2"

1/2"

2шт.

20869R1

WASHER

17/32 x 7/8 x 16 ga

4шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

138502

WASHER,Ext Tooth, 5/8"

5/8 ext-tooth lock

1шт.

2

54700R1

DOWEL

main axle

4шт.
