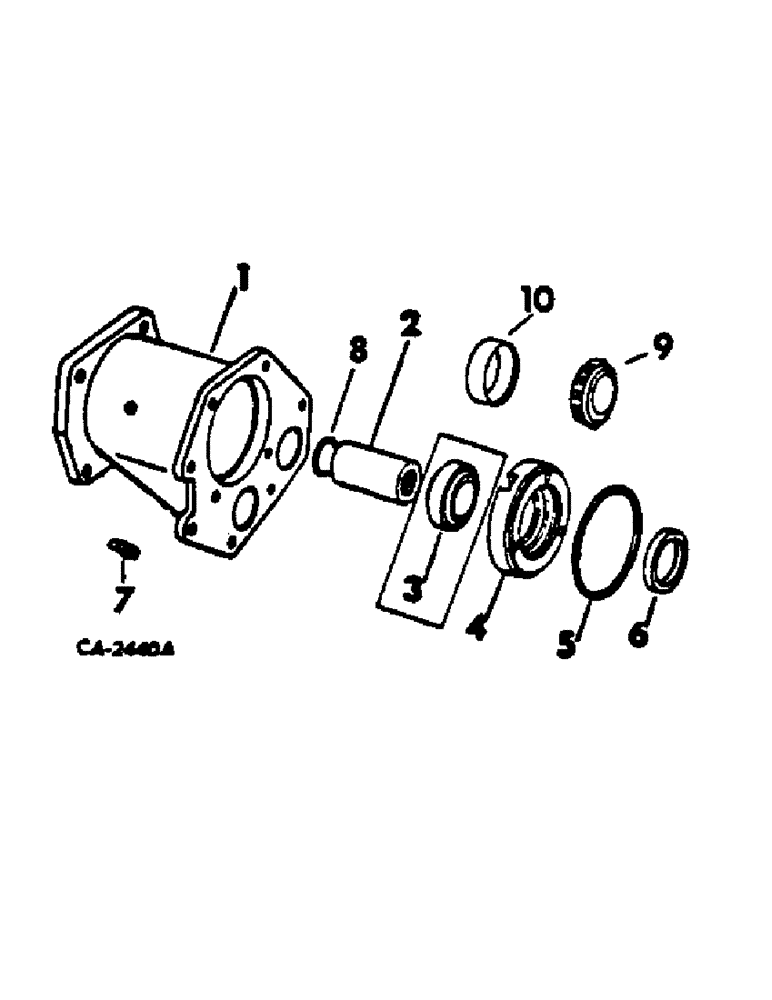

Запчасти Case IH 615 (07-05) - DRIVE TRAIN, HYDROSTATIC DRIVE, TRANSMISSION PARTS Drive Train

1

389442R1

HOUSING, motor adapter, serial no. 3290 and below

1шт.

1

402849R1

HOUSING

motor adapter, serial no. 3291 and above

1шт.

376107R1

BOLT,Hex, 7/16" - 14 x 1 1/4", W/ Nylon Pellet

SCREW W/NYLON PELLET, 7/16-14 x 1-1/4 hex-hd cap

7шт.

2

389441R91

COUPLING W/RING, 402848R1, transmission input, serial no. 3290 and below

1шт.

2

402847R11

COUPLING

W/RING, 402848R1, transmission input, serial no. 3291 and above

1шт.

3

BEARING, not serviced separately order bearing assy, 360321R91 and outer cup, ST991

1шт.

4

389443R1

CAP, input pinion shaft bearing, serial no. 3290 and below

1шт.

379446R1

SCREW,Hex, 3/8" - 16 x 1 3/8", W/ Nylon Pellet

W/NYLON PELLET, 3/8 x 1-3/8 hex-hd cap

3шт.

5

379447R1

RING

input pinion shaft bearing cap square seal, serial no. 3290 and below

1шт.

6

938294R91

OIL SEAL,32.89mm ID x 54.08mm OD x 8mm Thk

ASSY, input shaft left bearing oil, serial no. 3290 and below

1шт.

7

700518C1

PLUG

1/4 znd magnetic pipe

1шт.

8

402848R1

RING

retaining

1шт.

9

360321R91

BEARING ASSY,1.3775" ID x 2.78" OD x 0.7813"

ASSY, input shaft outer cone

1шт.

10

ST991

BEARING CUP

BEARING, input shaft outer cup

1шт.
