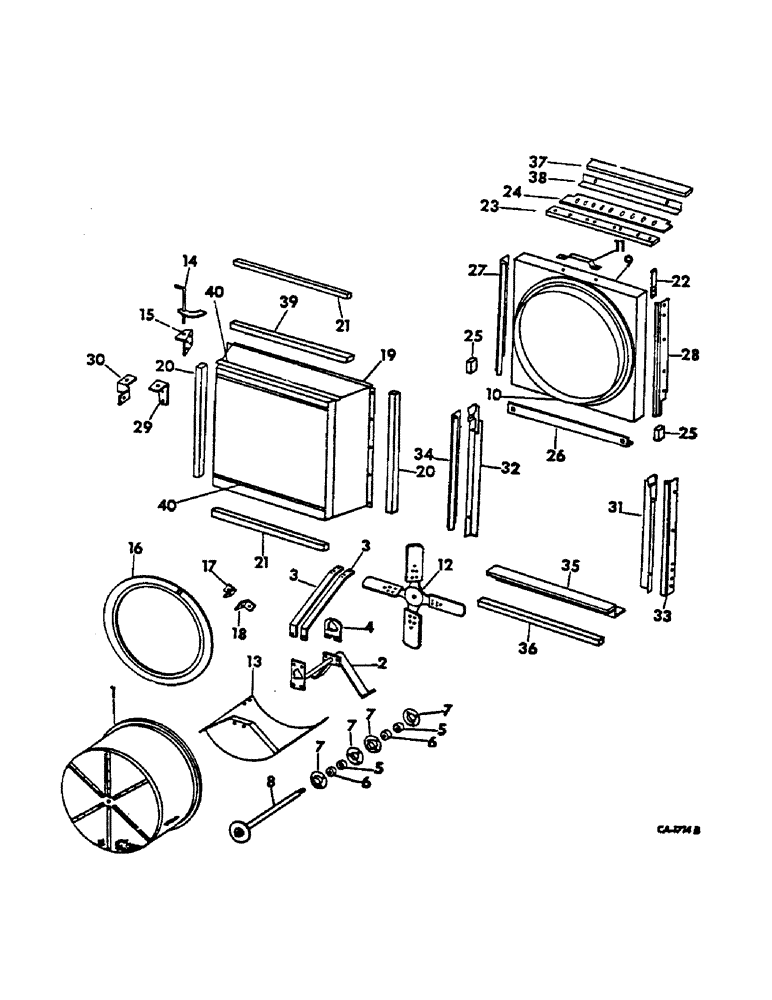

Запчасти Case IH 615 (06-06) - COOLING, ROTARY SCREEN Cooling

1

159702C91

SCREEN

SIEVE ASSY, radiator rotating fan

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

12шт.

21352R1

RIVET,Tr Hd, 3/16" x .281", Alum.

3/6 x 9/32 truss-hd semi-tubular

18шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 slt-truss-hd

1шт.

2

152806C91

SUPPORT ASSY, radiator screen brg

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

1шт.

3

154885C1

BRACE

radiator screen brg support

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

106883

RIVET,Truss Hd, 3/16" x 3/8"

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

4

153570C1

BRACKET

radiator screen brg support

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

2шт.

5

468390R91

BEARING, BALL,0.6255" ID x 40 mm OD x 0.75"

BEARING ASSY, radiator rotary sieve ball

2шт.

6

468391R11

COLLAR

W/SET SCREW LKG

2шт.

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

2шт.

7

661147R1

FLANGED BEARING

rotating sieve brg

4шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

8

159703C91

ROD

ASSY, radiator rotating sieve

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 C-Z int tooth lock

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

9

161419C91

SHROUD ASSY, radiator rotating screen

1шт.

10

161420C1

RING

rotary screen brush

1шт.

161421C1

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW, rotating brush ring

8шт.

11

614920R1

HANDLE, shroud

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4 x 1/2 C-Z sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

161207C91

FAN

ASSY, 4 blade, hydrostatic drive, serial number 12000 and below

1шт.

12

158710C91

FAN ASSY, 6 blade, belt drive

1шт.

13

152909C91

DEFLECTOR ASSY, radiator screen

1шт.

14

154139C91

LEVER

ASSY, rotating fan support, hydrostatic drive gasoline engine, serial number 12000 and below, belt drive diesel engine

1шт.

14

154125C91

LEVER ASSY, rotating fan support, belt drive gasoline engine

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4, z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

5/16 C-Z hex-hd jam

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

15

154137C1

ANGLE, rotating fan support, hydrostatic drive gasoline engine, serial number 12000 and below

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

161010C91

BRUSH ASSY.

BRUSH ASSY, rotary screen, includes ref. nos 17 and 18, hydrostatic drive, serial number 12000 and below

1шт.

17

161011C1

CLIP

rotary screen brush short, hydrostatic drive, serial number 12000 and below

1шт.

18

161012C1

CLIP, rotary screen brush long, hydrostatic drive, serial number 12000 and below

1шт.

19910R1

LOCK NUT

no 10-24 C-Z lock

1шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

no 10-24 x 1 C-Z pan hd sltd

1шт.

19

170900C1

ADAPTER ASSY, rotary screen, hydrostatic drive gasoline, serial number 12000 and below

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

20

318106R1

SEAL, sta-foam, 28 in. long, 1 in. wide x .038 in. thick, serial number 12000 and below

2шт.

21

155771C1

SEAL

sta-foam, 36 in. long, 1 in. wide x 1 in. thick, hydrostatic drive gasoline engine, serial number 12000 and below

2шт.

22

461678R1

SEAL

TAPE, .060 in. thick x 3/8 in. wide x 8 in. long

5шт.

23

154028C1

SEAL, sponge rubber, belt drive

1шт.

24

154029C1

STRAP, seal, belt drive

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 hex-hd

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25

159541C1

SEAL, radiator air screen guide bottom, 2 in. long x 1 in. wide x .38 in. thick

2шт.

26

152811C1

ANGLE, radiator support, gasoline belt drive

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

27

152812C1

GUIDE, radiator support left, gasoline belt drive

1шт.

110579R91

NUT

5/16-24NF speed grip

5шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16-24 x 3/4 C-Z hex-hd cap

4шт.

181608

BOLT,Hex, 5/16" - 24 x 1", Gr 5

SCREW, 5/16-24 x 1 C-Z hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

28

152813C1

GUIDE, radiator support right, gasoline belt drive

1шт.

110579R91

NUT

5/16-24NF speed grip

5шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16-24 x 3/4 C-Z hex-hd cap

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

29

154136C1

ANGLE, rotating fan support, diesel belt drive, serial no. 8000 and below

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

30

154129C1

SUPPORT, rotating fan, belt drive gasoline engine

1шт.

31

153798C91

ANGLE ASSY, radiator screen slide support left, diesel belt drive, serial no. 8000 and below

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

32

153799C91

ANGLE ASSY, radiator screen slide support right, diesel belt drive, serial no. 8000 and below

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

33

153656C1

SLIDE, radiator screen left, diesel belt drive, serial no. 8000 and below

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

34

153657C1

SLIDE, radiator screen right, diesel belt drive, serial no. 8000 and below

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

35

153658C11

REINFORCEMENT ASSY, radiator screen support, includes ref no 36, diesel belt drive, serial no. 8000 and below

1шт.

36

154277C1

SEAL, sponge rubber, diesel belt drive, serial no. 8000 and below

1шт.

37

161263C11

ANGLE ASSY, radiator top seal, diesel belt drive, serial no. 8000 and below, includes ref no. 38

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

38

318106R1

SEAL, sta-foam, 28 in. long, in. wide x 38 in. thick, diesel belt drive, serial no. 8000 and below

1шт.

39

400143R1

GASKET

SEAL, sta-foam, 35.4 in. long, 3/4 in. wide x 1/2 in. thick, hydrostatic drive gasoline engine, serial no. 8000 and below

1шт.

40

159817C1

SEAL

sta-foam, 28.5 in. long, 1 in. wide x .38 in. thick, hydrostatic drive gasoline engine, serial number 12000 and below

1шт.
