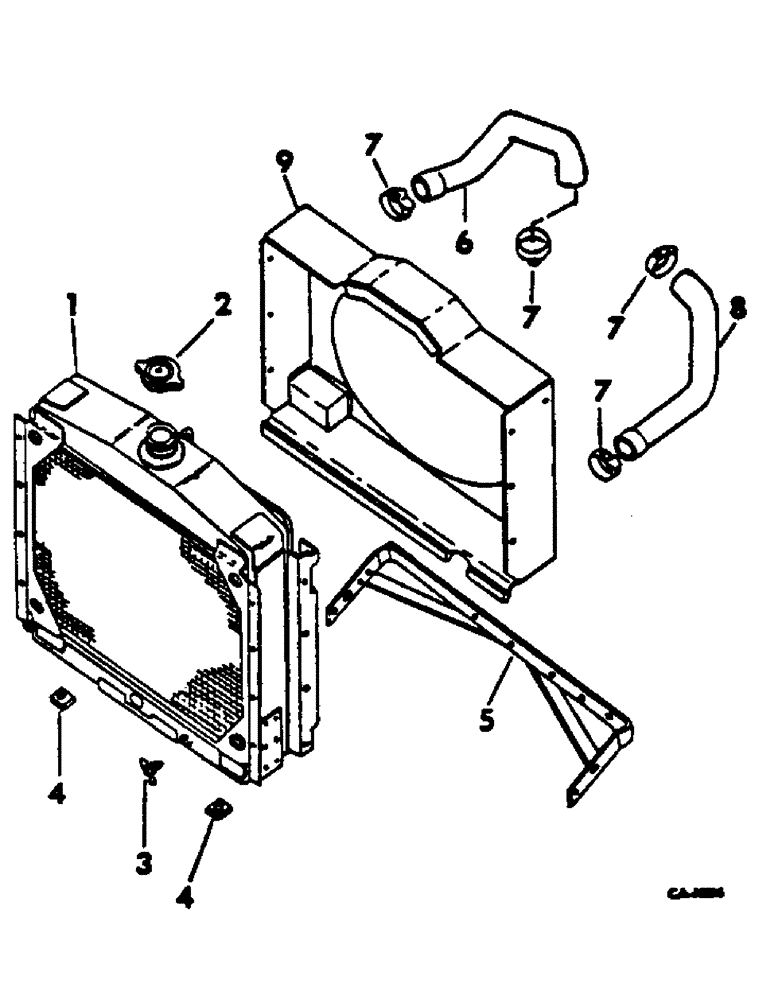

Запчасти Case IH 615 (06-05) - COOLING, RADIATOR AND CONNECTIONS, DIESEL ENGINE COMBINES Cooling

1

397476R1

RADIATOR ASSY, less pressure cap

1шт.

18697R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 2

BOLT, 7/16 x 1-3/4 znd sq-nk crg

2шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga znd

4шт.

2

73047R91

CAP

radiator pressure, optional w/118029R91 and 80889R91

1шт.

2

118029R91

RADIATOR CAP

CAP, radiator pressure, optional w/73047R91 and 80889R91

1шт.

2

80889R91

COVER

CAP, radiator pressure, optional w/118029R91 and 73047R91

1шт.

3

31729D

VALVE

COCK, radiator drain

1шт.

4

312458R1

PAD, radiator mounting

2шт.

5

395169R1

BRACE ASSY, radiator

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16-18 x 7/8 znd hex-hd cap

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-14 x 1 znd hex-hd cap

4шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 znd hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .065 znd

2шт.

178571

LOCK WASHER,Ext-Int Tooth, 7/16"

WASHER, 7/16 znd int-ext tooth lock

2шт.

6

379955R1

RADIATOR HOSE,2.00" ID, 2.12" ID x 10.50", SAE 20R4 CLASS R, GRADE 1A

Inlet 2.00" ID, 2.12" ID x 10.50", SAE 20R4 CLASS R, GRADE 1A

1шт.

7

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, radiator inlet elbow

4шт.

8

379956R1

RADIATOR HOSE,2.00" ID, 2.12" ID x 13.12", SAE 20R4, CLASS R, GRADE 1A

Outlet 2.00" ID, 2.12" ID x 13.12", SAE 20R4, CLASS R, GRADE 1A

1шт.

9

380598R21

SHROUD ASSY, fan, replaces 387943R91

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
