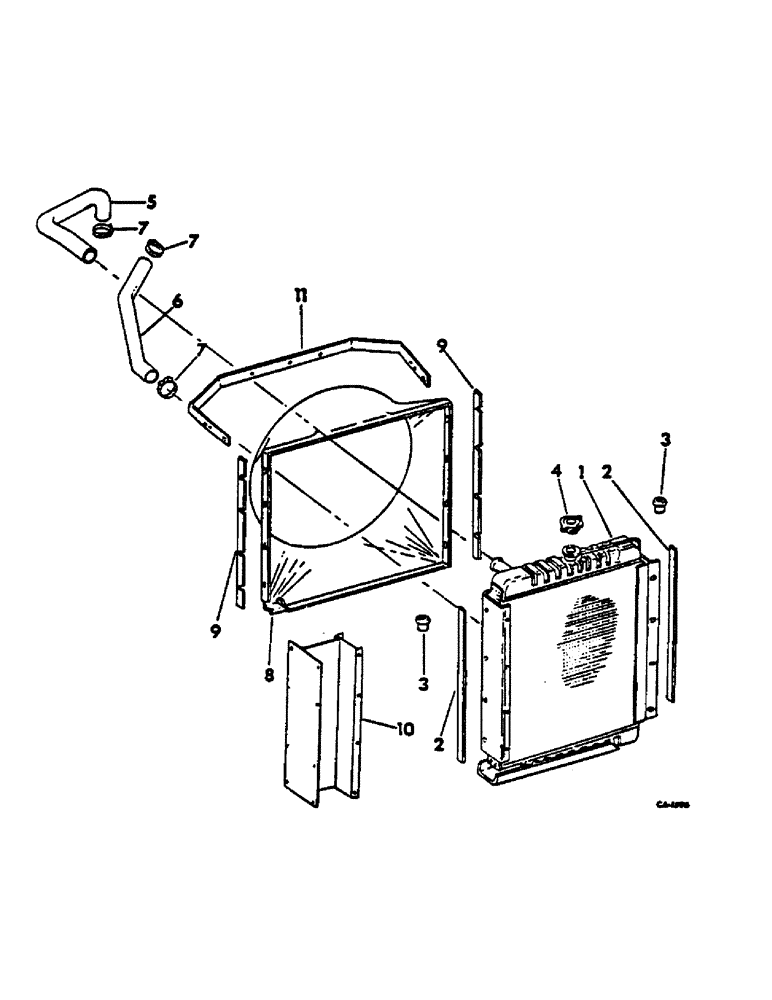

Запчасти Case IH 615 (06-03) - COOLING, RADIATOR AND CONNECTIONS, CARBURETED ENGINES WITH HYDROSTATIC DR., SER. NO. 8000 AND BELOW Cooling

1

400734R3

RADIATOR

ASSY, less pressure cap

1шт.

86982771

VALVE

COCK, 1/4 drain

1шт.

2

400143R1

GASKET

radiator baffle

2шт.

3

400159R1

BUMPER

MOUNT, radiator vibration

2шт.

16873R1

BOLT,Short NK, 7/16"-14 x 2 1/4", G2

7/16 x 2-1/4 sq-nk crg

2шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, , ESNA 7/16"-14, GB

2шт.

20609R1

WASHER

15/32 x 1-3/4 x 11 ga

4шт.

4

530874R1

CAP

radiator pressure

1шт.

5

533820R1

RADIATOR HOSE,2.00" ID x 13.20"

50.80 mm ID X 335.28 mm, SAE 20R GRADE 1A, Inlet Elbow

1шт.

6

400133R1

RADIATOR HOSE,2.00" ID x 16.00", SAE 20R4 CLASS R GRADE 1A

Radiator outlet elbow 2.00" ID x 16.00", SAE 20R4 CLASS R GRADE 1A

1шт.

7

39205H

CLAMP

radiator hose

4шт.

8

400134R1

SHROUD

fan

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd

6шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/32 x 16 ga

6шт.

9

405719R1

SHIM, radiator fan shroud

1шт.

10

(Not used in this application)

1шт.

11

533836R1

BRACE, radiator, engines having fan adjuster

1шт.

11

533821R1

BRACE, radiator, engines not having fan adjuster

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16-14 x 1-1/4 hex-hd

1шт.

180153

BOLT,Hex, 7/16" - 14 x 2", Gr 5

SCREW, 7/16-14 x 2 hex-hd

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.
