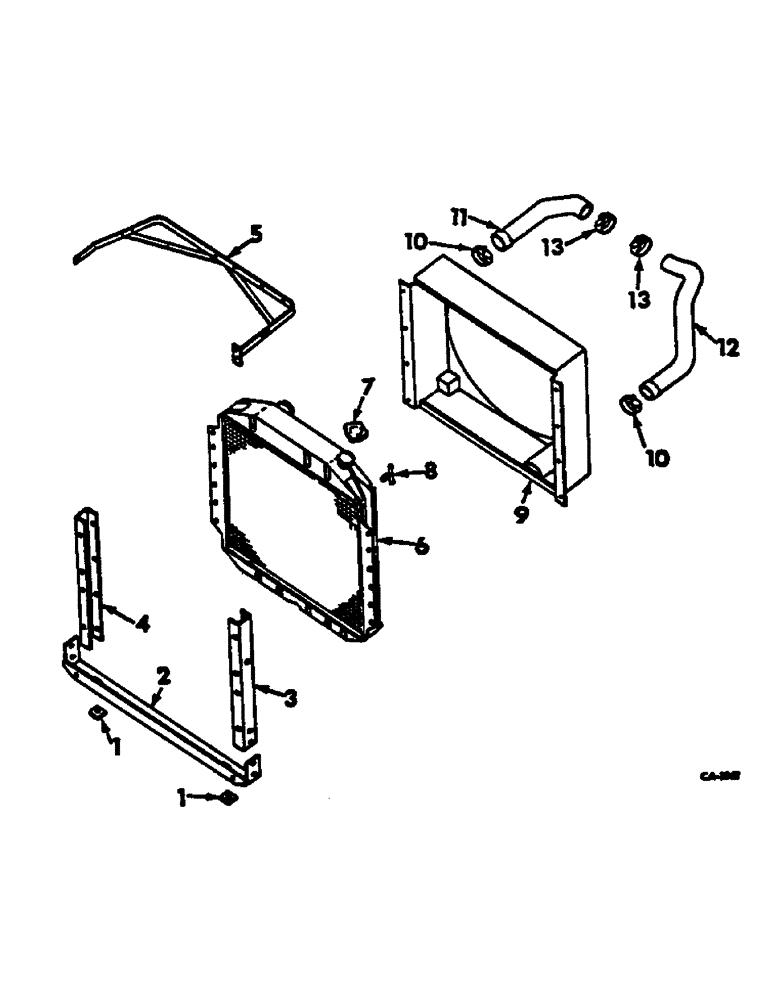

Запчасти Case IH 615 (06-02) - COOLING, RADIATOR AND CONNECTIONS, CARBURETED ENGINES W/BELT DRIVE Cooling

1

274716R1

PAD, radiator mtg

2шт.

2

377758R12

SUPPORT ASSY, radiator

1шт.

18697R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 2

BOLT, 7/16 x 1-3/4 znd sq-nk crg

2шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

4шт.

3

318284R2

CHANNEL, radiator chute & shroud, mtg LH

1шт.

111543R91

NUT, 3/8-24 speed grip

2шт.

NLS

NO LONGER SERVICED

SCREW, 3/8-24 x znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

318285R3

CHANNEL, radiator chute & shroud, mtg RH

1шт.

111543R91

NUT, 3/8-24 speed grip

2шт.

181637

SCREW, 3/8-24 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

378047R11

BRACE ASSY, radiator

1шт.

362662R91

NUT

5/16-24 speed grip

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16-18 x 7/8 znd hex-hd cap

2шт.

181608

BOLT,Hex, 5/16" - 24 x 1", Gr 5

SCREW, 5/16-24 x 1 znd hex-hd cap

2шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16-14 x 1-1/4 znd hex-hd

1шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/16 & int-ext tooth lock

4шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga C-Z

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

6

400414R1

RADIATOR ASSY, less pressure cap

1шт.

362662R91

NUT

5/16-24 speed grip

8шт.

181608

BOLT,Hex, 5/16" - 24 x 1", Gr 5

SCREW, 5/16 x 1 znd hex-hd cap

8шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga C-Z

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

7

73047R91

CAP

radiator pressure, optional w/118029R91 and 80889R91

1шт.

7

118029R91

RADIATOR CAP

CAP, radiator pressure, optional w/73047R91 and 80889R91

1шт.

7

80889R91

COVER

CAP, radiator pressure, optional w/118029R91 and 73047R91

1шт.

8

86982771

VALVE

COCK, 1/4 drain

1шт.

9

380516R11

SHROUD ASSY, fan, replaces 530155R91

1шт.

362662R91

NUT

5/16-24 speed grip

8шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16-24 x 3/4 C-Z hex-hd cap

7шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16-18 x 7/8 C-Z hex-hd cap

1шт.

181610

SCREW,Hex, 5/16" - 24 x 1 1/4", Gr 5

5/16-24 x 1-1/4 hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

10

39219H

CLAMP

2-7/8 hose, replaces 39226H clamp, radiator inlet hose eng end

2шт.

11

379621R1

RADIATOR HOSE,2.00" ID, 2.25" ID x 12.38", SAE 20R4 CLASS R, GRADE 1A

Inlet 2.00" ID, 2.25" ID x 12.38", SAE 20R4 CLASS R, GRADE 1A

1шт.

12

387941R1

RADIATOR HOSE,2.00" ID, 2.12" ID x 15.31", SAE 20R4, CLASS R, GRADE 1A

Outlet elbow 2.00" ID, 2.12" ID x 15.31", SAE 20R4, CLASS R, GRADE 1A

1шт.

13

39205H

CLAMP

radiator 2-1/2 hose

2шт.
