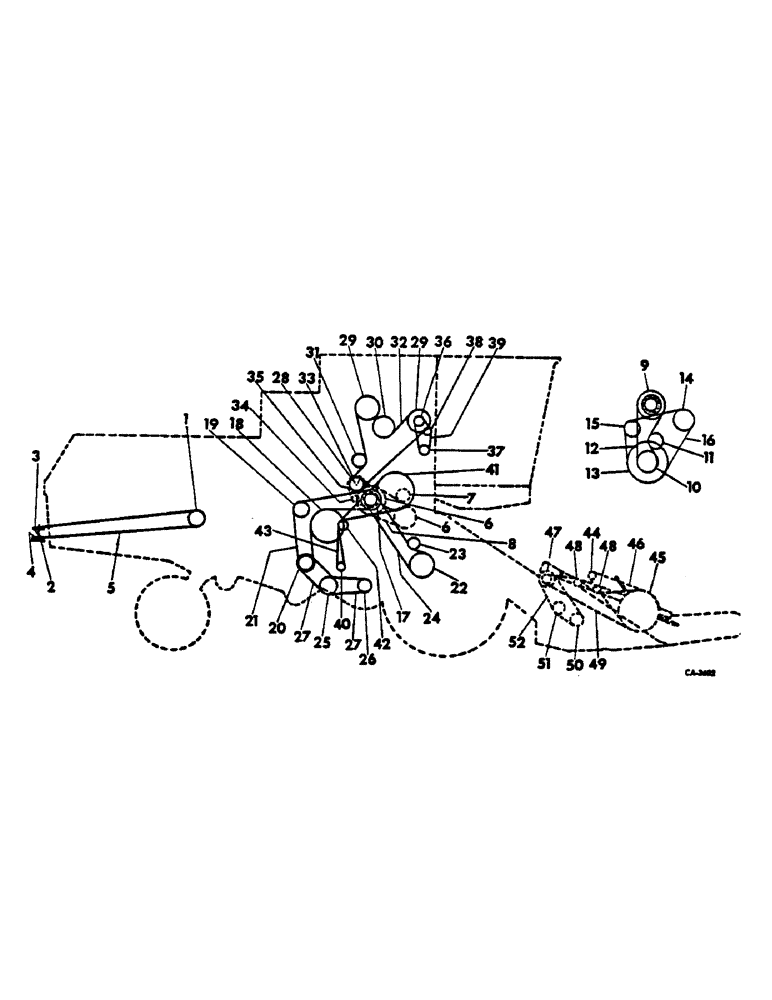

Запчасти Case IH 615 (02-09) - MISCELLANEOUS, BELT, CHAIN, PULLEY AND SPROCKET DIAGRAM, RIGHT SIDE, SER. NO. 8001 AND ABOVE Accessories & Attachments / Miscellaneous

1

2507KA

PULLEY, spreader drive, 7 in. OD, refer to group 20 under straw spreader

1шт.

2

21712K

PULLEY ASSY.

PULLEY, spreader driven, 5-3/4 in. OD, refer to group 20 under straw spreader

1шт.

3

17876K

PULLEY ASSY.

PULLEY, spreader idler, 5-1/8 in. OD, refer to group 20 under straw spreader

1шт.

4

48252K

PULLEY ASSY.

PULLEY, spreader tightener, 4-3/4 in. OD, refer to group 20 under straw spreader

1шт.

5

171994C1

BELT,0.630" W x 207.71" L

V-BELT , Spreader drive, Refer to group 20 under straw spreader 0.630" W x 207.71" L

1шт.

6

171133C1

SPROCKET, cylinder 22T

1шт.

6

171191C1

SPROCKET, cylinder 25T

1шт.

6

158418C1

DRIVE SPROCKET

SPROCKET, cylinder 30T

1шт.

6

160121C1

SPROCKET ASSY.

SPROCKET, cylinder 35T

1шт.

6

158421C1

SPROCKET, cylinder 48T

1шт.

6

158420C1

SPROCKET, cylinder 54T, refer to group 21 under cylinder chain drive and slip clutch

1шт.

7

172076C91

SPROCKET ASSY, cylinder drive chain tightener, 20T, for edible bean, refer to group 21 under cylinder drive and slip clutch

1шт.

8

CHAIN ASSY, cylinder dr double roller, use 79 links from 10 ft roll marked 1355D, 1 two pitch offset connecting links 570988R91, four connecting links 569206R91 and 2 roller links 1316D

1шт.

8

CHAIN ASSY, cylinder drive extension, use 5 links from 10 ft roll marked 1355D, three connecting links 569206R91 one two pitch combination offset connecting link 570988R91 and two roller link 1316D, refer to group 21 under cylinder drive and slip clutch

1шт.

9

171100C1

PULLEY, jackshaft drive or driven, 14 in. OD

1шт.

9

171112C1

PULLEY, variable driven primary, 11.15 in. OD

1шт.

9

174991C1

PULLEY, jackshaft drive, 5-7/8 in. OD

1шт.

9

174992C1

PULLEY, jackshaft drive, 8-3/4 in. OD, refer to group 21 under variable cylinder drive

1шт.

10

171112C1

PULLEY, variable cylinder driven, 11.15 in. OD

1шт.

10

174339C1

PULLEY, variable cylinder driven, 9-1/4 in. OD, fast speed

1шт.

10

174994C1

PULLEY, variable cylinder driven, 17-13/32 in. OD, slow speed, refer to group 21 under variable cylinder drive

1шт.

11

174757C1

PULLEY

ASSY, primary cylinder drive belt tightener, 8 in. OD, refer to group 21 under variable cylinder drive

1шт.

12

171101C2

BELT,0.630" W x 98.00" L, 4 Ribs

V-BELT , Variable cylinder drive primary, For edible bean 0.630" W x 98.00" L, 4 Ribs

1шт.

12

175307C1

BELT

variable cylinder drive primary, not edible bean, refer to group 21 under variable cylinder drive

1шт.

13

172712C11

PULLEY

variable cylinder drive, 20 in. OD, refer to group 21 under variable cylinder drive

1шт.

14

171097C11

PULLEY, variable cyl adjustable half dr, 18.5 in. OD

1шт.

14

171608C11

PULLEY, variable cyl fixed half drive, 18.5 in. OD, refer to group 21 under variable cylinder drive

1шт.

15

174756C1

PULLEY

variable cylinder dr tightener, 8 in. OD, refer to group 21 under variable cylinder drive

1шт.

16

171130C1

BELT,2.00" W x 114.98" L

V-BELT , Variable speed cylinder drive, Refer to group 21 under variable cylinder drive 2.00" W x 114.98" L

1шт.

17

171470C2

SPROCKET ASSY.

PULLEY AND SPROCKET, shaker shaft drive, 7 in. OD and 38T, refer to group 23 under grain pan, shaker shaft and drive

1шт.

18

171581C1

PULLEY, straw rack driven, 19 in. OD, for edible bean

1шт.

18

171647C1

PULLEY, straw rack driven, 17 in. OD, not edible bean, refer to group 22 under straw rack drive

1шт.

19

170945C1

PULLEY

straw rack drive idler, 7 in. OD, refer to group 22 under straw rack drive

1шт.

20

170951C11

PULLEY

W/BEARINGS, straw rack idler and fan drive, 7 in. and 8 in. OD, refer to group 22 under straw rack drive

1шт.

21

171338C1

BELT

straw rack and fan jackshaft dr, edible bean

1шт.

21

170948C1

BELT,0.490" W x 116.29" L, 2 Ribs

V-BELT , Straw rack and fan jackshaft drive, Not edible bean, Refer to group 22 under straw rack drive 0.490" W x 116.29" L, 2 Ribs

1шт.

22

553412R91

PULLEY ASSY, shaker shaft driven, 14 in. OD, edible bean

1шт.

22

564569R11

PULLEY ASSY.

PULLEY ASSY, shaker shaft driven, 12-3/4 in. OD, not edible bean, refer to group 23 under grain pan, shaker shaft and drive

1шт.

23

566519R91

PULLEY

ASSY, shaker shaft drive belt tightener, 6 in. OD, refer to group 23 under grain pan, shaker shaft and drive

1шт.

24

553079R1

V-BELT,0.66" W

Shaker shaft drive, For edible bean 0.66" W

1шт.

24

13988K

V-BELT,115.23" L

Shaker Shaft Drive, Not Edible Bean, Refer to Group 23 Under Grain Pan, Shaker Shaft and Drive 115.23" L

1шт.

25

174975C1

PULLEY

fan drive outer, 9-7/8 in. OD

1шт.

25

174976C1

PULLEY

fan drive center, 7-1/4 in. OD

1шт.

25

174975C1

PULLEY

fan drive inner, 9-7/8 in. OD, refer to group 24 under variable fan drive

1шт.

26

171472C1

PULLEY, fan driven, 7 in. OD, refer to group 24 under variable fan drive

1шт.

27

170954C11

V-BELT,1.00" W x 63.73" L

Fan drive matched pair, Refer to group 24 under variable fan drive 1.00" W x 63.73" L

1шт.

28

172614C1

PULLEY, elevator drive, 8 in. OD, refer to group 25 under elevator drive

1шт.

29

174733C1

PULLEY

ASSY, elevator driven, 10-1/2 in. OD, refer to group 25 under elevator drive

2шт.

30

174734C1

PULLEY

ASSY, leveling auger driven, 10-1/2 in. OD, refer to group 25 under elevator drive

1шт.

31

154742C91

PULLEY

ASSY, elevator dr belt tightener, 7-1/4 in. OD, refer to group 25 under elevator drive

1шт.

32

150434C1

V-BELT,0.88" W x 166.99" L

Elevator Drive, for Raised Leveling Auger 0.88" W x 166.99" L

1шт.

32

937928R1

V-BELT

Elevator drive, Not raised leveling auger, Refer to group 25 under elevator drive

1шт.

33

629166R1

SPROCKET ASSY.

SPROCKET, elevator jackshaft driven, 38T, refer to group 25 under elevator drive

1шт.

34

565442R91

SPROCKET

ASSY, elev jackshaft drive chain tightener, 17T, refer to group 25 under elevator drive

1шт.

35

CHAIN ASSY, elevator jackshaft drive, use 71 links from 10 ft roll marked 1791D and 1 connecting link 1310D, refer to group 25 under elevator drive

1шт.

36

632830R1

PULLEY

tailings delivery auger drive, 4-3/4 in. OD, refer to group 25 under tailings delivery dr and downspout

1шт.

37

633282R1

SHEAVE

PULLEY, tailings delivery auger driven, 4 in. OD, refer to group 25 under tailings delivery dr and downspout

1шт.

38

161430C91

PULLEY

ASSY, tailings delivery auger dr belt tightener, 4-3/8 in. OD, refer to group 25 under tailings delivery dr and downspout

1шт.

39

627297R1

V-BELT,0.63" W

Tailings delivery auger drive, Refer to group 25 under tailings delivery dr and downspout 0.63" W

1шт.

40

627895R1

PULLEY

unloader drive, 6-5/8 in. OD, belt drive

1шт.

40

175542C1

PULLEY

unloader drive, 8-1/2 in. OD, hydrostatic drive, refer to group 26 under grain tank unloader drive

1шт.

41

22784KA

PULLEY

ASSY, unloader driven, 21 in. OD, refer to group 26 under grain tank unloader drive

1шт.

42

154742C91

PULLEY

ASSY, tightener outer, 5 in. OD

1шт.

42

570265R91

PULLEY

ASSY, tightener inner, 7 in. OD, refer to group 26 under grain tank unloader drive

1шт.

43

559064R1

V-BELT,0.88" W

Unloader drive, Belt drive 0.88" W

1шт.

43

165676C1

V-BELT,0.88" W x 153.99" L

Unloader Drive, Hydrostatic Drive, Refer to Group 26 Under Grain Tank Unloader Drive 0.88" W x 153.99" L

1шт.

44

(Not used in this application)

1шт.

45

570032R1

SPROCKET ASSY.

SPROCKET, reel shaft, 29T

1шт.

45

168310C1

SPROCKET ASSY.

SPROCKET, reel driven, 50T, slow speed, refer to PFM-1 parts catalog section e under mechanical reel dr

1шт.

46

(Not used in this application)

1шт.

47

179034C1

SPROCKET W/BUSHINGS, jackshaft, refer to PFM-1 parts catalog section e under mechanical reel dr

1шт.

48

559168R91

PTO

PULLEY, chain idler, 3-1/2 in. OD, refer to PFM-1 parts catalog section e under mechanical reel dr

1шт.

49

CHAIN ASSY, reel drive, use 85 links from 10 ft roll marked 569089R91 and 2 connecting links 587372R91, 1 offset link 456929R91, 1 roller link 456979R91, refer to PFM-1 parts catalog section e under mechanical reel dr

1шт.

50

177659C1

RETAINER

SPROCKET W/RETAINER, refer to PFM-1 parts catalog section e under header auger and drive

1шт.

51

565442R91

SPROCKET

idler bearing, 17T, refer to PFM-1 parts catalog section e under mechanical reel dr

1шт.

52

CHAIN ASSY, jackshaft drive, use 89 links from 10 ft roll marked 1791D, 2 connecting links 1319D, 1 offset link 1315D and 1 roller link 1309D, refer to PFM-1 parts catalog section e under mechanical reel dr

1шт.
