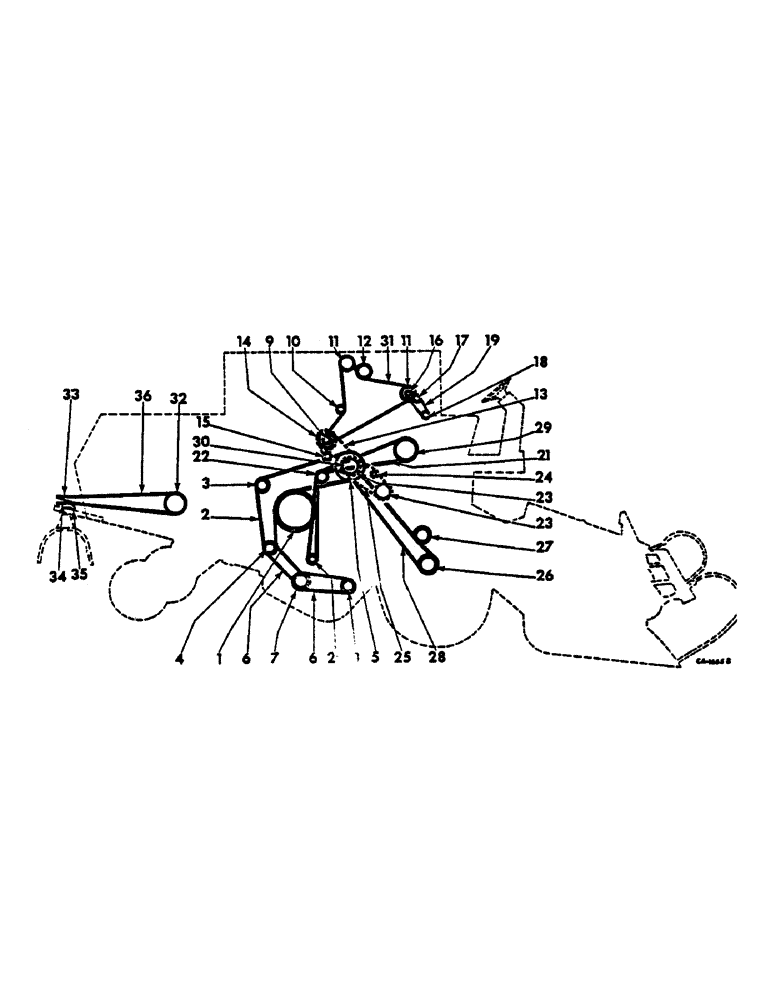

Запчасти Case IH 615 (02-07) - MISCELLANEOUS, BELT, CHAIN, PULLEY AND SPROCKET DIAGRAM, RIGHT SIDE, SER. NO. 8000 AND BELOW Accessories & Attachments / Miscellaneous

1

171647C1

PULLEY, straw rack driven, 17 in. OD, not edible bean

1шт.

1

171581C1

PULLEY, straw rack driven, 19 in. OD, for edible bean, refer to group 22 under straw rack drive

1шт.

2

170948C1

BELT,0.490" W x 116.29" L, 2 Ribs

V-BELT , Straw rack and fan jackshaft, Not edible bean 0.490" W x 116.29" L, 2 Ribs

1шт.

2

171338C1

BELT

straw rack and fan jackshaft, edible bean and slow speed, refer to group 22 under straw rack drive

1шт.

3

170945C1

PULLEY

straw rack drive idler, 7 in. OD, refer to group 22 under straw rack drive

1шт.

4

170954C11

V-BELT,1.00" W x 63.73" L

PULLEY ASSY, Straw rack idler and fan drive, 7 and 8 in. OD, Refer to group 22 under straw rack drive, Also refer to group 24 under variable fan drive

1шт.

5

171470C2

SPROCKET ASSY.

1шт.

PULLEY AND SPROCKET, elevator jackshaft drive sprocket, shaker shaft and fan and straw rack drive, 7 in. OD and 38 teeth, refer to group 22 under straw rack drive, refer to group 23 under grain pan, shaker shaft and drive, refer to group 25 under elevator drive

1шт.

6

170954C11

V-BELT,1.00" W x 63.73" L

Fan drive, Matched pair 1.00" W x 63.73" L

1шт.

7

174975C1

PULLEY

fan drive outer, 9-7/8 in. OD

1шт.

7

174976C1

PULLEY

fan drive center, 7-1/4 in. OD

1шт.

7

174975C1

PULLEY

fan drive inner, 9-7/8 in. OD, refer to group 24 under variable fan drive

1шт.

8

171472C1

PULLEY, fan driven, 7 in. OD, refer to group 24 under variable fan drive

1шт.

9

172614C1

PULLEY, elevator drive, 8 in. OD, refer to group 25 under elevator drive

1шт.

10

154742C91

PULLEY

ASSY, elevator drive belt tightener, 7-1/4 in. OD, refer to group 25 under elevator drive

1шт.

11

174733C1

PULLEY

ASSY, elevator driven, 10-1/2 in. OD, refer to group 25 under elevator drive

1шт.

12

174734C1

PULLEY

ASSY, leveling auger driven, 10-1/2 in. OD, refer to group 25 under elevator drive

1шт.

13

CHAIN ASSY, elevator jackshaft drive roller, use 71 links from 10 ft roll marked 1791D and one connecting link 1310D, refer to group 25 under elevator drive

1шт.

14

629166R1

SPROCKET ASSY.

SPROCKET, elevator jackshaft driven 38T, refer to group 25 under elevator drive

1шт.

15

565442R91

SPROCKET

ASSY, elevator jackshaft drive chain tightener 17T, refer to group 25 under elevator drive

1шт.

16

632830R1

PULLEY

tailings delivery auger, 4-3/4 in. OD, refer to group 25 under tailings delivery auger drive and downspout

1шт.

17

161430C91

PULLEY

ASSY, tailings delivery auger drive belt tightener, 4-7/8 in. OD, refer to group 25 under tailings delivery auger drive and downspout

1шт.

18

633282R1

SHEAVE

PULLEY, tailings delivery auger driven, 4 in. OD, refer to group 25 under tailings delivery auger drive and downspout

1шт.

19

627297R1

V-BELT,0.63" W

Tailings delivery auger drive, Refer to group 25 under tailings delivery auger drive and downspout 0.63" W

1шт.

20

627895R1

PULLEY

unloader drive, 6-5/8 in. OD, belt drive

1шт.

20

175542C1

PULLEY

unloader drive, 8-1/2 in. OD, hydrostatic drive, refer to group 26 under grain tank unloader drive and controls

1шт.

22

570265R91

PULLEY

ASSY, tightener inner, 7 in. OD

1шт.

22

154742R91

PULLEY ASSY, tightener outer, 5 in. OD, refer to group 26 under grain tank unloader drive and controls

1шт.

23

171191C1

SPROCKET, cylinder 25T, double

1шт.

23

158418C1

DRIVE SPROCKET

SPROCKET, cylinder 30T, double

1шт.

23

158421C1

SPROCKET, cylinder 48T, double

1шт.

23

171133C1

SPROCKET, cylinder 22T, double

1шт.

23

160121C1

SPROCKET ASSY.

SPROCKET, cylinder 35T, double

1шт.

23

158420C1

SPROCKET, cylinder 54T, double, refer to group 21 under cylinder drive and slip clutch

1шт.

24

172076C91

SPROCKET ASSY, cylinder drive chain tightener 20T, double, refer to group 21 under cylinder drive and slip clutch

1шт.

25

CHAIN ASSY, cylinder drive double, use 79 links from 10 ft roll marked 1355D, 1 two pitch offset connecting link 570988R91, 4 connecting links 569206R91 and 2 roller links 1316D

1шт.

CHAIN ASSY, cylinder drive double roller extension, use 5 links from 10 ft roll marked 1355D three connecting links 569206R1 one two pitch combination offset connecting link 570988R91 and two roller links 1316D, refer to group 21 under cylinder drive and slip clutch

1шт.

26

564569R11

PULLEY ASSY.

PULLEY, shaker shaft driven, 12-3/4 in. OD, not edible bean

1шт.

26

553412R91

PULLEY, shaker shaft driven, 14 in. OD, edible bean

1шт.

26

628503R1

PULLEY, shaker shaft drive, 11-5/8 in. OD, fast speed, refer to group 23 under grain pan, shaker shaft and drive

1шт.

27

566519R91

PULLEY

ASSY, drive belt tightener, 6 in. OD, refer to group 23 under grain pan, shaker shaft and drive

1шт.

28

13988K

V-BELT,115.23" L

Shaker Shaft Drive, Not Edible Bean 115.23" L

1шт.

28

553079R1

V-BELT,0.66" W

Shaker shaft drive, For edible bean 0.66" W

1шт.

28

561093R1

V-BELT,0.63" W

Shaker shaft drive, Fast speed, Refer to group 23 under grain pan, shaker shaft and drive 0.63" W

1шт.

29

22784KA

PULLEY

ASSY, unloader driven, 21 in. OD, refer to group 26 under grain tank unloader drive and controls

1шт.

30

171470C2

SPROCKET ASSY.

PULLEY AND SPROCKET, shaker shaft drive, 7 in. OD and 38T, refer to group 23 under grain pan, shaker shaft and drive

1шт.

31

937928R1

V-BELT

Elevator drive, Refer to group 25 under straw spreader

1шт.

32

2507KA

PULLEY, spreader drive, 7 in. OD, refer to group 20 under straw spreader

1шт.

33

17876K

PULLEY ASSY.

PULLEY, spreader idler, 5-1/8 in. OD, refer to group 20 under straw spreader

1шт.

34

48252K

PULLEY ASSY.

PULLEY, spreader tightener, 4-3/4 in. OD, refer to group 20 under straw spreader

1шт.

35

21712K

PULLEY ASSY.

PULLEY, spreader driven, 5-3/4 in. OD, refer to group 20 under straw spreader

1шт.

36

171994C1

BELT,0.630" W x 207.71" L

V-BELT , Spreader drive, Refer to group 20 under straw spreader 0.630" W x 207.71" L

1шт.
