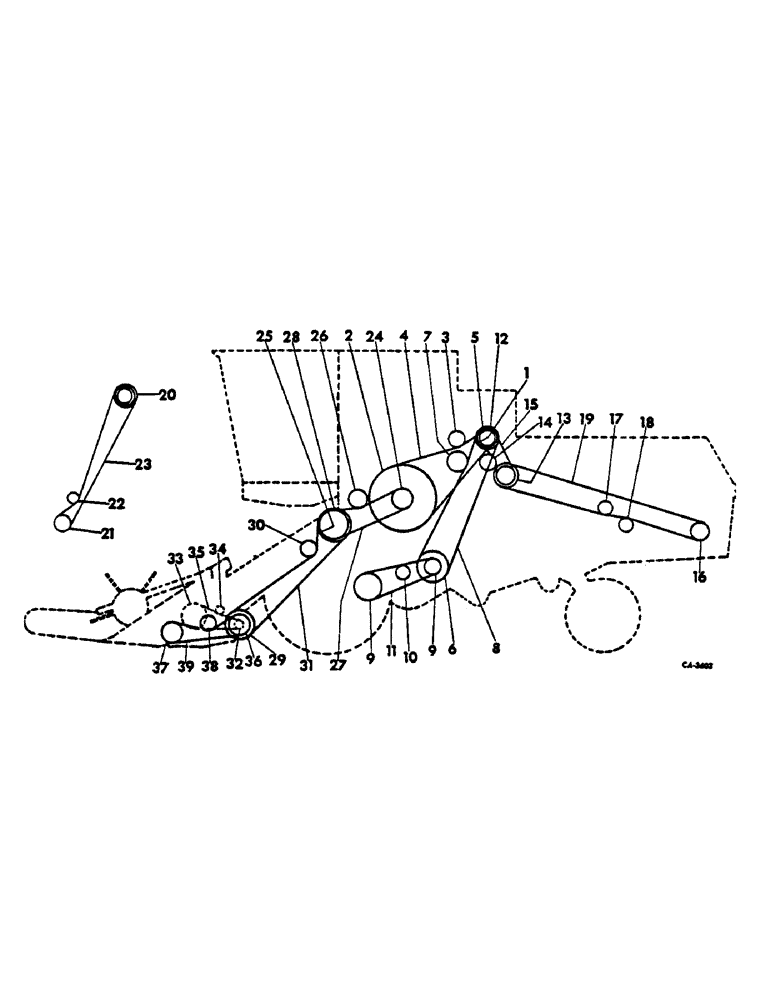

Запчасти Case IH 615 (02-05) - MISCELLANEOUS, BELT, CHAIN, PULLEY AND SPROCKET DIAGRAM, LEFT SIDE, SER. NO. 8001 AND ABOVE Accessories & Attachments / Miscellaneous

1

172922C1

PULLEY SEPARATOR & STRAW CHOPPER DRIVE, 8-5/8 in. OD, refer to group 7 under separator and propulsion jksht dr

1шт.

2

171435C1

PULLEY, separator driven, 31-1/2 in. OD, refer to group 7 under separator and propulsion jksht dr

1шт.

3

174756C1

PULLEY

ASSY, separator drive idler, 8 in. OD, refer to group 7 under separator and propulsion jksht dr

1шт.

4

171434C1

BELT,0.630" W x 167.49" L, 3 Ribs

V-BELT , Separator drive, Refer to group 7 under separator and propulsion, Jackshaft drive 0.630" W x 167.49" L, 3 Ribs

1шт.

5

174380C91

PULLEY W/SHAFT, propulsion jackshaft dr, 12-7/8 in. OD, belt drive, refer to group 7 under separator and propulsion jksht dr

1шт.

6

628883R1

PULLEY, propulsion jackshaft driven, 15 in. OD, belt drive, refer to group 7 under separator and propulsion jksht dr

1шт.

7

569193R11

PULLEY

ASSY, propulsion jackshaft drive belt tightener, 10-5/8 in. OD, belt drive, refer to group 7 under separator and propulsion jksht dr

1шт.

8

937931R1

V-BELT

Propulsion jackshaft drive, Belt drive, Refer to group 7 under separator and propulsion jksht dr

1шт.

9

628706R91

PULLEY ASSY, propulsion variable drive, 12 in. OD, belt drive

1шт.

9

574984R11

PULLEY ASSY, propulsion dr adjust half, 12 in. OD, belt drive, refer to group 7 under propulsion drive

1шт.

10

569963R1

PULLEY

propulsion dr belt tightener, 7-5/8 in. OD, belt drive, refer to group 7 under propulsion drive

1шт.

11

173109C1

BELT,1.50" W x 93.60" L

V-BELT , Propulsion drive, Belt drive, Refer to group 7 under propulsion drive 1.50" W x 93.60" L

1шт.

12

172922C1

PULLEY, separator & straw chopper drive, 8-5/8 in. OD, refer to group 20 under straw chopper

1шт.

13

172402C1

PULLEY, jackshaft, 12 in. OD, refer to group 20 under straw chopper

1шт.

14

156221C91

PULLEY ASSY.

PULLEY ASSY, jackshaft drive, 8-3/4 in. OD, refer to group 20 under straw chopper

1шт.

15

172373C1

BELT,0.879" W x 73.57" L

V-BELT , Jackshaft drive, Refer to group 20 under straw chopper 0.879" W x 73.57" L

1шт.

16

171261C11

PULLEY

ASSY, rotor driven, 9-3/4 in. OD, refer to group 20 under straw chopper drive

1шт.

17

574097R91

PULLEY

ASSY, idler, 7-5/16 in. OD, refer to group 20 under straw chopper drive

1шт.

18

156221C91

PULLEY ASSY.

PULLEY ASSY, rotor dr belt tightener, 8-3/4 in. OD, refer to group 20 under straw chopper

1шт.

19

172369C1

BELT,0.879" W x 222.35" L

V-BELT , Rotor drive, Refer to group 20 under straw chopper 0.879" W x 222.35" L

1шт.

20

171755C1

PULLEY, unloader jackshaft drive, 6-1/2 in. OD, refer to group 26 under grain tank unloader drive

1шт.

21

175544C1

PULLEY

unloader jackshaft driven, 11 in. OD, hydrostatic drive, refer to group 26 under grain tank unloader drive

1шт.

22

570265C91

PULLEY ASSY, unloader jackshaft drive belt tightener, 7 in. OD, hydrostatic drive, refer to group 26 under grain tank unloader drive

1шт.

23

175545C1

BELT,0.630" W x 158.91" L

V-BELT , Unloader, Jackshaft drive, Hydrostatic drive, Refer to group 26 under grain tank unloader drive 0.630" W x 158.91" L

1шт.

24

150493C11

PULLEY ASSY, feeder drive, 11.81 in. OD, belt drive

1шт.

24

171685C1

SPROCKET ASSY, feeder drive 26T, chain drive, refer to group 33 under feeder drive

1шт.

25

179492C1

PULLEY, feeder driven, 15 in. OD, belt drive

1шт.

25

175971C1

SPROCKET ASSY.

SPROCKET, feeder driven 36T, chain drive, refer to group 33 under feeder drive

1шт.

26

568941R11

PULLEY

ASSY, feeder drive tightener, 9-1/2 in. OD, belt drive

1шт.

26

632125R1

SPROCKET, feeder drive chain tightener, 20T, chain drive, refer to group 33 under feeder drive

1шт.

27

937932R1

BELT

V-BELT, Feeder drive

1шт.

27

CHAIN ASSY, feeder drive, use 2 sections of 41 links and 1 section of 39 links from 10 ft roll marked 1793D, 3 connecting links 1786D and 1 offset link 1318D, refer to group 33 under feeder drive

1шт.

28

176564C1

PULLEY

feeder jackshaft drive, 16-3/4 in. OD, single belt

1шт.

28

176574C1

PULLEY

feeder jackshaft drive, 16-3/4 in. OD, double belt, refer to group 33 under feeder jackshaft drive

1шт.

29

176562C1

PULLEY

feeder jackshaft driven, 13-1/2 in. OD, single belt

1шт.

29

176572C1

PULLEY

feeder jackshaft driven, 13-1/2 in. OD, double belt, refer to group 33 under feeder jackshaft drive

1шт.

30

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

ASSY, feeder jackshaft drive tightener, 8 in. OD, single belt

1шт.

30

176579C1

IDLER

ASSY, feeder jackshaft drive tightener, 8 in. OD, double belt, refer to group 33 under feeder jackshaft drive

1шт.

31

176565C1

BELT,0.879" W x 174.99" L

V-BELT , Feeder jackshaft drive, Single belt 0.879" W x 174.99" L

1шт.

31

176566C1

BELT

V-BELT, Feeder jackshaft drive, Double belt, Refer to group 33 under feeder jackshaft drive

1шт.

32

177965C1

SPROCKET ASSY.

SPROCKET, auger drive 18T, refer to PFM-1 parts catalog section e under header auger and drive

1шт.

33

177966C1

SPROCKET ASSY.

SPROCKET W/BUSHING, auger driven 47T, refer to PFM-1 parts catalog section e under header auger and drive

1шт.

34

571441R1

SPROCKET, idler 15T, refer to PFM-1 parts catalog section e under header auger and drive

1шт.

35

CHAIN ASSY, auger drive, use 87 links from 10 ft roll marked 611362R91, 1 connecting link 574532R91 and 1 offset link 612612R91, refer to PFM-1 parts catalog section e under header auger and drive

1шт.

36

939241R11

PULLEY ASSY.

PULLEY ASSY, drive, 10-1/2 in. OD, refer to PFM-1 parts catalog section e under knife and knife drive

1шт.

37

178032C1

PULLEY

rotory, 10-1/2 in. OD, refer to PFM-1 parts catalog section e under knife and knife drive

1шт.

38

565441R91

BEARING

PULLEY W/BEARING, idler, 8-3/4 in. OD, refer to PFM-1 parts catalog section e under knife and knife drive

1шт.

39

178019C1

BELT,0.879" W x 102.74" L

V-BELT , Drive, Refer to PFM-1 parts catalog section E under knife and knife drive 0.879" W x 102.74" L

1шт.
