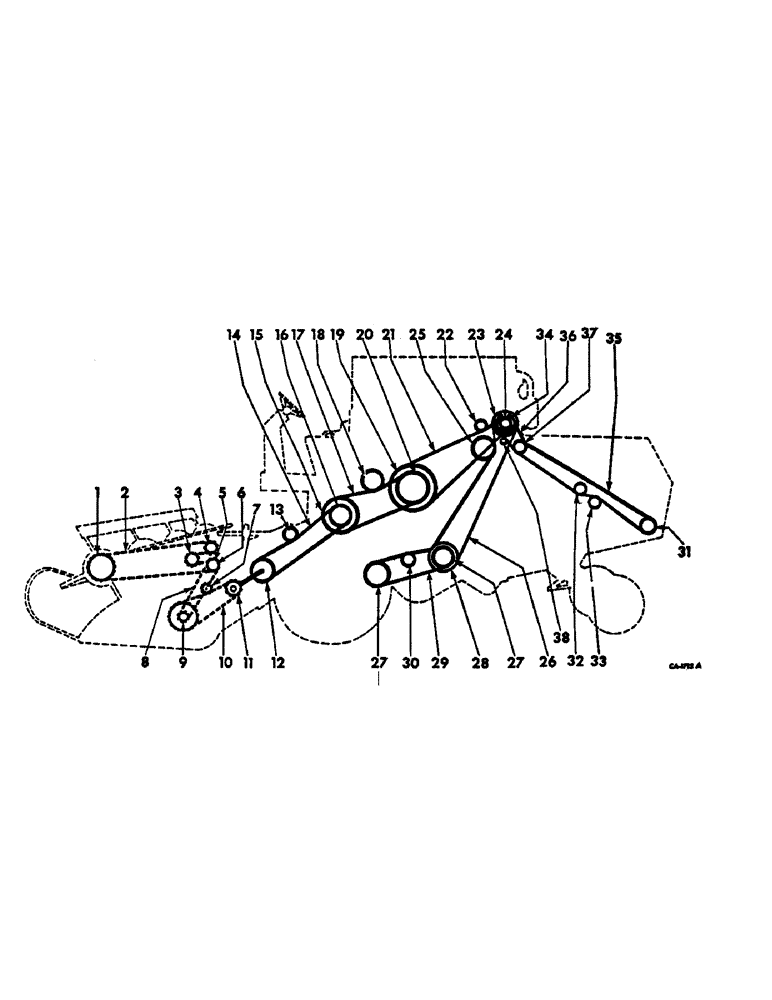

Запчасти Case IH 615 (02-02) - MISCELLANEOUS, BELT, CHAIN, PULLEY AND SPROCKET DIAGRAM, LEFT SIDE, SER. NO. 8000 AND BELOW Accessories & Attachments / Miscellaneous

1

570032R1

SPROCKET ASSY.

SPROCKET, reel shaft 29T, refer to PFM-1 parts catalog section c under reel support arms and drive

1шт.

2

CHAIN ASSY, reel drive roller, refer to PFM-1 parts catalog section c under reel support arms and drive

1шт.

3

564989R91

DRIVE SPROCKET

SPROCKET ASSY, reel drive chain tightener 9T, refer to PFM-1 parts catalog section c under auger and drive

1шт.

4

569017R1

SPROCKET ASSY.

SPROCKET, reel drive idler 8T, refer to PFM-1 parts catalog section c under reel support arms and drive

1шт.

5

569018R2

SPROCKET ASSY.

SPROCKET, reel idler driven 16T

1шт.

5

569019R2

DRIVE SPROCKET

SPROCKET, reel idler driven 14T

1шт.

5

569020R2

SPROCKET ASSY.

SPROCKET, reel idler driven 12T

1шт.

5

588771R2

SPROCKET ASSY.

SPROCKET, reel idler driven 19T, refer to PFM-1 parts catalog section c under reel support arm and drive

1шт.

6

569017R1

SPROCKET ASSY.

SPROCKET ASSY, reel drive idler 8T, refer to PFM-1 parts catalog section c under reel support arm and drive

1шт.

7

564989R91

DRIVE SPROCKET

SPROCKET ASSY, auger drive tightener 9T, 10T ft and 13 ft platform

1шт.

7

571441R91

SPROCKET ASSY.,15T

SPROCKET ASSY, auger drive tightener 14T, for 14 ft platform

1шт.

8

CHAIN ASSY, reel jackshaft drive roller, refer to PFM-1 parts catalog section c under platform auger drive

1шт.

9

172359C1

SPROCKET, auger driven and reel drive 27T for 10 ft and 13 ft platform

1шт.

9

156867C1

SPROCKET ASSY.

SPROCKET, auger driven and reel drive 45T for 14 ft platforms, refer to PFM-1 parts catalog section c under platform auger and drive

1шт.

10

CHAIN ASSY, platform auger drive roller, refer to PFM-1 parts catalog under platform auger drive

1шт.

11

633711R1

SPROCKET ASSY.

SPROCKET, platform auger and reel drive 10T, standard for 10 ft and 13 ft platforms

1шт.

11

633710R1

SPROCKET, platform auger and reel drive 16T, for 10 ft and 13 ft platforms

1шт.

11

165473C1

SPROCKET, platform auger and reel drive 13T, standard for 14 ft platform

1шт.

11

165474C91

SPROCKET, platform auger and reel drive 15T, for 14 ft platform, refer to PFM-1 parts catalog section c under platform auger drive

1шт.

12

574049R11

PULLEY ASSY, jackshaft driven, 11-1/4 in. OD, 10 ft and 13 ft platform, refer to PFM-1 parts catalog section c under jackshaft, platform 10 ft and 13 ft

1шт.

12

654592R1

PULLEY, jackshaft driven, 11-1/4 in. OD, 14 ft platform, refer to PFM-1 parts catalog section c under jackshaft, platform 14 ft

1шт.

13

566518R91

PULLEY,152.4mm Idler Dia x 171.45mm OD x 38.1mm W

ASSY, jackshaft drive tightener, 6-3/4 in. OD, 10 ft and 13 ft platforms, refer to PFM-1 parts catalog section c under jackshaft, platform 10 ft and 13 ft platform

1шт.

13

568941R11

PULLEY

ASSY, jackshaft drive tightener, 9-1/2 in. OD, 14 ft platform, refer to PFM-1 parts catalog section c under jackshaft, platform 14 ft

1шт.

14

567252R1

V-BELT,0.88" W

Platform jackshaft drive, short feeder, 10 ft platform 0.88" W

1шт.

14

171263R1

BELT, platform jackshaft drive, long feeder, 13 ft platform, refer to PFM-1 parts catalog section c under jackshaft, platform 13 ft

1шт.

14

171776C1

BELT, platform jackshaft drive, short feeder, 13 ft platform

1шт.

14

171346C1

BELT,1.259" W x 146.38" L

V-BELT , Platform jackshaft drive, Long feeder, 14 ft platform, Refer to PFM-1 parts catalog section C under jackshaft, Platform 14 ft 1.259" W x 146.38" L

1шт.

15

564568R11

PULLEY ASSY, jackshaft drive, 15-1/2 in. OD, 10 ft and 13 ft platform, refer to PFM-1 parts catalog section c under jackshaft, platform 10 ft and 13 ft

1шт.

15

568937R21

PULLEY

ASSY, jackshaft drive, 15-1/2 in. OD, 14 ft platform, refer to PFM-1 parts catalog section c under jackshaft, platform 14 ft

1шт.

16

568937R21

PULLEY

ASSY, feeder driven, 15-1/2 in. OD, refer to PFM-1 parts catalog section c under feeder drive, belt type

1шт.

17

937932R1

BELT

V-BELT, Feeder drive, Refer to PFM-1 parts catalog section C under feeder drive, belt type

1шт.

18

568941R11

PULLEY

ASSY, feeder drive tightener, 9-1/2 in. OD, refer to PFM-1 parts catalog section c under feeder drive, belt type

1шт.

19

171435C1

PULLEY, separator driven, 31-1/2 in. OD, refer to group 7 under separator and propulsion jackshaft drive

1шт.

20

150493C11

PULLEY ASSY, feeder drive, 11 in. OD, refer to PFM-1 parts catalog section c under feeder drive, belt type

1шт.

21

171434C1

BELT,0.630" W x 167.49" L, 3 Ribs

V-BELT , Separator drive, Refer to group 7 under separator and propulsion jackshaft drive, Bely drive 0.630" W x 167.49" L, 3 Ribs

1шт.

22

171228C11

PULLEY

ASSY, separator drive belt idler, 8 in. OD, serial no. 2580 and below

1шт.

22

174756C1

PULLEY

ASSY, separator drive belt idler, 8 in. OD, serial no. 2581 and above, refer to group 7 under separator and propulsion jackshaft drive, belt drive

1шт.

23

171473C1

PULLEY, propulsion jackshaft drive, 12-7/8 in. OD, serial no. 2580 and below

1шт.

23

174380C91

PULLEY W/SHAFT, propulsion jackshaft drive, 12-7/8 in. OD, serial no. 2581 and above, refer to group 7 under separator and propulsion jackshaft drive and propulsion drive, belt drive

1шт.

24

172922C1

PULLEY, separator drive, 8-5/8 in. OD, refer to group 7 under separator and propulsion jackshaft drive, belt drive

1шт.

25

569193R11

PULLEY

ASSY, propulsion jackshaft drive belt tightener, 7-5/8 in. OD, refer to group 7 under seperator and propulsion jackshaft drive, belt drive

1шт.

26

937931R1

V-BELT

Propulsion jackshaft drive, Refer to group 7 under separator and propulsion jackshaft drive and propulsion drive, belt drive

1шт.

27

574984R11

PULLEY ASSY, propulsion variable speed drive, adjustable half, 12 in. OD

2шт.

27

628706R91

PULLEY ASSY, propulsion variable speed drive, 12 in. OD, refer to group 7 under propulsion drive

1шт.

28

628883R1

PULLEY, propulsion jackshaft driven, 15 in. OD, refer to group 7 under separator propulsion jackshaft drive and propulsion drive

1шт.

29

173109C1

BELT,1.50" W x 93.60" L

V-BELT , Propulsion drive, Cog, Refer to group 7 under propulsion drive 1.50" W x 93.60" L

1шт.

30

569963R1

PULLEY

propulsion drive belt tightener, 7-5/8 in. OD, refer to group 7 under propulsion drive

1шт.

31

171261C11

PULLEY

ASSY, rotor drn, 9-3/4 in. OD, refer to group 20 under straw chopper drive

1шт.

32

574097R91

PULLEY

ASSY, rotor drive idler, 7-5/16 in. OD, refer to group 20 under straw chopper drive

1шт.

33

156221C91

PULLEY ASSY.

PULLEY ASSY, rotor drive tightener, 8-3/4 in. OD, refer to group 20 under straw chopper drive

1шт.

34

172922C1

PULLEY, straw chopper drive, refer to group 20 under straw chopper drive

1шт.

35

172369C1

BELT,0.879" W x 222.35" L

V-BELT , Rotor drive, Refer to group 20 under straw chopper drive 0.879" W x 222.35" L

1шт.

36

172373C1

BELT,0.879" W x 73.57" L

V-BELT , Jackshaft drive, Refer to group 20 under straw chopper 0.879" W x 73.57" L

1шт.

37

172402C1

PULLEY, jackshaft, 12 in. OD, refer to group 20 under straw chopper

1шт.

38

156221C91

PULLEY ASSY.

PULLEY ASSY, jackshaft drive tightener, 8-3/4 in. OD, refer to group 20 under straw chopper

1шт.
