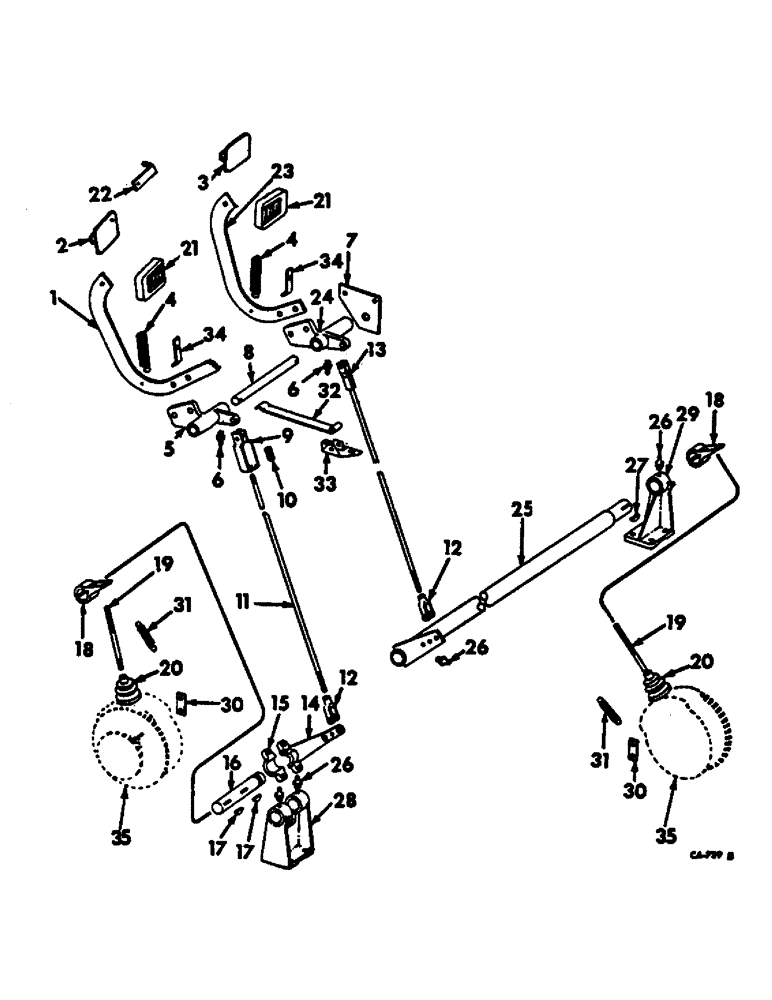

Запчасти Case IH 615 (04-02) - BRAKES, BRAKE PEDAL AND LINKAGE (5.1) - BRAKES

1

163428C1

LEVER, left wheel brake pedal

1шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 C-Z hex-hd mach

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

163426C1

PEDAL

left wheel brake lever

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

163427C1

PEDAL

right wheel brake lever

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

228

SPRING

brake arm return

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

5

938874R1

PIVOT, left wheel brake pedal lever

1шт.

6

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

7

633468R1

PLATE, brake arm pivot shaft support

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

8

938880R1

SHAFT

brake arm pivot

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

217761R1

WASHER, 29/32 x 1-1/2 x 16 ga C-Z

8шт.

9

633469R1

YOKE, left wheel brake spring

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.

10

633479R1

SPRING, left wheel brake

1шт.

11

939237R1

ROD, left wheel brake pull

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

3шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

12

144243

CLEVIS

3/8-24 C-Z adjusting rod end

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 C-Z rod end

2шт.

13

939238R91

ROD ASSY, lower brake pull RH

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

138084

SPLIT PIN/SAFETY PIN

PIN, 3/8 x 1-3/32 C-Z rod end

1шт.

14

633499R11

ARM ASSY, brake inner left

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

15

CAP, brake inner left arm, order 633499R11 arm assy ref no 14

1шт.

16

633475R1

SHAFT, brake lower left arm

1шт.

17

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

2шт.

18

633477R1

ARM, brake lower outer

2шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

19

633474R1

STUD

ROD, brake lower pull

2шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

4шт.

354630R1

NUT

brake lower pull rod

2шт.

20

381699R1

BOOT

brake housing

2шт.

21

863426R1

PAD

wheel brake pedal

2шт.

22

614251R11

BAR

PLATE ASSY, brake pedal lock

1шт.

137180

COTTER PIN,1/8" x 7/8"

PIN, SPLIT (COTTER), 1/8" x 7/8"

1шт.

23

163429C1

LEVER, right wheel brake pedal

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 flange lock

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

24

938877R1

PIVOT, right wheel brake pedal arm

1шт.

25

633482R91

TUBE ASSY, right whl brkt piv

1шт.

26

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 straight lub

4шт.

27

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

2шт.

28

633689R1

HOUSING, brake piv left

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

29

633690R1

HOUSING, brake pivot right

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

30

634109R1

CLIP, brake arm spring return

2шт.

31

165

SPRING

brake outer arm

2шт.

32

631195R91

PAWL ASSY, left wheel brake pedal

1шт.

33

564620R91

PIVOT ASSY, left wheel brake pedal pawl

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21910R1

PIN, 5/16 x 1-3/4 C-Z std-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

34

938869R1

STRIP, wheel brake lever stop

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

35

BRAKE ASSY, wheel, refer to group 7 under final drive and wheel brakes

1шт.
