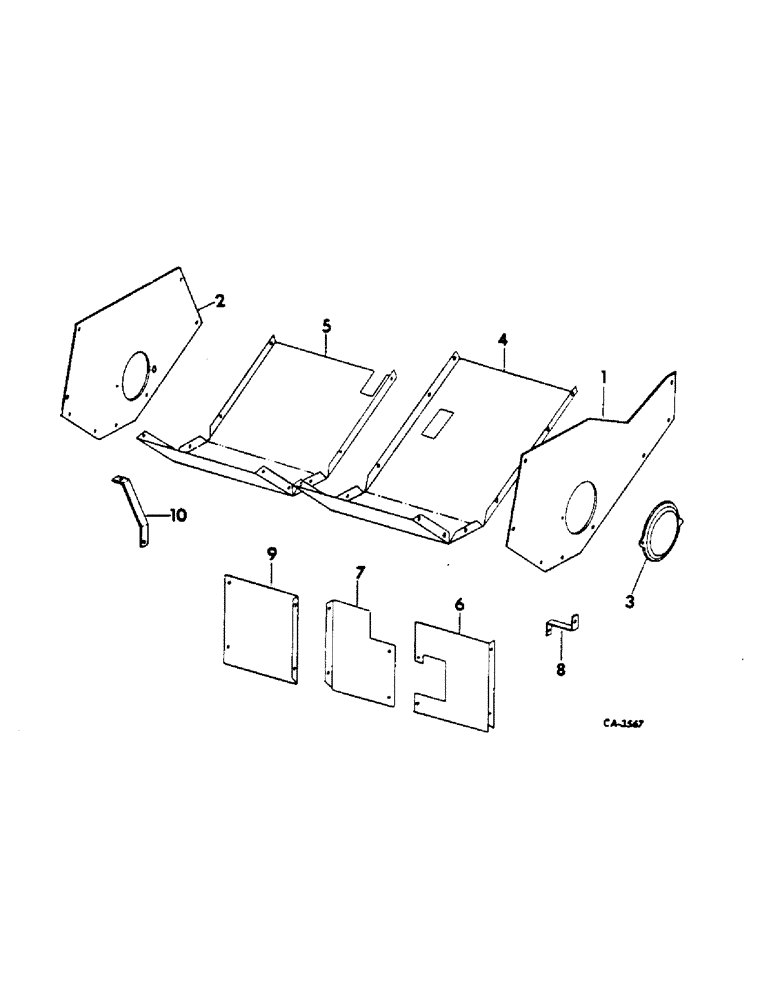

Запчасти Case IH 615 (24-09) - CLEANING FAN, FAN SHIELDS, SERIAL NO. 8001 AND ABOVE (15) - CLEANING

1

179140C1

SHIELD, fan LH

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 hex-hd

9шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

2

179141C1

SHIELD, fan RH

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 hex-hd

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

3

551104R1

FLAP

DOOR, clean out

2шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 hex-hd

2шт.

22468R1

BOLT,Hex, 7/8" - 9 x 11", Gr 5

NUT, 1/4 nylon insert torque

2шт.

4

179142C1

SHIELD ASSY, fan bottom LH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

6шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

6шт.

5

179144C1

SHIELD ASSY, fan bottom RH

1шт.

564266R1

NUT

5/16 weld

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

5шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

5шт.

6

179130C1

SHIELD ASSY, fan front outer LH, for belt drive

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

2шт.

6

179132C1

SHIELD ASSY, fan front outer LH, for hydrostatic drive, serial number 12000 and below

1шт.

564266R1

NUT

5/16 weld

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

2шт.

7

179146C1

SHIELD, fan front inner LH, for belt drive

1шт.

7

179147C1

SHIELD, fan front inner LH, for hydrostatic drive, serial number 12000 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

8

179136C1

SUPPORT, fan shield LH

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 hex-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

9

179148C1

SHIELD ASSY, fan front RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

1шт.

10

179139C1

SUPPORT, fan shield RH

1шт.
