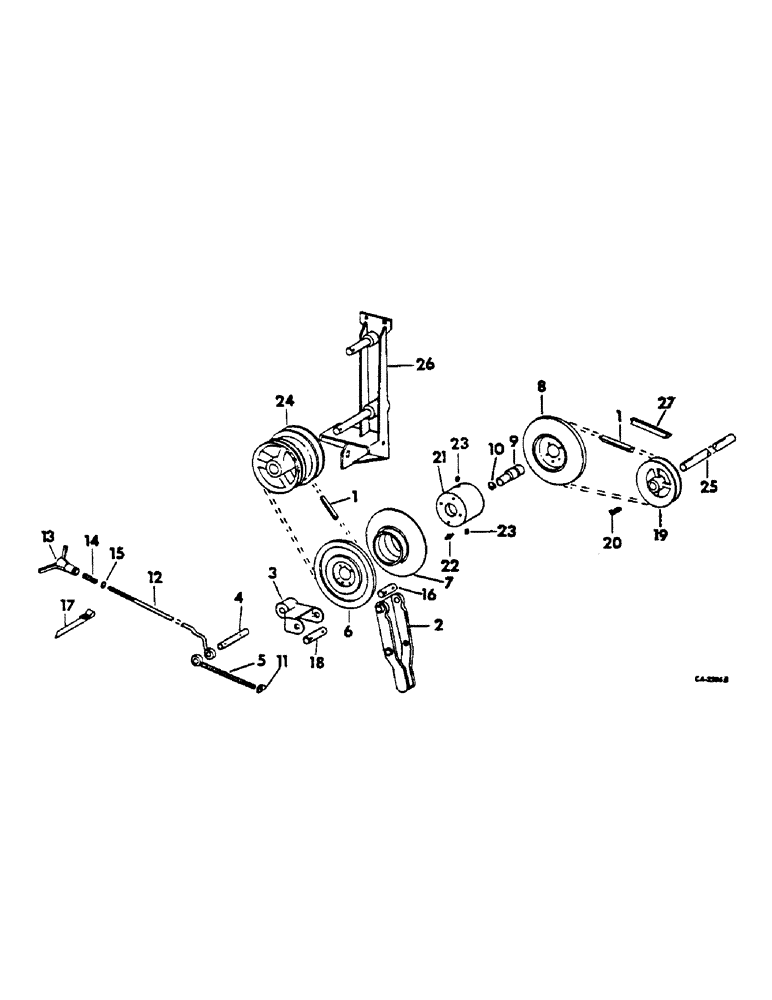

Запчасти Case IH 615 (24-06) - CLEANING FAN, VARIABLE FAN DRIVE, SERIAL NO. 3291 AND ABOVE (15) - CLEANING

1

170954C11

V-BELT,1.00" W x 63.73" L

Fan drive matched pair, Consists of 2 belts, Must be serviced in pairs 1.00" W x 63.73" L

1шт.

2

174972C1

SUPPORT, variator upper

1шт.

3

174973C1

SUPPORT, variator upper

1шт.

4

174974C1

STUD

variable pulley bearing support

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Split (Cotter), 1/4" x 2 1/2"

1шт.

5

170958C1

BOLT, fan drive variator draw

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 znd hex. jam

1шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z

1шт.

6

174975C1

PULLEY

fan drive outer, 9-7/8 in. OD

1шт.

7

174976C1

PULLEY

fan drive center, 7-1/4 in. OD

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 znd hex-hd cap

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

8

174975C1

PULLEY

fan drive inner, 9-7/8 in. OD

1шт.

9

343768R91

BEARING

ASSY, variator pulley

1шт.

10

359306R1

RING

variator pulley bearing snap

1шт.

11

173879C1

WASHER, fan drawbolt

1шт.

12

174977C1

BOLT, fan speed control

1шт.

13

169705C1

HANDLE

fan speed control

1шт.

591715R1

WASHER

1-1/32 x1-1/2 x 16 ga C-Z

1шт.

14

12209D

SPRING

fan speed control rod

1шт.

15

454417R1

SNAP RING,#100, Ext

Ring, Snap, , fan speed control handle #100, Ext

1шт.

16

173882C1

PIN

variator upper support pivot

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

21753R1

WASHER

25/32 x 1-1/2 x 16 ga

1шт.

17

175306C1

STRAP, fan speed indicator

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18

173883C1

PIN, variator lower support pivot

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

21753R1

WASHER

25/32 x 1-1/2 x 16 ga

1шт.

19

171472C1

PULLEY, fan driven, 7 in. OD

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20

Q3930

KEY,Gib, 5/16" Sq x 1 3/4"

5/16 x 1-3/4 gib

1шт.

21

174978C1

HUB

fan drive pulley

1шт.

22

126131

FITTING

1/4-28NF str lub

1шт.

23

617077R1

WICK

lubricating

2шт.

24

PULLEY, straw rack idler & fan drive, refer to group 22 under straw rack drive unit for listing

1шт.

25

SHAFT, fan, refer to group 24 under cleaning fan & wind deflectors for listing

1шт.

26

SUPPORT, straw rack drive idler, refer to group 22 under straw rack drive unit for listing

1шт.
