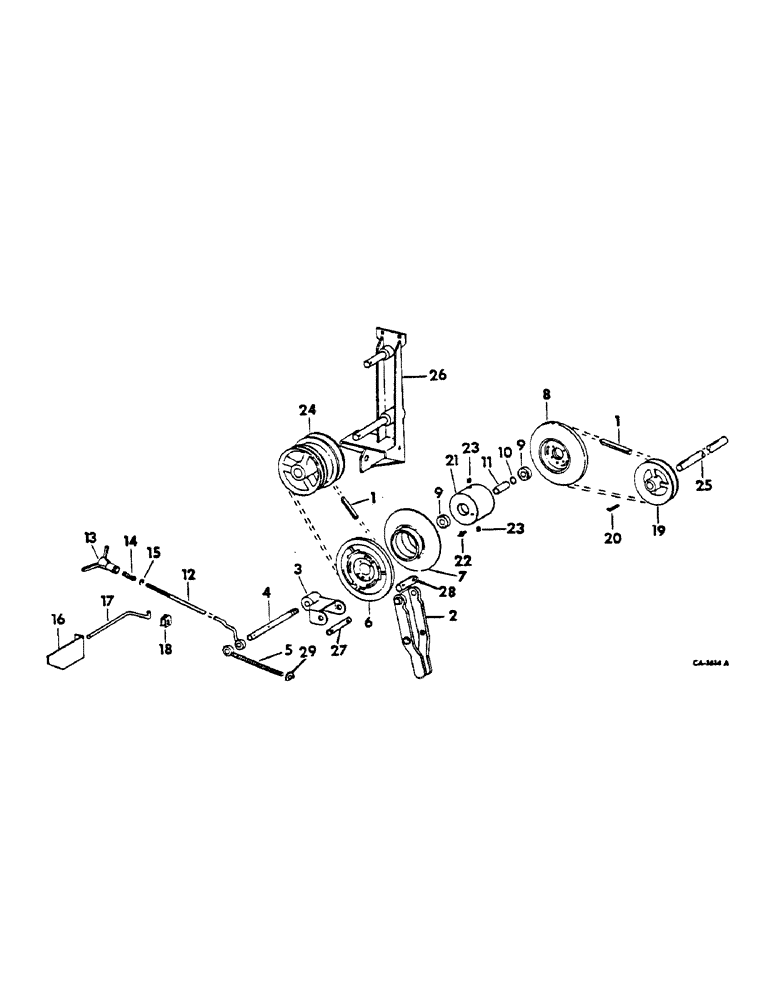

Запчасти Case IH 615 (24-04) - CLEANING FAN, VARIABLE FAN DRIVE, SERIAL NO. 3290 AND BELOW (15) - CLEANING

1

170954C11

V-BELT,1.00" W x 63.73" L

Fan drive matched pair, Consists of 2 belts, Must be serviced in pairs 1.00" W x 63.73" L

1шт.

2

170955C1

SUPPORT, variator upper

1шт.

173882C1

PIN

3/4 x 5-1/2

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

3

170956C1

SUPPORT, variator lower

1шт.

173883C1

PIN, 3/4 x 5-1/8

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

4

172268C1

STUD, variable pulley brg support

1шт.

426099

NUT,3/4"-16, G5

3/4-16 znd hex.

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

19479R1

PIN,1/4" x 2", Coiled

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga C-Z

1шт.

5

170958C1

BOLT, fan drive variator draw

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 C-Z hex. jam

1шт.

460908

WASHER, 17/32 x 1-1/2 x 11 ga C-Z

1шт.

6

164223C1

PULLEY

fan drive outer, 9-7/8 in. OD

1шт.

7

164221C1

PULLEY

fan drive center, 7-1/4 in. OD

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 znd hex-hd cap

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

8

164222C1

PULLEY

fan drive inner, 9-7/8 in. OD

1шт.

9

586156R91

BEARING

ASSY, variator pulley

2шт.

10

357323R1

RING, SNAP

RING, variator pulley brg snap

1шт.

11

168566C1

SPACER,1" Tube x 1 7/8"

variator pulley brg

1шт.

12

170964C1

BOLT, fan speed control

1шт.

13

169705C1

HANDLE

fan speed control

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

1шт.

14

12209D

SPRING

fan speed control rod

1шт.

15

454417R1

SNAP RING,#100, Ext

Ring, Snap, , fan speed control handle #100, Ext

1шт.

16

170966C1

BAR, fan speed indicator support

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

170968C1

ROD, fan speed indicator

1шт.

18

167325C11

CLAMP

ASSY, fan speed indicator

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd mach

1шт.

109084

NUT,1/4"-20, G5

1шт.

19

171472C1

PULLEY, fan driven, 7 in. OD

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20

Q3930

KEY,Gib, 5/16" Sq x 1 3/4"

5/16 x 1-3/4 gib

1шт.

21

172267C1

HUB, fan drive pulley

1шт.

22

126131

FITTING

1/4-28NF str lub

1шт.

23

617077R1

WICK

lubricating

2шт.

24

PULLEY AND SPROCKET, straw rack idler and fan drive, 7-1/16 in. OD and 38 T, refer to straw rack drive group 21 for unit listing

1шт.

25

SHAFT, fan, refer to fan, fan wind deflector and rotary screen fan hub for unit listing

1шт.

26

SUPPORT W/SHAFT, straw rack drive idler, refer to straw rack drive for unit listing

1шт.

27

173883C1

PIN, variator lower support pivot

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

21753R1

WASHER

25/32 x 1-1/2 x 16 ga C-Z

4шт.

28

173882C1

PIN

variator upper support pivot

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

21753R1

WASHER

25/32 x 1-1/2 x 16 ga C-Z

4шт.

29

173879C1

WASHER, fan drawbolt

1шт.
