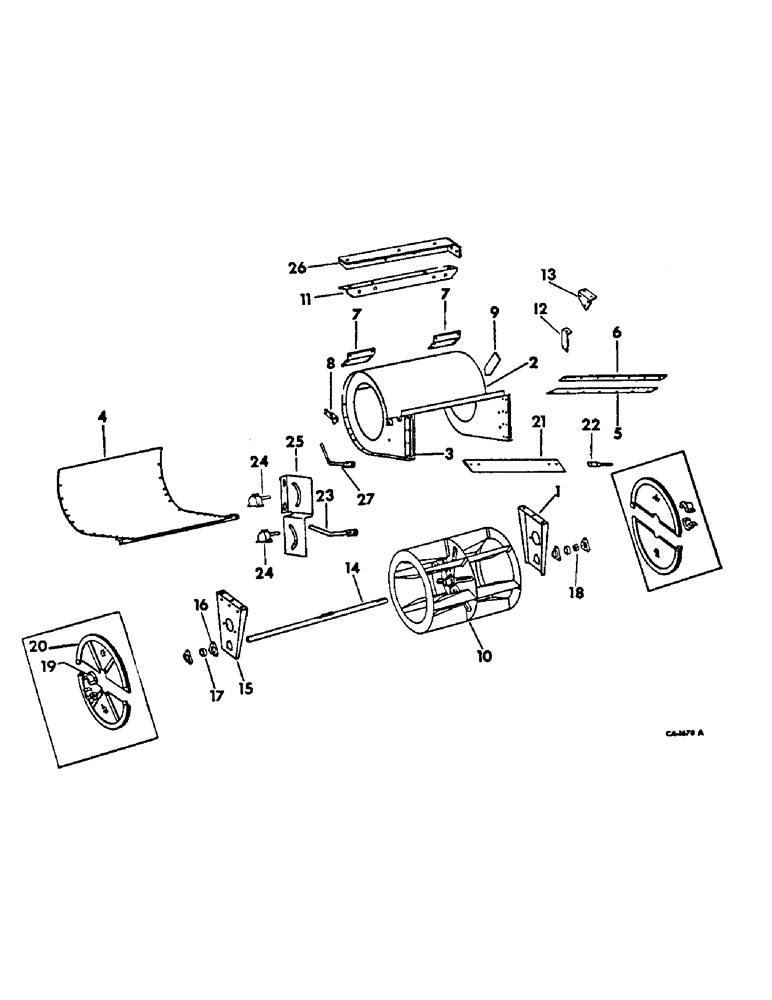

Запчасти Case IH 615 (24-02) - CLEANING FAN, FAN AND FAN WIND DEFLECTOR (15) - CLEANING
№
Артикул
Название
Примечание
Количество
1
628127R1
BRACKET, fan shaft bearing RH, chain drive, serial number 12000 and below
1шт.
1
171609C1
BRACKET, fan shaft bearing RH, variable cylinder drive
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 znd sq-nk crg
3шт.
18707R1
CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2
BOLT, 1/2 x 1 znd sq-nk crg
3шт.
120376
NUT,5/16"-18, G5
3шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
3шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
120384
WASHER,1/2"
LOCK, 1/2"
3шт.
607895R1
WASHER
17/32 x 1 x 11 ga znd
3шт.
2
155687C93
HOUSING
ASSY, fan, includes ref nos 9 and 9
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk crg
8шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 znd sq-nk crg
3шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
34шт.
120376
NUT,5/16"-18, G5
11шт.
470-1258
SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"
1/4 x 1/2 C-Z slt-pan-hd
27шт.
453049
SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"
1/4 x 3/4 C-Z slt-pan-hd
7шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
34шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
11шт.
4
564226R91
COVER ASSY, fan housing lower
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
4шт.
470-1258
SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"
1/4 x 1/2 C-Z pan-hd slt mach
4шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
5
155690C1
SEAL, gr pan center
1шт.
6
564243R1
SUPPORT, center seal
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
7шт.
453049
SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"
1/4 x 3/4 C-Z pan-hd slt mach
7шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
7шт.
7
629434R1
BRACKET, fan housing front support
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
8
629433R1
SUPPORT, fan housing left rear, hydrostatic drive transmission, serial number 12000 and below
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
SCREW, 5/16 x 3/4 znd hex-hd cap
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
8
174578C1
SUPPORT ASSY, fan housing left rear, belt drive transmission
1шт.
180126
BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5
SCREW, 3/8 x 1-1/2 znd hex-hd cap
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
9
155678C1
SEAL
grain pan and shoe side
2шт.
551646R1
NAIL, no. 13 ga x 7/8
8шт.
10
564208R91
FAN ASSY
1шт.
187969R1
BOLT, 5/16 x 2-1/2 hex-hd
4шт.
120376
NUT,5/16"-18, G5
4шт.
124824
NUT,Hex, 5/16" - 18
5/16 C-Z hex. jam
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
170327
SCREW, 5/16 x 1 znd sq-hd cup-pt set
1шт.
11
628130R1
SUPPORT, fan housing front, chain drive, serial number 12000 and below
1шт.
17140R1
CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd
BOLT, 1/2 x 1-1/4 znd sq-nk crg
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
12
629909R1
SUPPORT, fan housing rear right, serial no. 3290 and below
1шт.
152257C2
BOLT, 1/2 x 1-1/4 C-Z half-hd crg
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
13
629910R1
BRACKET, fan housing rear right support, serial no. 3290 and below
1шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT, 3/8 x 1 C-Z sq-nk crg
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
120394
WASHER,3/8", SAE
WASHER, .41 x .81 x .06 C-Z
6шт.
14
564214R11
SHAFT ASSY, fan
1шт.
15
628126R1
BRACKET, fan shaft brg left
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk crg
3шт.
18707R1
CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2
BOLT, 1/2 x 1 C-Z sq-nk crg
3шт.
120376
NUT,5/16"-18, G5
3шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
3шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
120384
WASHER,1/2"
LOCK, 1/2"
3шт.
495-11053
WASHER,1/2", SAE
17/32 x 1-11/16 x 12 ga C-Z
3шт.
16
571424R1
FLANGE
fan shaft brg
4шт.
17
666589R91
BALL BEARING,25.4mm ID x 52mm OD x 15mm W
BEARING ASSY, fan shaft
2шт.
18
455102R11
COLLAR
ASSY, w/set screw
1шт.
127782
SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt
1шт.
19
632803R1
HUB, half rotary screw fan, separator fan rotary screen, not for use in corn, serial no. 8000 and below
1шт.
18765R1
BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2
5/16 x 1-1/2 C-Z hex-hd mach
4шт.
120376
NUT,5/16"-18, G5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
20
632806R91
DEFLECTOR
SCREEN ASSY, fan half, separator fan rotary screen, not for use in corn, serial no. 8000 and below
1шт.
18763R1
BOLT,Hex, 5/16" - 18 x 1/2", Gr 2
5/16 x 1/2 C-Z hex/hd mach
8шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
21
587505R1
DEFLECTOR, fan wind
2шт.
22
565474R1
ROD
deflector blade right
2шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z whiz lock
4шт.
937875R1
SCREW,Serr, 1/4" - 20
1/4 x 3/4 C-Z slt-truss-hd
4шт.
23
171651C1
LEVER, fan deflector lower
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z whiz lock
2шт.
18530R1
LOCK PIN,1/8" x 1 1/2", Slotted
Pin, 1/8" x 1 1/2", Slotted
1шт.
937875R1
SCREW,Serr, 1/4" - 20
1/4 x 3/4 C-Z slt-truss-hd
2шт.
24
170971C1
BOLT
KNOB, fan deflector control
2шт.
120217
LOCK WASHER,#10
WASHER, LOCK, #10
2шт.
120391
WASHER,#10
7/32 x 1/2 x .036 C-Z
4шт.
25
171649C1
BRACKET, fan deflector
1шт.
17411R1
BOLT,Hex, 5/16"-18 X 3/4", G2
5/16 x 3/4 C-Z hex-hd mach
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
26
171611C1
SUPPORT ASSY, fan housing front, variable cylinder drive
1шт.
17140R1
CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd
BOLT, 1/2 x 1-1/4 znd sq-nk crg
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
27
171650C1
LEVER, fan deflector upper
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z whiz lock
2шт.
18530R1
LOCK PIN,1/8" x 1 1/2", Slotted
Pin, 1/8" x 1 1/2", Slotted
1шт.
937875R1
SCREW,Serr, 1/4" - 20
1/4 x 3/4 C-Z slt-truss-hd
2шт.
Выбрано товаров: 101
