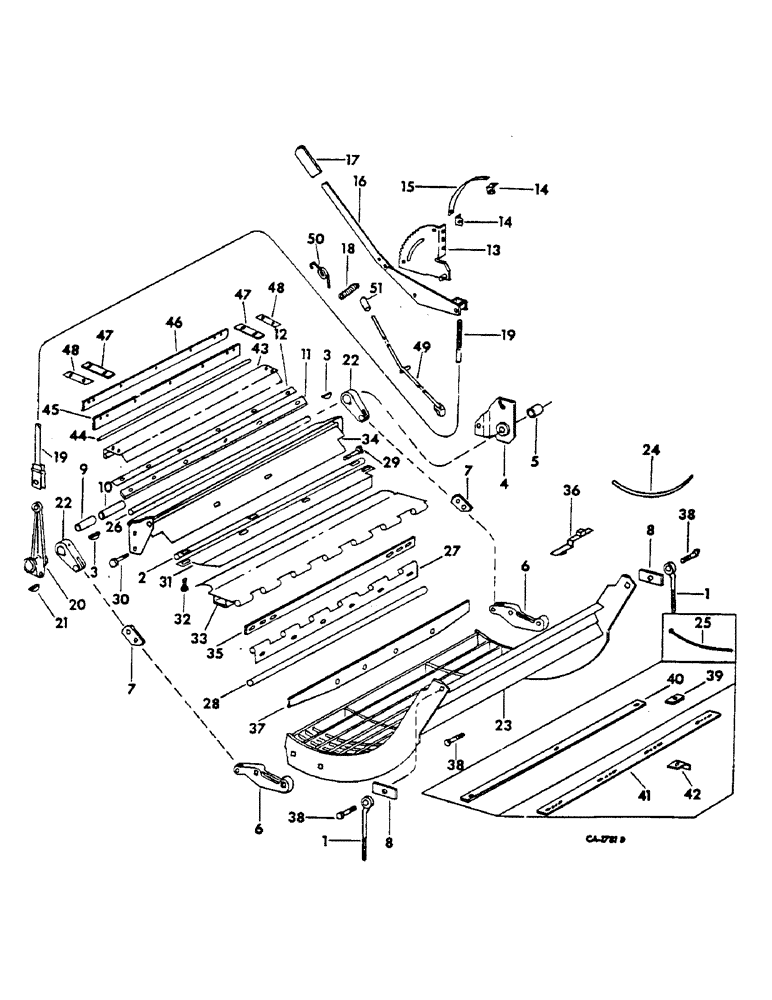

Запчасти Case IH 615 (21-21) - THRESHING CYLINDER AND CONCAVE, CONCAVE AND CONTROLS, SERIAL NO. 2581 AND ABOVE (14) - THRESHING

935166R91

PARTS ACCESSORSY, concave filler bar set of 3 bars, consists of ref nos. 39 and 40

1шт.

1

564031R1

BOLT,Adj, 1/2" - 13 x 7.62", Cl 5

concave rear adjusting

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

4шт.

2

171646C2

SHAFT, concave adjusting

1шт.

3

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff

2шт.

4

170927C1

BRACKET ASSY, concave leveling, includes ref no. 5

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

3/8 C-Z hex

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

614452

WASHER, 13/32 x 1-1/4 x 11 ga

1шт.

5

157560C1

BUSHING

concave leveling

1шт.

6

158004C2

LEVER

concave front support

2шт.

166051

SPARE PART

BOLT, 5/8 x 2-1/4 plow

1шт.

21434R1

NUT,5/8"-11, G8

5/8 znd hex type 8

4шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/64 C-Z rod end

1шт.

366866R1

RING

WASHER, 5/8 znd rib lock

4шт.

7

157871C2

BAR

concave front support

2шт.

8

565572R1

SEALING STRIP

concave rear adjusting bolt slot

2шт.

9

25410R1

SPACER,1/4" Pipe x 2 1/2"

1/4 x 3-1/4 std pipe, serial no. 8000 and below, used outer on feeder hinge rod

2шт.

10

2333F

SPACER, 1/4 x 2-3/4 std pipe, serial no. 8000 and below, used inner on feeder hinge rod

3шт.

11

171579C1

SEAL, feeder, serial no. 8000 and below

1шт.

12

171580C1

RETAINER, feeder seal, serial no. 8000 and below

1шт.

13

631562R21

QUADRANT ASSY, concave adjusting

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

14

631818R1

CLIP, concave quadrant indicator

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

633640R1

INDICATOR, concave quadrant

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 znd hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

190136C1

LEVER

ASSY, concave control

1шт.

17

938885R1

GRIP

concave adjusting lever

1шт.

18

397

SPRING, concave adjusting lever

1шт.

12717R1

BOLT, 3/8 x 2-1/2 sq-nk crg

1шт.

425-126

SLOTTED NUT,3/8"-16, G5

NUT, 3/8 C-Z slt-hex

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

614452R1

WASHER

17/32 x 1-1/4 x 11 ga

1шт.

19

170932C1

YOKE ASSY, concave control

1шт.

426099

NUT,3/4"-16, G5

3/4-16 znd hex

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

20614R1

CLEVIS PIN,9.53mm OD x 34.14mm L

PIN, 3/8 x 1-1/32 rod end C-Z

1шт.

20

170934C2

LEVER

concave control

1шт.

21333R1

NUT,3/8"-16, G8

3/8 znd hex type 8

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

142680H

BOLT (SPREADER),Hex, 3/8"-16 x 2 1/2", G8

BOLT, Hex, 3/8"-16 x 2 1/2", G8

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2 x 2-1/2 hex-hd

1шт.

366862R1

WASHER, 3/8 znd rib lock

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

21

124554

O-RING

5/16 x 1 Woodruff

1шт.

22

157569C3

ARM

concave front control

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/64 C-Z rod end

2шт.

542503R1

SCREW, 5/16 x 3/8 hex-soc-hd cup, PT

2шт.

23

633543R91

CONCAVE ASSY, low wire, serial number 12000 and below

1шт.

23

174552C91

CONCAVE

ASSY, high wire, includes ref no. 24

1шт.

634122R1

BOLT,5/8"-11 x 2", G8, Full Thd

5/8 x 2 plow no. 3 type 4

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

24

564023R1

ELECTRICAL WIRE

ROD, concave plain, low wire, serial number 12000 and below

1шт.

24

174556C1

ELECTRICAL WIRE

ROD, concave plain, high wire

31шт.

25

565571R1

ELECTRICAL WIRE

ROD, concave half, low wire, serial number 12000 and below, parts accessory

34шт.

26

564918R1

ROD, feeder hinge, serial number 8000 and below

1шт.

27

629680R1

HINGE

concave front, not edible bean or used when equipped w/ spike tooth cylinder

1шт.

181696

1/2-20 x 1 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

28

629006R1

ROD, hinge, not edible bean

1шт.

29

152257C2

BOLT, concave adjusting bracket right, not edible bean

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

30

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, filler left, not edible bean

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

31

174861C1

SUPPORT ASSY, grain pan front seal plate extension, not edible bean

1шт.

32

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16 x 1/2 hex-hd whiz lock

4шт.

20893R1

WASHER

11/32 x 1 x 11 ga C-Z

2шт.

33

174840C1

EXTENSION

ASSY, concave front, not edible bean

1шт.

34

174843C1

SUPPORT ASSY, feed plate, not edible bean, serial no. 8000 and below

1шт.

34

177307C1

HINGE ASSY, feeder bottom door, not edible bean, serial no. 8001 and above

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

3шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

35

632402R1

RETAINER, concave front extension, not edible bean

1шт.

36

634626R91

SUPPORT

GAUGE ASSY, concave and cylinder check

1шт.

37

632067R1

RETAINER, concave rod front, high wire concave

1шт.

38

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, concave

4шт.

21434R1

NUT,5/8"-11, G8

5/8 hex

4шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/64 rod end

2шт.

366866R1

RING

WASHER, 5/8 rib lock

4шт.

39

585209R1

WASHER, concave filler bar bolt, for use w/low wire concave with 3/16 in. wires, serial number 12000 and below

1шт.

40

654922R1

BAR, concave filler, for use w/low wire concave with 3/16 in. wires, serial number 12000 and below

3шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

9шт.

120377

NUT,3/8" - 16, Gr 5

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

3587H

WASHER, 13/32 x 9/16 x 16 ga

27шт.

41

174547C92

STRIP

ASSY, concave filler, serial no. 3291 and above, for use w/ high wire concave w/1/4 inch wires

3шт.

42

174549C1

CLIP

concave filler strip, serial no. 3291 and above, for use w/ high wire concave w/1/4 inch wires

24шт.

104066

RIVET,But Hd, 3/16" x 9/32"

0/16 x 3/8 B-HD

24шт.

43

177434C1

DOOR, feeder top

1шт.

44

177435C1

ROD, feeder top door

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

45

177436C1

SEAL, feeder top door

1шт.

46

177437C1

BACKING, feeder top door seal

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 slt-pan-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

47

177428C1

DOOR SEAL

top door side

2шт.

48

177429C1

STRIP

seal backing

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 slt-pan-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

49

190121C1

LOCK

ASSY, concave control

1шт.

50

176467C1

SPRING

concave control lock

1шт.

51

179160C1

CAP, concave control lock

1шт.
