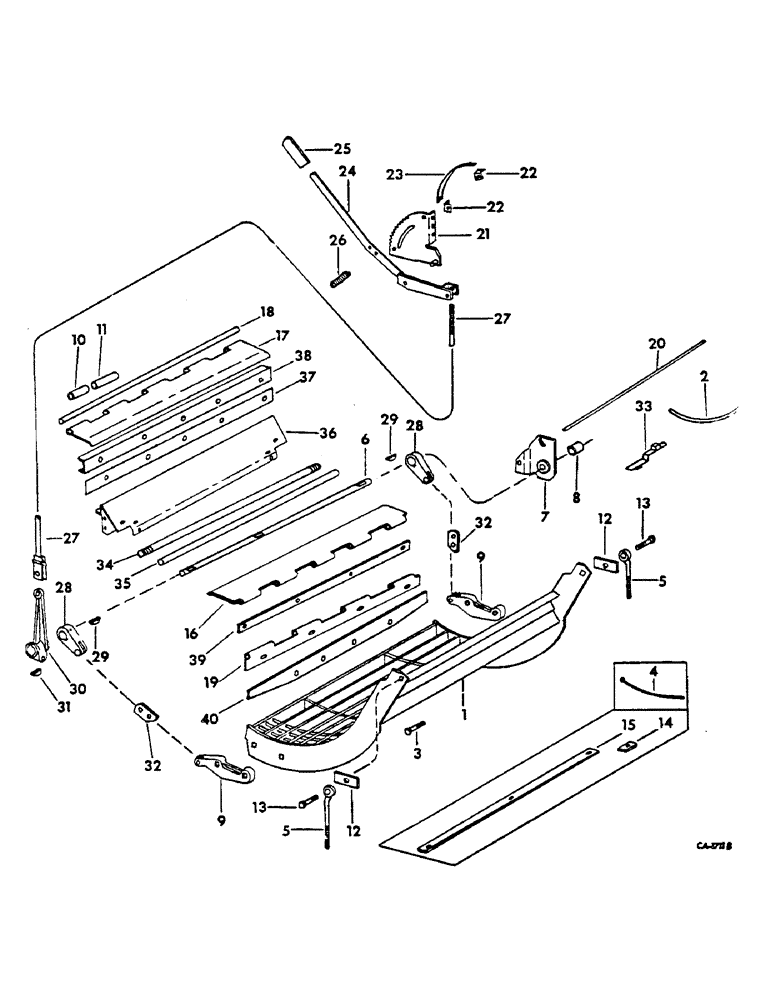

Запчасти Case IH 615 (21-18) - THRESHING CYLINDER AND CONCAVE, CONCAVE AND CONTROL, SERIAL NO. 2580 AND BELOW (14) - THRESHING

935166R91

PARTS ACCESSORY, concave filler bar set of 3 bars, includes ref nos. 14 and 15

1шт.

1

633543R91

CONCAVE ASSY, includes ref no. 2, low wire

1шт.

1

633552R91

CONCAVE

ASSY, includes ref no. 2, high wire

1шт.

634122R1

BOLT,5/8"-11 x 2", G8, Full Thd

5/8 x 2 plow no. 3 type 4

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex

2шт.

20511R1

WASHER, 5/8 C-Z med lock

2шт.

2

564023R1

ELECTRICAL WIRE

ROD, concave, low wire

1шт.

2

588837R1

ROD

concave, high wire

1шт.

3

166051

SPARE PART

BOLT, concave

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/64 C-Z rod

1шт.

4

565571R1

ELECTRICAL WIRE

ROD, concave half, low wire, parts accessory

1шт.

5

564031R1

BOLT,Adj, 1/2" - 13 x 7.62", Cl 5

concave rear adj

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

4шт.

6

171646C1

SHAFT, concave adjusting

1шт.

7

170927C1

BRACKET ASSY, concave leveling, includes ref no. 8

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

3/8 znd hex

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

1шт.

8

157560C1

BUSHING

concave leveling bracket hub

1шт.

9

158004C2

LEVER

concave front support

2шт.

19801R1

BOLT, 5/8 x 2 znd no 3 plow

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 znd hex

4шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

25410R1

SPACER,1/4" Pipe x 2 1/2"

feeder hinge outer, edible bean

2шт.

11

2333F

SPACER, feeder hinge inner, edible bean

3шт.

12

565572R1

SEALING STRIP

concave rear adj bolt slot

2шт.

13

166051C1

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 8

BOLT, concave

2шт.

21434R1

NUT,5/8"-11, G8

5/8 znd hex type 8

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/64 C-Z rod end

1шт.

14

585209R1

WASHER, concave filler bar bolt

9шт.

15

654922R1

BAR, concave filler, for bar and wire type concave and low wire concave and for hi-wire concave w/3/16 in. concave wires

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

9шт.

102635

NUT,3/8"-16, G5

9шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

3587H

WASHER, 13/32 x 9/16 x 16 ga

9шт.

16

632397R91

EXTENSION ASSY, concave front, not edible bean

1шт.

17

171762C1

EXTENSION, feed plate, not edible bean

1шт.

18

564918R1

ROD, feed plate extension, not edible bean

1шт.

19

629680R1

HINGE

concave front, not edible bean

1шт.

414-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

SCREW, 1/2-20 x 3/4 C-Z hex-hd cap

4шт.

86837293

SHAFT

1/2-20 x 1 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

20

629006R1

ROD, hinge, not edible bean

1шт.

21

631562R11

QUADRANT ASSY, concave adj

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

22

631818R1

CLIP, concave quadrant indicator

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

633640R1

INDICATOR, concave quadrant

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16-18 x 1/2 hex-hd type 1

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

24

170930C1

LEVER

ASSY, concave adj

1шт.

C14517

PIN, 3/8 x 9/16 std-hd not drilled

1шт.

25

935885R1

GRIP, concave adj lever

1шт.

26

397

SPRING, concave adj lever

1шт.

18510R1

BOLT, 3/8 x 2-1/4 znd sq-nk crg old

1шт.

425-126

SLOTTED NUT,3/8"-16, G5

NUT, 3/8-16 C-Z slt hex

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

27

170932C1

YOKE ASSY, concave control

1шт.

280954

NUT,3/4"-10, G5

3шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

20614R1

CLEVIS PIN,9.53mm OD x 34.14mm L

PIN, 3/8 x 1-11/32 C-Z rod end

1шт.

28

157569C1

ARM

concave front control

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

138086

CLEVIS PIN,1/2" x 1.360"

PIN, 1/2 x 1-27/64 C-Z rod end

2шт.

542503R1

SCREW, 5/16 x 3/8 soc-hd cup-pt set

2шт.

29

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 Woodruff

3шт.

30

170934C1

LEVER

concave control

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

142680H

BOLT (SPREADER),Hex, 3/8"-16 x 2 1/2", G8

BOLT, Hex, 3/8"-16 x 2 1/2", G8

1шт.

366862R1

WASHER, 3/8 znd rib lock

1шт.

31

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 Woodruff

1шт.

32

157871C2

BAR

concave front support

2шт.

33

634626R91

SUPPORT

GAGE ASSY, concave and cylinder check

1шт.

34

151288C2

ROD, feed plate spacer, not edible bean

1шт.

34

564918R1

ROD, feeder hinge, for edible bean

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

2шт.

35

594626R1

PIPE, feed plate, not edible bean

1шт.

36

171583C1

SUPPORT ASSY, feeder seal, not edible bean

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

37

171585C1

SEAL, feeder pivot, not edible bean

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd mach

7шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x 16 C-Z

7шт.

38

171586C1

CHANNEL, feeder pivot seal, not edible bean

1шт.

39

632402R1

RETAINER, concave front extension, not edible bean

1шт.

40

632067R1

RETAINER, concave rod front, high wire

1шт.
