(21-17) - THRESHING CYLINDER AND CONCAVE, FLEXIBLE CYLINDER BEATER, SER. NO. 8000 AND BELOW

Запчасти Case IH 615 (21-17) - THRESHING CYLINDER AND CONCAVE, FLEXIBLE CYLINDER BEATER, SER. NO. 8000 AND BELOW (14) - THRESHING

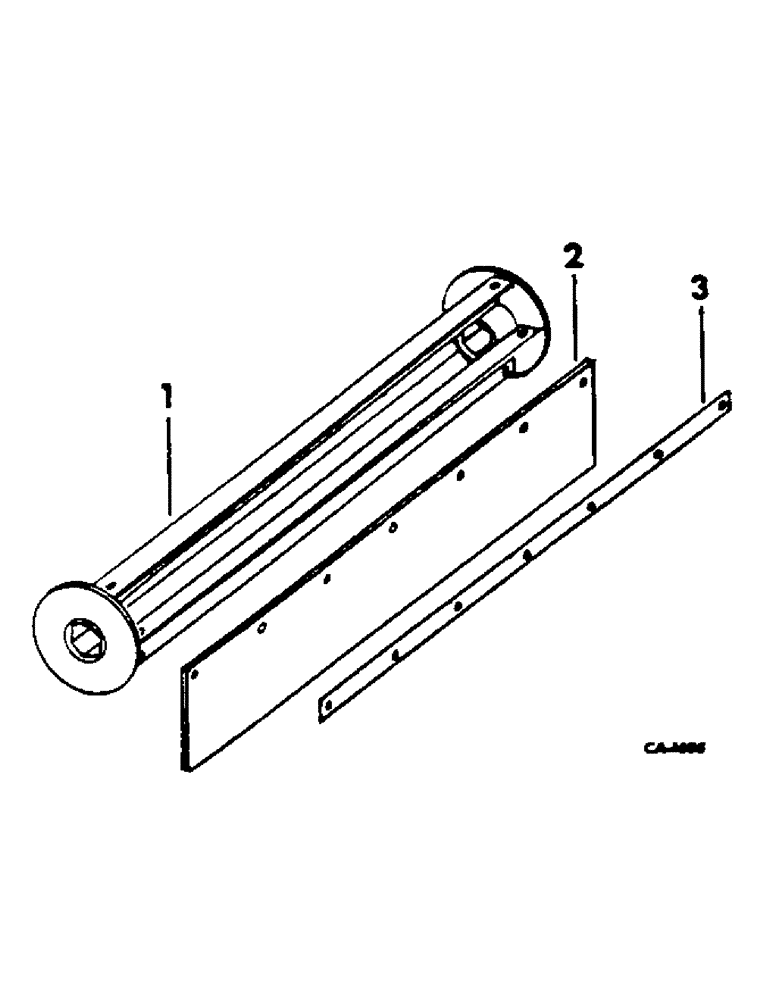

Схема запчастей Case IH 615 - (21-17) - THRESHING CYLINDER AND CONCAVE, FLEXIBLE CYLINDER BEATER, SER. NO. 8000 AND BELOW (14) - THRESHING
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

629730R91

BEATER ASSY, flexible blade cyl

1шт.

2

937869R1

FLAP, cyl beater

4шт.

3

567913R1

STRIP, beater blade backing

4шт.

120376

NUT,5/16"-18, G5

24шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.
