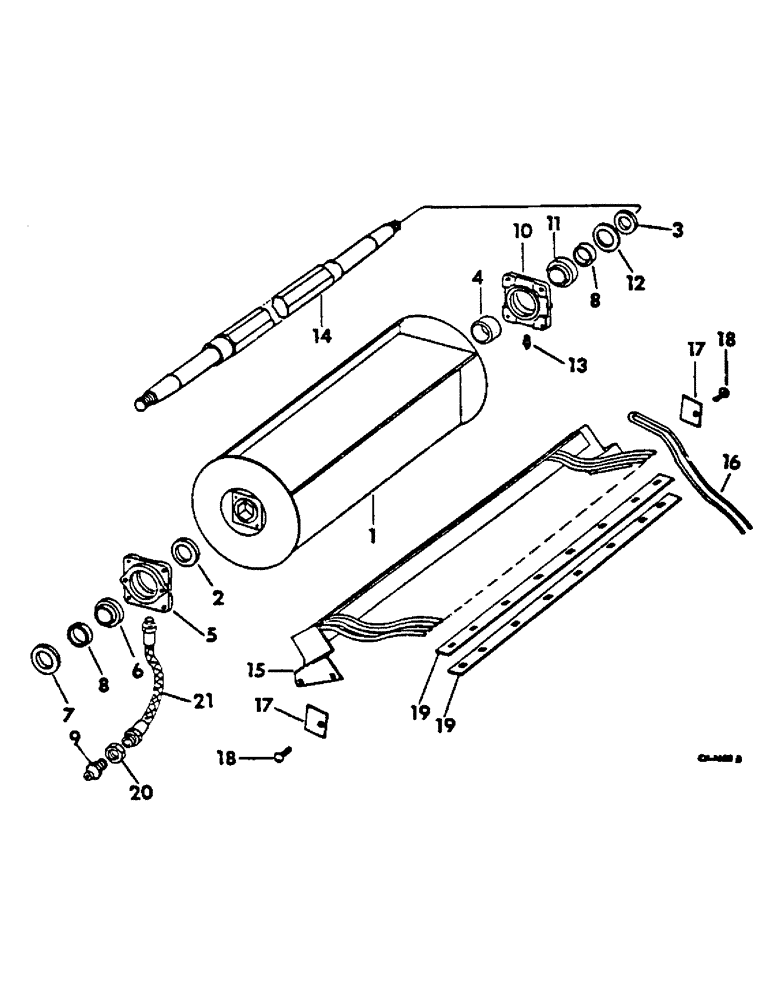

Запчасти Case IH 615 (21-16) - THRESHING CYLINDER AND CONCAVE, CYLINDER BEATER (14) - THRESHING

1

150686C91

BEATER ASSY, cyl

1шт.

2

629713R1

SPACER

cyl beater inner left

1шт.

3

631660R1

SPACER, cyl beater right

1шт.

4

23185R1

SPACER, cyl beater shaft

1шт.

5

939620R11

HOUSING, cyl beater shaft brg LH, includes ref. nos. 6 and 7

1шт.

6

939621R91

BEARING

cyl beater shaft ball LH

1шт.

7

939624R91

SEAL

SEAL, cylinder beater shaft brg

1шт.

8

629724C11

COLLAR W/SET SCREW, cyl beater brg

2шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd

2шт.

9

219-5

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, 1/8 str lub

1шт.

10

171466C11

HOUSING ASSY, cyl beater shaft brg RH, includes ref. nos. 11 and 12

1шт.

Ref #10 - 171466C11 No Longer Available. Bearing is the same as the other side.. 631988R91 11/16/95

1шт.

11

939621R91

BEARING

cylinder beater shaft ball RH

1шт.

12

939624R91

SEAL

SEAL, cyl beater shaft brg RH

1шт.

13

17295R91

LUBE NIPPLE,90 Degree, 1/4" NPT x 1" lg

FITTING, 1/4-18 PTF 67-1/2 deg angle

1шт.

14

171465C21

SHAFT ASSY, cylinder beater

1шт.

20290R1

LOCK NUT,1"-14, G5

NUT, 1-14 nylon insert C-Z

2шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 x 2-1/4 x 1/4

2шт.

20644R1

WASHER

1-21/32 x 2-1/4 x 16 ga

4шт.

R15041

WASHER, 1-21/32 x 3-5/16 x 1/8

1шт.

575142R1

WASHER, 1-21/32 x 2-1/2 x 16 ga hard

1шт.

609376R1

WASHER

1-25/32 x 2-1/2 x 11 ga

1шт.

22811R1

WASHER

2-1/32 x 2-3/4 x 14 ga

5шт.

15

171467C1

GRATE ASSY, cyl beater finger

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

2шт.

16

165056C2

FINGER

beater grate

15шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

15шт.

120377

NUT,3/8" - 16, Gr 5

15шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

15шт.

17

568276R1

SEAL, cyl beater grate adj slot

2шт.

18

152257C2

BOLT, cyl beater finger grate mounting

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

19

173566C1

STRAP, grate finger tie

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

8шт.

20

581873R1

TUBE NUT,4.8 mm Length

1/8-27 hose

1шт.

21

171970C1

HOSE, LH cylinder beater bearing lub

1шт.
