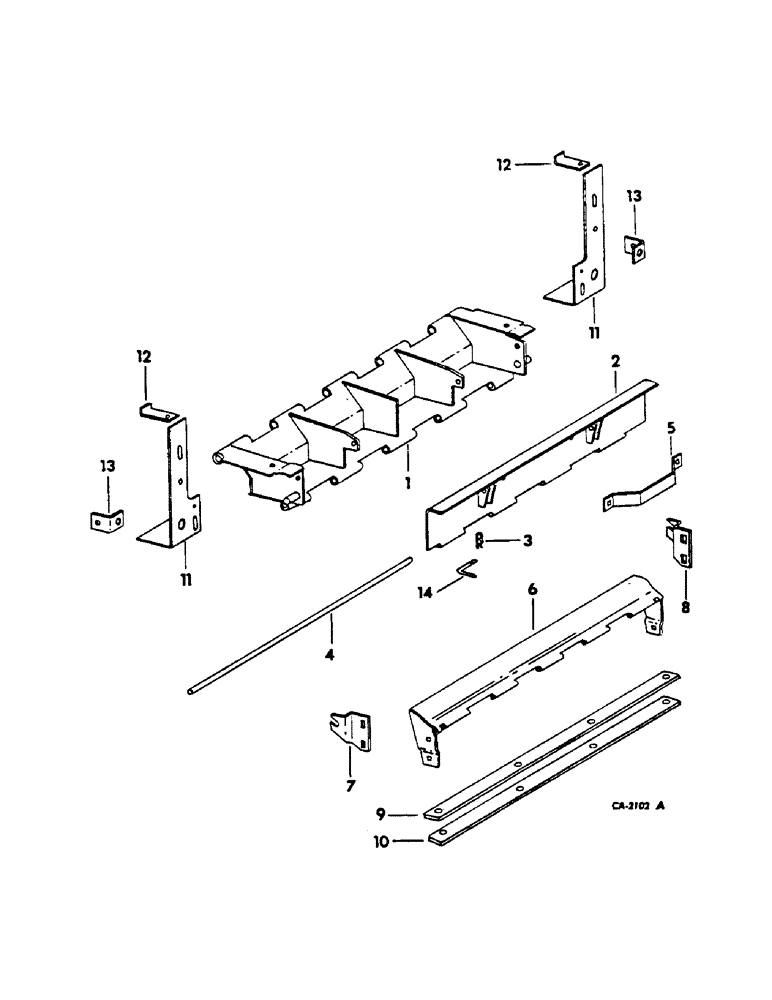

Запчасти Case IH 615 (21-14) - THRESHING CYLINDER AND CONCAVE, STONE RETARDER, SERIAL NO. 2581 AND ABOVE (14) - THRESHING

1

174595C1

TROUGH ASSY, stone retarder

1шт.

2

174587C1

DOOR ASSY, stone retarder

1шт.

3

585614R1

PIN

retaining

2шт.

4

174132C1

ROD, stone retarder door hinge

1шт.

5

166351C1

HANDLE, stone retarder door

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

171577C1

SUPPORT ASSY, feed plate, serial no. 8000 and below

1шт.

6

177392C1

HINGE ASSY, feeder bottom door, serial no. 8001 and above

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga

2шт.

7

171334C1

BRACKET

retarder pivot LH

1шт.

8

171335C1

BRACKET

retarder pivot RH

1шт.

9

172758C1

SEAL, stone retarder

1шт.

10

172761C1

REINFORCEMENT, stone retarder seal

1шт.

93801R1

NUT, 5/16 C-Z whiz lock

5шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

5шт.

11

174538C1

SEAL

concave linkage

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

564266R1

NUT

5/16 weld

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 whiz lock

2шт.

436734

SCREW,Slotted Pan Hd, #10-24 x 3/4"

no. 10-24 x 3/4 slt-pan-hd

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 slt-truss-hd

8шт.

607893R1

WASHER

11/32 x 3/4 x 16 ga

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

2шт.

12

174540C1

RETAINER

concave linkage seal

2шт.

13

174539C1

ANGLE

concave linkage seal

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

14

174601C1

PIN

stone retarder door

2шт.
