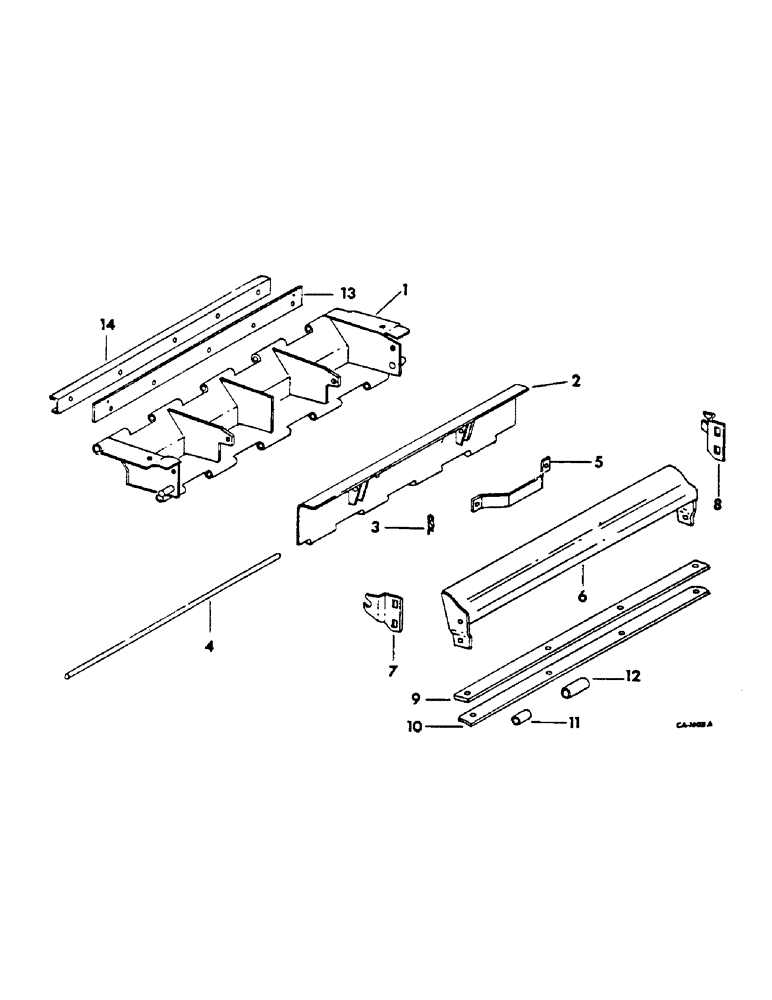

Запчасти Case IH 615 (21-13) - THRESHING CYLINDER AND CONCAVE, STONE RETARDER, SERIAL NO. 2580 AND BELOW (14) - THRESHING

1

171573C1

TROUGH ASSY, stone retarder

1шт.

2

171575C1

DOOR ASSY, stone retarder

1шт.

23369R1

HEADED PIN,3/8" x 7/8"

PIN, HEADED, 3/8" x 7/8"

3шт.

3

585614R1

PIN

retaining

2шт.

4

174132C1

ROD, stone retarder door hinge

1шт.

5

166351C1

HANDLE, stone retarder door

1шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

171577C1

SUPPORT ASSY, feed plate

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

7

171334C1

BRACKET

retarder pivot LH

1шт.

8

171335C1

BRACKET

retarder pivot RH

1шт.

9

171579C1

SEAL, feeder

1шт.

10

171580C1

REINFORCEMENT, feeder seal

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

4шт.

11

25410R1

SPACER,1/4" Pipe x 2 1/2"

1/4 x 3-1/4 std-pipe, used outer on feeder hinge rod

2шт.

12

2333F

SPACER, 1/4 x 2-3/4 std-pipe, used inner on feeder hinge rod

5шт.

13

172758C1

SEAL, stone retarder

1шт.

14

172761C1

REINFORCEMENT, stone retarder seal

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z slt-truss-hd

6шт.
