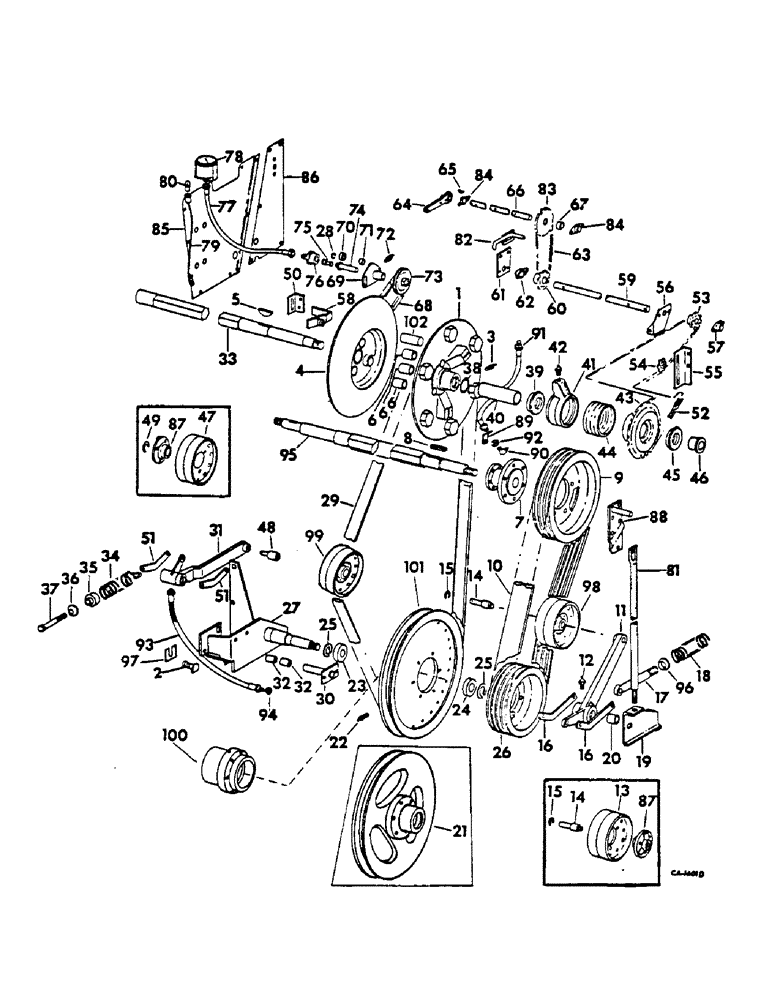

Запчасти Case IH 615 (21-09) - THRESHING CYLINDER AND CONCAVE, VARIABLE CYLINDER DRIVE, BELT DRIVE (14) - THRESHING

1

171097C11

PULLEY W/PINS, variable cyl adj half drive 18.5 in. OD, includes ref. no. 2

1шт.

2

152257C2

BOLT, variable cylinder jackshaft support

2шт.

3

219-5

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, 1/8-27 PTF x 1.75 str lub

1шт.

4

171608C11

PULLEY W/BUSHINGS, variable cyl fixed half drive 18.5 in. OD, includes ref no 6

1шт.

5

38260D

KEY

3/8 x 2-3/4 Woodruff

1шт.

6

633463R1

BUSHING, variable cyl drive pulley

3шт.

7

174993C1

HUB, cylinder drive

1шт.

208491R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

SCREW, 7/16 x 1-1/4 hex-hd

6шт.

226092R1

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

SCREW, 7/16 x 1-1/2 hex-hd

6шт.

366863C1

LOCK WASHER

WASHER, 7/16 znd rib lock

12шт.

8

Q36

KEY,3/8" Sq x 3 1/2"

3/8 x 3-1/2 sq parallel

1шт.

9

171100C1

PULLEY, cyl jackshaft drive or driven, 14 in. OD 4 groove, standard or edible bean

1шт.

9

174991C1

PULLEY, cyl jackshaft drive or driven, 5-7/8 in. OD, edible bean, extra slow speed

1шт.

9

174992C1

PULLEY, cyl jackshaft drive or driven, 8-3/4 in. OD, edible bean or slow speed

1шт.

9

171112C1

PULLEY, variable cylinder dr or driven, 11.15 in. OD, standard or edible bean

1шт.

10

171101C2

BELT,0.630" W x 98.00" L, 4 Ribs

V-BELT , Variable speed cylinder drive primary, 48 section, Standard or edible bean 0.630" W x 98.00" L, 4 Ribs

1шт.

10

175307C1

BELT

variable speed cylinder drive primary, 3B section, not edible bean

1шт.

11

171102C1

ARM, variable cyl drive belt tightener

1шт.

12

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 90 deg angle lub

1шт.

13

171737C11

PULLEY

ASSY, primary cyl drive belt tightener 8 in. OD, serial no. 2580 and below

1шт.

104249

RIVET, 1/4 x 1/2 f-hd FH, 1/4" x 1/2"

12шт.

14

599205R91

BEARING

cyl drive tightener pulley

1шт.

15

559203R1

SNAP RING,#118, 1.260", Int, Spiral

RING, variable cyl drive belt tightener pulley snap, serial no. 2580 and below

1шт.

16

171104C1

LINK, variable cyl drive primary belt tightener control

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

21657R1

PIN, 7/16 x 1-3/8 C-Z std hd

2шт.

17

171094C2

ROD

cyl drive primary belt tightener spring

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

22042R1

WASHER

17/32 x 2 x 11 ga

1шт.

18

PO151

SPRING, variable cyl drive primary belt tightener

1шт.

19

172144C1

SUPPORT ASSY, variable speed cyl drive tightener spring anchor

1шт.

20

171108C1

SPACER, variable cyl drive jackshaft

1шт.

22481R1

WASHER

1-13/32 x 2-1/4 x 16 ga C-Z

6шт.

21

171109C1

PULLEY

cyl shaft drive 20 in. OD, serial no. 8000 and below, order pulley assy 172712C11 ref no. 101, hub 175331C1 ref no. 100 and 6 bolts 208490R1 and 6 washers 120395

1шт.

22

219-5

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, 1/8-27 PTF str lub

1шт.

23

171110C91

BEARING ASSY,1.531" ID x 3.149" OD x 1.083"

BEARING, cyl shaft drive pulley inner

1шт.

24

171111C91

BEARING ASSY,1.378" ID x 2.834" OD x 0.984"

BEARING, cyl shaft drive pulley outer

1шт.

25

512889R1

RING

cyl shaft drive pulley inner snap

2шт.

26

171112C1

PULLEY, variable cyl drive or driven primary 11.15 in. OD, standard or edible bean

1шт.

26

174339C1

PULLEY, cylinder jackshaft driven, 9-1/4 in. OD, fast speed 1399 RPM, serial number 12000 and below

1шт.

26

174994C1

PULLEY, variable cylinder driven, 17-13/32 in. OD, slow speed or edible bean

1шт.

226092R1

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

SCREW, 7/16 x 1-1/2 znd hex-hd cap type 8

6шт.

366863C1

LOCK WASHER

WASHER, 7/16 znd rib lock

6шт.

27

171113C2

BRACKET ASSY, variable cylinder drive jackshaft support

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 sq-nk crg

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

18444R1

NUT,3/4"-10, GB

3/4-10 znp nylon insert torque

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

120394

WASHER,3/8", SAE

WASJER. 13/32 x 13/16 x 16 ga

1шт.

21903

U-BOLT

WASHER, 17/32 x 3/4 x 16 ga

1шт.

23245R1

WASHER

25/32 x 1-3/4 x 7 ga znd

1шт.

28

324050R1

SNAP RING

RING, tachometer jackshaft snap

1шт.

29

171130C1

BELT,2.00" W x 114.98" L

V-BELT , Variable speed cylinder drive 2.00" W x 114.98" L

1шт.

30

171131C1

PIN

ASSY, variable cyl drive belt tightener pivot

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga C-Z

4шт.

31

171134C11

ARM

W/BUSHING, variable cyl drive belt tightener, includes ref no 32

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

21657R1

PIN, 7/16 x 1-3/8 C-Z std-hd

2шт.

32

568615R2

BEARING

BUSHING, cyl drive belt tightener arm

2шт.

33

SHAFT, cylinder, refer to cylinder, rasp bar, for unit listing

1шт.

34

171135C11

SPRING

W/PLUG, variable cyl drive belt tension, includes ref no 35

1шт.

35

662028R1

PLUG

tightener arm tension

1шт.

36

170999C1

WASHER, tension spring pivot seat

1шт.

37

171136C1

BOLT

tightener arm tension spring

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x 13 ga C-Z

1шт.

38

382432R1

O-RING,1.984" ID x 0.139" Width

2 x 2-1/4 x 1/8

2шт.

39

165992C91

BALL BEARING,2.778" ID x 4.266" OD x 0.875"

BEARING, variable cyl drive adj pulley thrust

1шт.

40

173925C1

SLEEVE

variable cylinder drive pulley spacer

1шт.

41

168200C1

SLEEVE

variable pulley female adj

1шт.

42

219-86

LUBE NIPPLE,1/8" NPTF

FITTING, 1/8-27 str lub self tap

1шт.

43

168199C1

SLEEVE

variable pulley male adj

1шт.

44

168362C2

COVER

control thread flexible tubing

1шт.

45

168215C91

BALL BEARING

BEARING, variable pulley male adj sleeve thrust

1шт.

46

168197C1

SPACER

outer bearing

1шт.

47

171228C11

PULLEY

ASSY, variable cyl drive belt tightener 8 in. OD, serial no. 2580 and below

1шт.

104249

RIVET, 1/4 x 1/2 f-hd FH, 1/4" x 1/2"

12шт.

48

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

variable belt tightener pulley

1шт.

49

559203R1

SNAP RING,#118, 1.260", Int, Spiral

RING, variable tightener pulley snap, serial no. 2580 and below

1шт.

50

171137C1

SUPPORT

variable pulley female adj sleeve stop

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

51

171138C1

LINK, idler arm control

2шт.

52

CHAIN ASSY, variable speed pulley control lower drive, use 59 links from 10-ft roll marked 569088R91 and one 457113R91 connecting link

1шт.

53

164302C1

SPROCKET ASSY.

SPROCKET, control outer 8T

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

216481R1

PIN, 1/4 x 1-1/4 C-Z slt spring

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga znd

5шт.

54

171784C1

SPROCKET ASSY.

SPROCKET, variable speed pulley control chain idler, 6T

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 znd hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 znd hex. jam

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

1шт.

55

171139C1

ANGLE, variable speed pulley control chain tightener support

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

56

171140C1

BRACKET, variable speed control shaft brg support

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

57

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING, variable speed control shaft outer

1шт.

58

171141C1

SUPPORT

ASSY, control stop

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

59

171610C1

SHAFT, speed control lower

1шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga znd

8шт.

60

164302C1

SPROCKET ASSY.

SPROCKET, control inner 8T

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga znd

5шт.

61

171144C1

BRACKET, variable speed control shaft brg support

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20893R1

WASHER

11/32 x 1-1/4 x 11 ga C-Z

2шт.

62

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING, variable speed control shaft inner

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

63

CHAIN ASSY, variable speed pulley control upper drive, use 47 links from 10-ft roll marked 569088R91 and one 457113R91 connecting links

1шт.

64

170282C1

HANDLE

variable speed control

1шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

2шт.

65

106751

KEY

3/16 x 3/4 no. 9 Woodruff

1шт.

66

171145C1

SHAFT, variable sped control upper

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga C-Z

3шт.

67

PO12482

SPACER,3/4" Pipe x 7/8"

3/4 x .875 std pipe

1шт.

68

171146C1

BELT,0.240" W x 44.28" L

V-BELT , Cyl speed indicator drive, Refer to gruop 11 under instruments for unit listing 0.240" W x 44.28" L

1шт.

69

171147C11

HOUSING

W/BRGS, tachometer jackshaft, includes ref nos 70 and 71, refer to group 11 under instruments fro unit listing

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga C-Z

2шт.

70

490509R91

NEEDLE BEARING

ASSY, tachometer jackshaft outer, refer to group 11 under instruments for unit listing

1шт.

71

336180R91

NEEDLE BEARING

ASSY, tachometer jackshaft inner, refer to group 11 under instruments for unit listing

1шт.

72

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 45 deg angle, refer to group 11 under instruments for unit listing

1шт.

73

164887C1

PULLEY

tachometer driven 4 in. OD, refer to group 11 under instruments for unit listing

1шт.

137258

COTTER PIN

3/16" x 1 3/4"

1шт.

74

173582C91

SHAFT

JACKSHAFT ASSY, tachometer drive, includes ref. no. 75, refer to group 11 under instruments for unit listing

1шт.

21471R1

WASHER

21/32 x 1 x 11 ga C-Z

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

2шт.

75

164892C1

BUSHING

drive, refer to group 11 under instruments for unit listing

1шт.

76

164884C1

ADAPTER

UNION, tachometer flexible shaft, refer to group 11 under instruments for unit listing

1шт.

77

164883C91

HOSE ASSY.

SHAFT ASSY, tachometer flexible, refer to group 11 under instruments for unit listing

1шт.

78

159884C91

INDICATOR

TACHOMETER ASSY, cyl, refer to group 11 under instruments for unit listing

1шт.

79

SOCKET ASSY, instrument light, refer to group 8 under wiring diagram for unit listing

1шт.

80

BULB, light, refer to group 8 under wiring diagram for unit listing

1шт.

81

172142C1

PIPE ASSY, variable cyl drive jackshaft spindle brace

1шт.

219758

JAM NUT,Jam, 3/4"-10, G5

3/4-16 hex. jam

2шт.

82

171390C1

ROD ASSY, chain tightener

1шт.

83

171393C1

SPROCKET, upper control 12T

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21887R1

HEADED PIN,1/4" x 1 5/8"

PIN, 1/4 x 1-5/8 C-Z std-hd

1шт.

84

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING ASSY, flange

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

4шт.

21496R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

85

171395C1

SHEET, control panel left front

1шт.

264-1478

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 pan hd tap.

9шт.

178974

SCREW,Sl Pan Hd, 1/4" - 14 x 1/2"

1/4-14 x 1/2 pan hd tap.

1шт.

86

171394C1

SHEET, control panel left rear

1шт.

264-1478

SELF-TAP SCREW,Slotted Pan Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 pan hd tap.

2шт.

87

171675C1

HUB, primary & variable cyl drive belt pulley, serial no. 2580 and below

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

88

172609C1

SUPPORT ASSY, variable speed jackshaft brace

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga

7шт.

89

171971C1

SUPPORT, RH cyl brg lube hose

1шт.

90

16964R91

FITTING

1/4-2 BNS 90 deg lube

1шт.

91

171932C1

HOSE

ASSY, RH cyl brg lube

1шт.

92

581873R1

TUBE NUT,4.8 mm Length

RH cyl brg lube hose jam

1шт.

93

171931C1

HOSE

ASSY, variable cyl drive tightener lube

1шт.

94

581873R1

TUBE NUT,4.8 mm Length

variable cyl drive tightener hose

1шт.

95

SHAFT, cylinder beater, refer to cylinder beater unit for listing

1шт.

96

568382R1

WASHER, spring seat pivot

1шт.

97

935915R1

SHIM,33.02mm OD x 0.38mm Thk

10шт.

98

174757C1

PULLEY

ASSY, primary cylinder drive belt tightener, 8 in. OD, serial no. 2581 and above

1шт.

99

174756C1

PULLEY

ASSY, variable cylinder drive belt tightener, 8 in. OD, serial no. 2581 and above

1шт.

100

175331C1

HUB, variable cylinder drive pulley, for use w/pulley 172712C11 ref no. 101

1шт.

208490R1

BOLT, 7/16 x 1 hex-hd

6шт.

120395

WASHER

.47 x .92 x .06

6шт.

101

172712C11

PULLEY

ASSY, variable cylinder drive, 20 in. OD, for use w/hub 175331C1 ref no. 100

1шт.

104249

RIVET, 1/4 x 1/2 f-hd solid FH, 1/4" x 1/2"

40шт.

102

163881C1

PIN, variable cylinder drive pulley

3шт.
