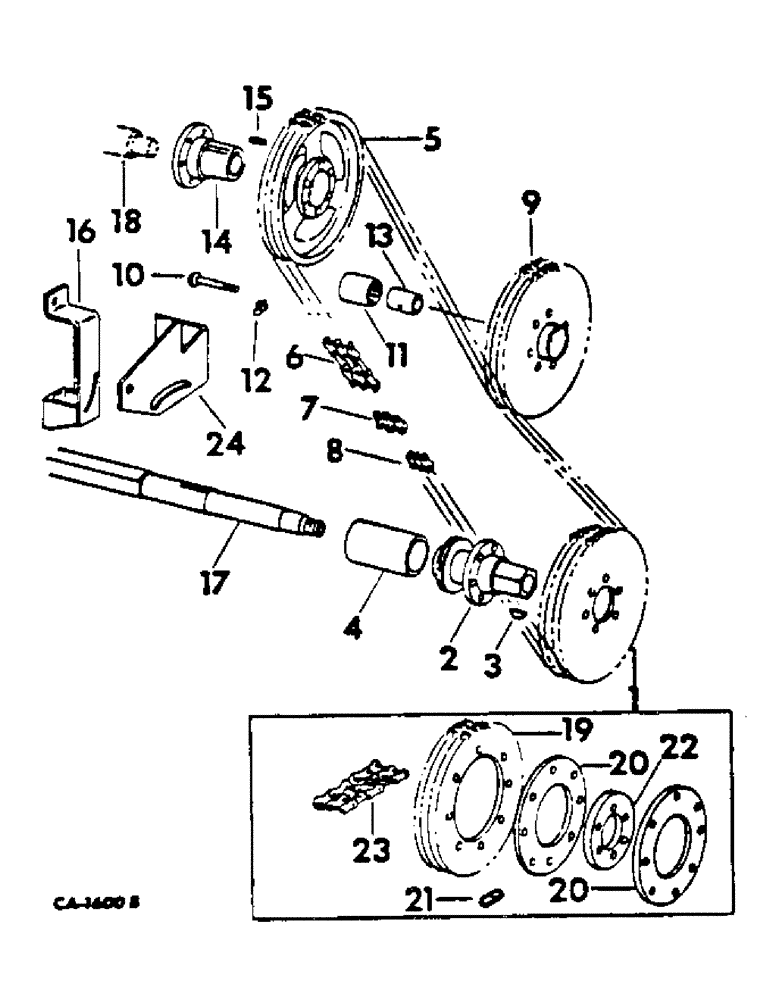

Запчасти Case IH 615 (21-08) - THRESHING CYLINDER AND CONCAVE, CYLINDER CHAIN DRIVE AND SLIP CLUTCH, CHAIN DRIVE, S/N 12000 & BELOW (14) - THRESHING

1

171191C1

SPROCKET, cylinder 25T, double

1шт.

1

158418C1

DRIVE SPROCKET

SPROCKET, cylinder 30T, double

1шт.

1

158421C1

SPROCKET, cylinder 48T, double

1шт.

1

171133C1

SPROCKET, cylinder 22T, double

1шт.

1

160121C1

SPROCKET ASSY.

SPROCKET, cylinder 35T, double

1шт.

1

158420C1

SPROCKET, cylinder 54T, double, parts accessory

1шт.

130560R1

SCREW,Hex, 7/16" - 14 x 2 1/4"

7/16 x 2-1/4 hex-hd cap

6шт.

366863C1

LOCK WASHER

WASHER, 7/16 C-Z rib lock

6шт.

2

171765C1

HUB, cyl driven

1шт.

3

38260D

KEY

3/8 x 2-3/4 Woodruff

1шт.

4

171193C1

SPACER, cyl driven hub

1шт.

5

171191C1

SPROCKET, cylinder 25T, double

1шт.

5

158418C1

DRIVE SPROCKET

SPROCKET, cylinder 30T, double

1шт.

5

158421C1

SPROCKET, cylinder 48T, double

1шт.

5

171133C1

SPROCKET, cylinder 22T, double

1шт.

5

160121C1

SPROCKET ASSY.

SPROCKET, cylinder 35T, double

1шт.

5

158420C1

SPROCKET, cylinder 54T, double, parts accessory

1шт.

130560R1

SCREW,Hex, 7/16" - 14 x 2 1/4"

7/16 x 2-1/4 hex-hd cap

6шт.

366863C1

LOCK WASHER

WASHER, 7/16 C-Z rib lock

6шт.

6

CHAIN ASSY, cyl drive double roller, use 79 links from 10-ft roll marked 1355D, one two pitch offset connecting links 570988R91, four connecting links 569206R91 and two roller links 1316D

1шт.

6

CHAIN ASSY, cylinder drive extension, edible bean, use 5 links from 10-ft roll marked 1355D, three connecting links 569206R91, one two pitch combination offset link 570988R91 and two offset links 1316D

1шт.

7

1313D

CHAIN LINK

LINK, offset, double pitch

1шт.

7

1316D

CHAIN LINK

LINK, roller

1шт.

8

569206R91

CHAIN LINK

LINK, connecting, double pitch

1шт.

9

172076C91

SPROCKET ASSY, cyl drive chain tightener 20T, includes ref. no. 11

1шт.

10

575280R1

BOLT (SPREADER)

BOLT, cyl drive tightener

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x 12 ga

4шт.

21783R1

SQ HOLE WASHER,41/64" x 1 1/2" x .105", Sq Hole

21/32 sq x 1-1/2 x 12 ga C-Z

1шт.

11

577006R91

NEEDLE BEARING,Needle, 22.2mm ID x 33.36mm OD x 38.1mm W

ASSY, tightener sprocket

1шт.

12

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 90 deg angle lub

1шт.

13

578607R1

SLEEVE CYLINDER

SLEEVE, cyl drive tightener sprocket

1шт.

14

171195C1

HUB, cyl drive

1шт.

15

Q36

KEY,3/8" Sq x 3 1/2"

3/8 x 3-1/2 sq parallel

1шт.

16

171196C1

BRACKET ASSY, cyl drive tightener

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 znd sq-nk crg

2шт.

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2 x 1 znd hex-hd mach

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

2шт.

21330R1

NUT,1/2"-13, G8

1/2 C-Z hex.

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

17

SHAFT ASSY, cylinder, refer to cylinder, rasp bar, for unit listing

1шт.

18

SHAFT ASSY, cylinder beater, refer to cylinder beater for unit listing

1шт.

19

171225C1

SPROCKET, cylinder driven 54T

1шт.

19

570655R1

SPROCKET, cylinder driven 48T, cylinder drive slip clutch, serial no. 8000 and below

1шт.

20

158690C2

PLATE, cyl drive slip clutch outer, cylinder drive slip clutch, serial no. 8000 and below

2шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CDP lock

8шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8 x 3-1/2 hex-hd

8шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

8шт.

21

M74156

SPRING

cyl drive slip clutch, cylinder drive slip clutch, serial no. 8000 and below

8шт.

22

158691C1

PLATE, cyl drive slip clutch inner, cylinder drive slip clutch, serial no. 8000 and below

1шт.

208491R91

BOLT, 7/16 x 1-1/4 hex-hd

6шт.

366863C1

LOCK WASHER

WASHER, 7/16 znd rib lock

6шт.

CHAIN ASSY, cylinder drive double roller extension, cylinder drive slip clutch, use 5 links from 10-ft roll marked 1355D, three connecting links 569206R91, three connecting links 569206R91, one two pitch combination offset link 570988R91, and two offset links 1316D

1шт.

24

178935C1

ANGLE, cylinder drive idler support, for edible bean

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk crg

1шт.

18821R1

BOLT

5/8 x 1-1/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 hex.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.
