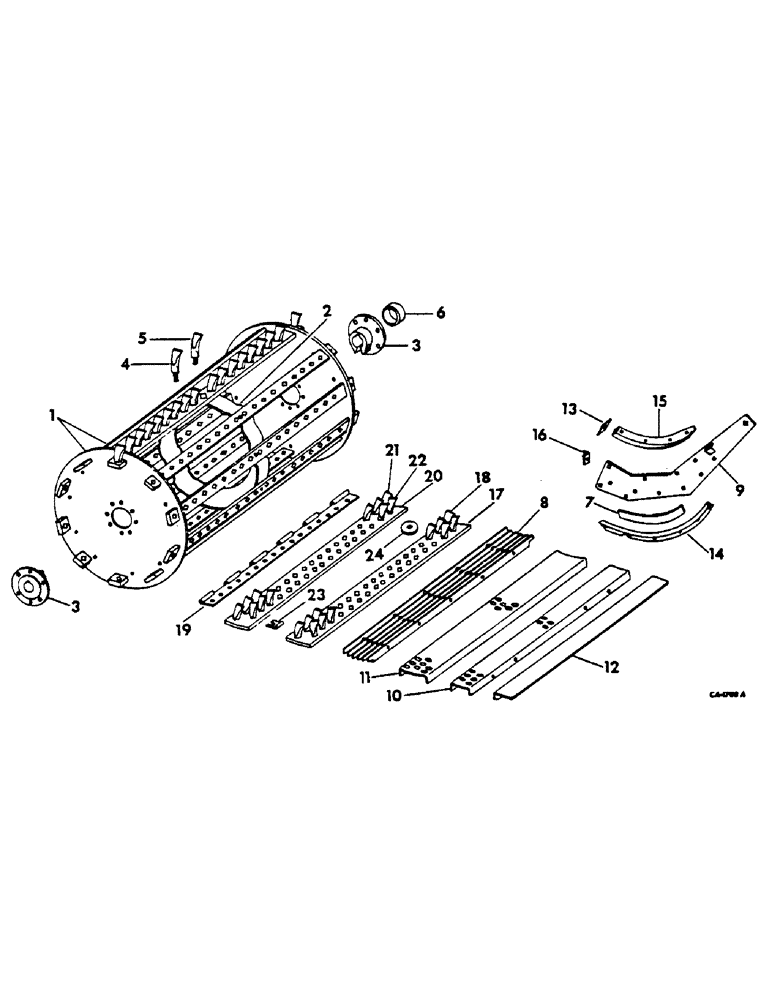

Запчасти Case IH 615 (21-05) - THRESHING CYLINDER AND CONCAVE, CYLINDER, SPIKE TOOTH (14) - THRESHING

1

172225C91

CYLINDER ASSY, less shaft, includes ref nos, 2, 3, 4 and 5

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach, for balance

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach, for balance

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 znd hex-hd mach, for balance

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

2

567891R1

HEAD, cylinder center

1шт.

104118

RIVET, 3/8 x 1-5/8 b-hd

10шт.

3

172953C1

HUB, cylinder

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

104115

RIVET,But Hd, 3/8" x 1 1/4"

3/8 x 1-1/4 b-hd

16шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2 x 2-3/4 hex-hd

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

155992C2

TOOTH

cylinder middle

10шт.

124583

BRAKE SHOE

NUT, 9/16 C-Z hex.

10шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

10шт.

5

155993C2

TOOTH

cylinder

13-шт.

124583

BRAKE SHOE

NUT, 9/16 C-Z hex

130шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

130шт.

6

172954C1

SPACER, cyl shaft

1шт.

7

587764R1

SHIM

concave adjusting

8шт.

8

567899R91

GRATE ASSY, concave

2шт.

9

567901R11

SUPPORT ASSY, concave LH

1шт.

9

567902R11

SUPPORT ASSY, concave RH

1шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z no. 3 plow

20шт.

441452R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

BOLT, 5/8-11 x 2 sq-nk crg

2шт.

633661R1

CARRIAGE BOLT,#3, 5/8" - 11 x 3"

BOLT, 5/8 x 3 no. 3 type 4 plow

2шт.

120377

NUT,3/8" - 16, Gr 5

20шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

20шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

10

567903R1

GRATE, concave rear

1шт.

11

567905R1

GRATE, concave

2шт.

12

567907R1

EXTENSION, concave rear

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

13

567908R1

BAR

CLIP, concave locking

2шт.

14

568137R1

RETAINER, concave lower LH

1шт.

14

568138R1

RETAINER, concave lower RH

1шт.

15

568135R1

SUPPORT

REATINER, upper LH

1шт.

15

568136R1

SUPPORT

RETAINER, lower RH

1шт.

NLS

NO LONGER SERVICED

5/16 C-Z hex jam

2шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16 x 7/8 C-Z hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

5/8"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

16

568139R1

ANGLE

DEFLECTOR, concave LH

4шт.

16

568140R1

ANGLE

DEFLECTOR, concave RH

4шт.

17

155981C1

CONCAVE, rear

1шт.

18

155993C2

TOOTH

rear concave

25шт.

124583

BRAKE SHOE

NUT, 9/16 znd hex

25шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

25шт.

19

172555C1

HINGE, front concave ext

1шт.

20

155981C1

CONCAVE, front

1шт.

21

155992C2

TOOTH

front concave long

14шт.

124583

BRAKE SHOE

NUT, 9/16 znd hex

1шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

22

155993C2

TOOTH

front concave short

11шт.

124583

BRAKE SHOE

NUT, 9/16 znd hex

1шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

23

155984C1

SPACER, front concave

3шт.

24

936476R1

SQ HOLE WASHER

concave tooth

39шт.
