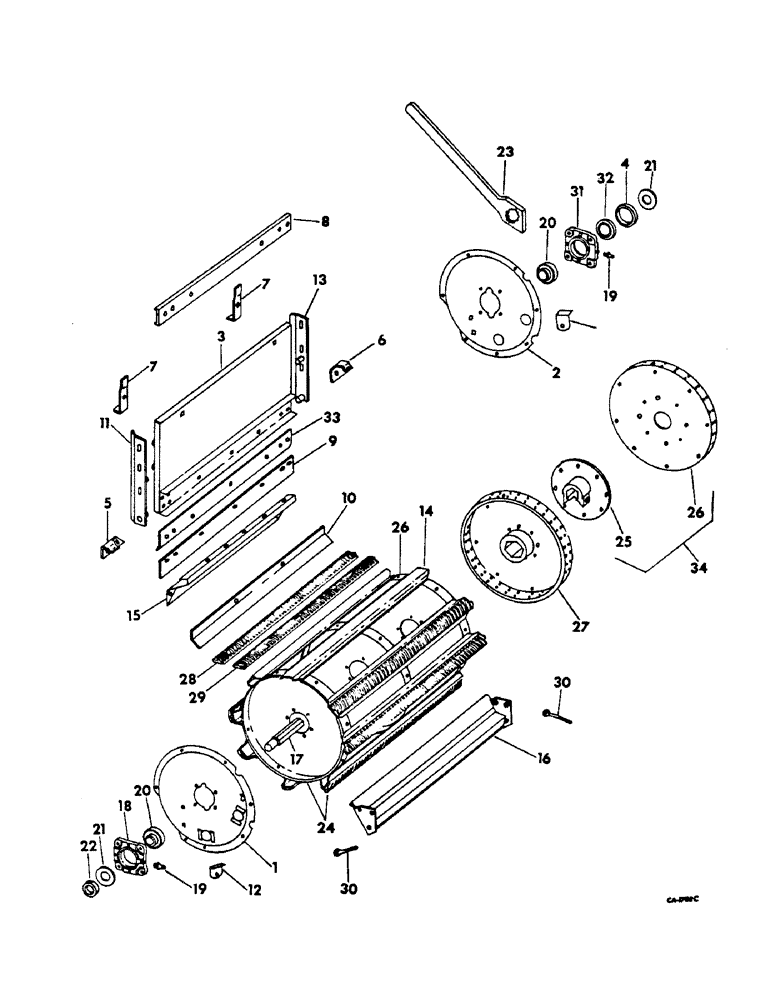

Запчасти Case IH 615 (21-02) - THRESHING CYLINDER AND CONCAVE, CYLINDER, RASP BAR (14) - THRESHING

1

633513R91

DOOR ASSY, cylinder left

1шт.

20816R1

BOLT, 3/8 x 1/2 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

633514R91

DOOR ASSY, cylinder right

1шт.

20816R1

BOLT, 3/8 x 1/2 znd sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

628137R91

DOOR ASSY, cyl front, serial no. 8000 and below

1шт.

3

177423C1

DOOR ASSY, cylinder front, serial no. 8001 and above

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 znd sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

7шт.

120376

NUT,5/16"-18, G5

4шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4-20 x 3/4 slt-pan-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

6шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

2шт.

4

172954C1

SPACER, cylinder shaft right

1шт.

5

569623R1

CLAMP

CLIP, cyl front door support left

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

133049

SCREW,Sl Rnd Hd, 1/4" - 20 x 1"

1/4-20 x 1 C-Z rd-hd slt mach

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga C-Z

2шт.

6

569624R1

CLAMP

CLIP, cyl front door support right

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

133049

SCREW,Sl Rnd Hd, 1/4" - 20 x 1"

1/4-20 x 1 C-Z rd-hd slt mach

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga C-Z

2шт.

7

569362R1

HANDLE, cyl front door

2шт.

8

171642C1

CHANNEL, cyl door, serial no. 8000 and below

1шт.

9

564083R1

SEAL, cyl door, serial no. 8000 and below

1шт.

9

177427C1

SEAL, front door, serial no. 80001 and above

1шт.

10

171643C1

DEFLECTOR, cyl front, serial no. 8000 and below

1шт.

11

627705R91

RETAINER ASSY, cyl front door left, serial no. 8000 and below

1шт.

11

177419C1

RETAINER

ASSY, cylinder front door LH, serial no. 8001 and above

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

5/16 x 1 znd hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

12

633518R1

DOOR

concave inspection

4шт.

13

627706R91

SUPPORT

RETAINER ASSY, cyl front door, serial no. 8000 and below

1шт.

13

177420C1

RETAINER

ASSY, cylinder front door RH, serial no. 8001 and above

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

5/16 x 1 znd hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

14

633527R1

SUPPORT, cyl bar

8шт.

104096

RIVET,But Hd, 5/16" x 5/8"

5/16 x 5/8 button hd

96шт.

15

935694R91

DEFLECTOR ASSY, cyl cover dust

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

16

150201C91

STRIPPER ASSY, cyl

1шт.

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2 x 1 hex-hd type 8

4шт.

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

1/2 x 1-1/2 hex-hd

2шт.

366864C1

LOCK WASHER,1/2"

1/2"

6шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

4шт.

17

172127C11

SHAFT ASSY, cyl

1шт.

19392R1

LOCK NUT,1 1/8"-12, G5

NUT, 1-1/8 zn nylon insert

1шт.

227271R1

WASHER

cylinder shaft

1шт.

25883R1

WASHER

1-19/32 x 2-1/4 x 16 GA C-Z

4шт.

18

939617R11

BOX

HOUSING ASSY, cylinder shaft left, includes ref no 20 & 21

1шт.

19

16964R91

FITTING

1/4-28 NE 90 deg lub

1шт.

20

939618R91

BEARING

cylinder shaft ball left

1шт.

21

939619R91

SEAL

SEAL, cyl shaft brg

2шт.

22

629721R11

COLLAR

COLLAR ASSY, cyl sh left brg lkg

1шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd

1шт.

23

174876C1

TOOL

WRENCH ASSY, cylinder rocking

1шт.

24

172115C91

CYLINDER ASSY LESS SHAFT, includes ref. nos. 14, 27, 28, 29 and 34

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach, for balance

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach, for balance

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 znd hex-hd mach, for balance

1шт.

20100R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1/2 x 2-3/4 hex-hd

2шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4 znp hex-hd cap

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

21330R1

NUT,1/2"-13, G8

1/2-13 hex.

2шт.

104113

RIVET,But Hd, 3/8" x 1"

3/8 x 1 rd-hd

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

366864C1

LOCK WASHER,1/2"

1/2"

2шт.

25710

WASHER

.53 x 1.06 x .13 hard

2шт.

25

172120C1

HUB, cyl clamp

2шт.

26

172117C1

FLANGE, cylinder head

3шт.

27

172116C1

HEAD ASSY, center

1шт.

28

654254R91

BAR

SET OF CYLINDER BARS LH, serial number 8000 and below, consists of two 633525R1 bars

1шт.

28

633525R1

BAR

cylinder left, serial number 8001 and above

4шт.

181655

BOLT,Hex, 7/16" - 20 x 9/16", Gr 5

SCREW, 7/16-20 x 9/16 znd hex-hd cap

24шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

24шт.

29

654255R91

BAR

SET OF CYLINDER BARS RH, serial number 8000 and below, consists of two 633526R1 bars

1шт.

29

633526R1

BAR

cylinder right, serial number 8001 and above

4шт.

181655

BOLT,Hex, 7/16" - 20 x 9/16", Gr 5

SCREW, 7/16-20 x 9/16 znd hex-hd cap

24шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

24шт.

30

634125R2

BOLT,3/8" - 16 x 4.62"

EYEBOLT, cyl deflector adj

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

31

173943C91

HOUSING ASSY, cylinder shaft right, includes ref nos 21 and 32

1шт.

32

173944C91

BEARING

ASSY, cylinder right

1шт.

33

177426C1

BACKING, front door seal, serial no. 8001 and above

1шт.

34

172119C91

HEAD ASSY, cyl clamp, includes ref. nos. 25 and 26

2шт.
