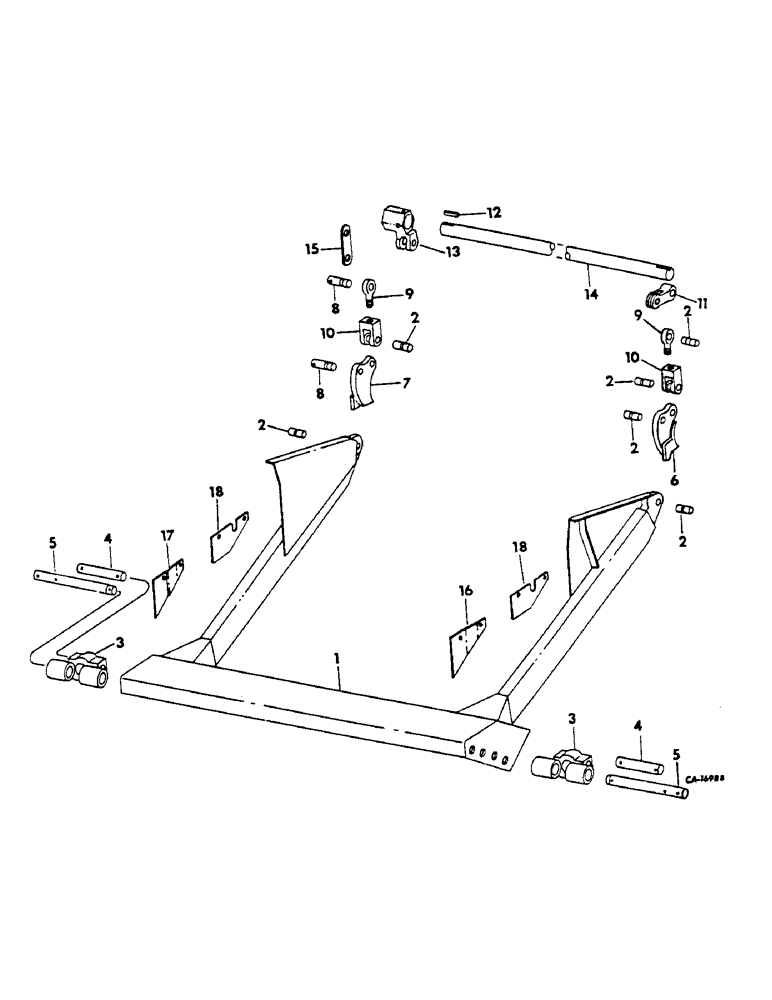

Запчасти Case IH 615 (33-10) - FEEDER, FEEDER HITCH, SERIAL NO. 8000 AND BELOW (13) - FEEDER

1

171525C1

FRAME ASSY, feeder hitch, serial no 2850 and below

1шт.

1

174735C1

FRAME ASSY, feeder hitch, serial no 2851 and above

1шт.

2

170702C1

PIN, feeder lock yoke

2шт.

170703C1

SCREW, special set

2шт.

2

170702C1

PIN, pivot lock eyebolt LH

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

1шт.

127796

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

Cup Pt Sq Hd, 1/4"-20 x 3/4"

1шт.

2

170702C1

PIN, feeder hitch pivot section

2шт.

170703C1

SCREW, special set

2шт.

2

170702C1

PIN, feeder pivot LH

1шт.

170703C1

SCREW, special set

1шт.

3

170674C1

EXTENSION, hyd cyl

2шт.

4

574322R1

PIN, hyd cyl attaching

2шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

5

170673C1

PIN, feeder hitch extension

2шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.

18561

PIN, 1/4 x 3 slt spring

2шт.

517843R1

COTTER PIN

PIN, QA cotter

2шт.

6

170675C1

CLAMP, feeder pivot LH

1шт.

7

170676C1

CLAMP, feeder pivot RH

1шт.

8

170666C1

PIN, feeder pivot RH clamp

1шт.

170703C1

SCREW, special set

1шт.

8

170666C1

PIN, pivot lock eyebolt RH

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

1шт.

127796

SET SCREW,Sq Hd, 1/4"-20 x 3/4"

Cup Pt Sq Hd, 1/4"-20 x 3/4"

1шт.

9

170672C1

EYEBOLT, pivot lock

2шт.

11

170677C1

ARM, feeder pivot lock LH

1шт.

124824

NUT,Hex, 5/16" - 18

5/16 ZND hex. jam

2шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 3/4 C-Z sq-hd

1шт.

102584

SPARE PART

SCREW, 5/16 x 3/4 hex-soc-hd cup-pt

1шт.

12

156664C1

KEY, 3/8 x 1-1/4 sq-parallel hardened

2шт.

13

170678C1

ARM, feeder pivot lock RH

1шт.

NLS

NO LONGER SERVICED

5/16 ZND hex. jam

2шт.

102584

SPARE PART

SCREW, 5/16 x 3/4 hex-soc-hd cup-pt

1шт.

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

SCREW, 5/16 x 3/4 C-Z sq-hd

1шт.

14

171529C1

SHAFT, feeder hitch torque

1шт.

15

170670C1

STRAP, feeder hitch pivot lock safety A

1шт.

517843R1

COTTER PIN

PIN, QA cotter

2шт.

16

170668C1

GUIDE, feeder hitch LH, for 18.4-26 and smaller main wheel tires, serial no. 2850 and below

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

17

170669C1

GUIDE, feeder hitch RH, for 18.4-26 and smaller main wheel tires, serial no 2850 and below

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

18

175216C1

GUIDE, feeder hitch, serial no 2851 and above

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.
