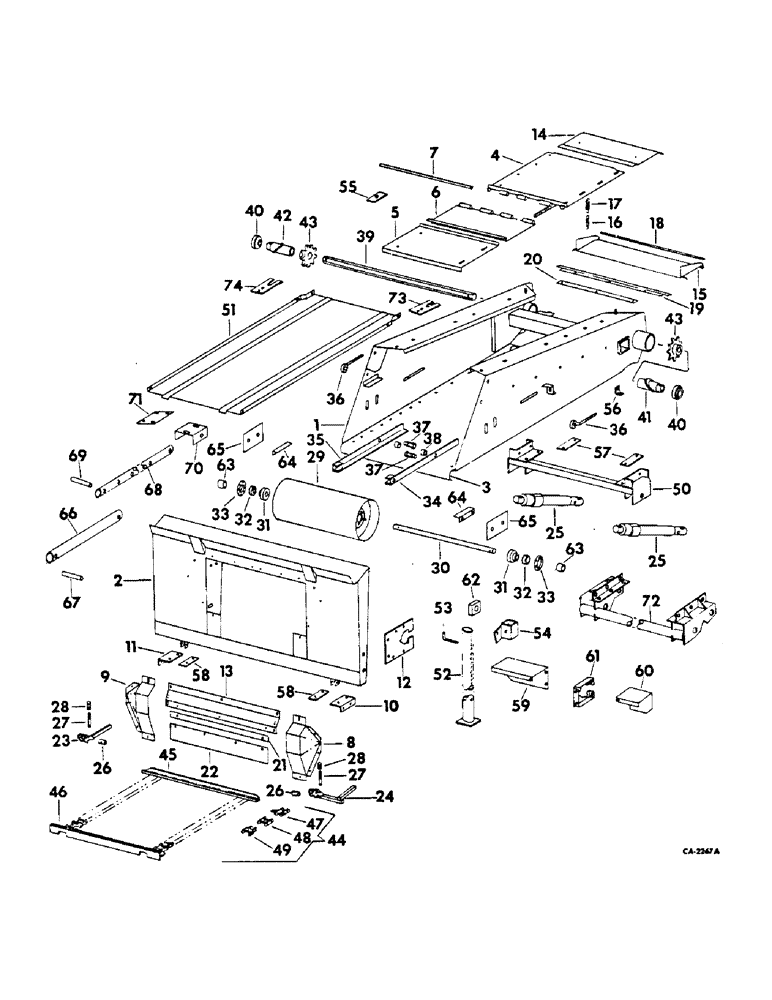

Запчасти Case IH 615 (33-02) - FEEDER, FEEDER, ADAPTER AND CONVEYOR (13) - FEEDER

FILLERS, feeder front, parts accessory

1шт.

1

197936C1

HOUSING ASSY, feeder

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 ZND hex.

6шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8 x 1-1/2 hex-hd

4шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8 x 1-3/4 hex-hd

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

.66 x 1.3 x .10 ZND

2шт.

2

175862C1

ADAPTER ASSY, feeder

1шт.

3

175886C1

SHEET, feeder bottom

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 ZND sq-nk crg

14шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 ZND sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

14шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

14шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

4

175889C1

SHEET ASSY, feeder top

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 ZND sq-nk crg-type 5

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 ZND hex.

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

495-11053

WASHER,1/2", SAE

.53 x 1.06 x .10 ZND

4шт.

5

175899C1

TOP, feeder lower

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 ZND sq-nk type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

495-11053

WASHER,1/2", SAE

.53 x 1.06 x .10 ZND

2шт.

6

175902C1

DOOR, feeder top

1шт.

7

175905C1

ROD, feeder top door hinge

1шт.

8

175908C1

DEFLECTOR

ASSY, feeder top door hinge

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 ZND flange lock

5шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 flange lock

5шт.

9

175909C1

DEFLECTOR

ASSY, feeder front RH

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 ZND flange lock

5шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 flange lock

5шт.

10

175913C1

ANGLE

feeder adapter LH

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

11

175914C1

ANGLE

feeder adapter RH

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 sq-nk crg

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

495-11053

WASHER,1/2", SAE

.53 x 1.06 x .10

1шт.

12

175915C1

SUPPORT

feeder jackshaft brg

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 sq-nk crg

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 C-Z flange lock

2шт.

13

175916C1

COVER, feeder adapter

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

5шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 slt-truss-hd

5шт.

14

175919C1

COVER, feeder top upper

1шт.

15

175922C1

DOOR ASSY, feeder

1шт.

16

167570C1

CHAIN,203.2mm L

door latch

2шт.

17

622016R1

SPRING

door latch

2шт.

18

175929C1

ROD, feeder door hinge

1шт.

19

175932C1

SEAL, feeder door

1шт.

46-38

RIVET,Csk, 3/16" x 1/2"

3/16 x 1/2 csk-hd solid

4шт.

20

175948C1

STRIP, feeder lower door seal

1шт.

21

175951C1

STRIP, front cover back

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

7шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 flange lock

7шт.

22

175954C1

COVER

front lower

1шт.

23

179024C1

HINGE

HANDLE ASSY, feeder latch RH

1шт.

24

179020C1

HANDLE ASSY, feeder latch LH

1шт.

25

383760R92

CYLINDER, platform lift, for single belt jackshaft drive, serial number 8000 and below

2шт.

25

59736C91

CYLINDER, platform lift, for double belt jackshaft drive, serial number 8001 and above

2шт.

26

177141C1

PIN,15.88mm OD x 41mm L

latch pivot

2шт.

17132R1

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

21471R1

WASHER

21/32 x 1 x 11 ga

4шт.

27

177138C1

ROD

feeder latch

2шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16 ZND nylon insert

2шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .34 x .69 x .06 ZND

4шт.

28

367833R1

SPRING

latch rod

2шт.

29

175974C1

DRUM ASSY, feed conveyor

1шт.

30

175981C1

SHAFT

feed conveyor drum

1шт.

22192R1

WASHER

1-1/32 x 1-3/8 x 16 ga

1шт.

31

202311C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING, feed conveyor drum

2шт.

32

455102R11

COLLAR

ASSY, feed conveyor drum brg

2шт.

33

165360C1

FLANGED BEARING,95.2 mm OD x 8.74 mm

FLANGE, feed conveyor drum support

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8 x 2 ZND hex-hd cap

1шт.

35

178757C2

ARM

ASSY, feed conveyor drum support RH

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8 x 2 ZNP hex-hd cap

1шт.

36

176508C1

BOLT,5/8" - 11 x 228.60mm

feed conveyor tightener

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 ZND hex.

4шт.

37

178005C1

BOLT,Hex, 5/8" - 11 x 3", Gr 5

conveyor drum support arm

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 ZND hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

.66 x 1.3 x .10 ZND

6шт.

38

558506R1

SPACER

support arm bolt

2шт.

39

176512C1

SHAFT, feed conveyor

1шт.

137323

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

2шт.

609376R1

WASHER

1.78 x 2.5 x .105

1шт.

40

176507C92

BEARING

feed conveyor shaft

2шт.

41

178780C1

SPACER

ASSY, conveyor sprocket LH

1шт.

42

178781C1

SPACER

ASSY, conveyor sprocket RH

1шт.

43

175989C1

SPROCKET ASSY.

SPROCKET, feed conveyor, 9T, serial number 12000 and below

1шт.

197643

TUBE

SCREW, special set

2шт.

43

197556C1

SPROCKET ASSY.

SPROCKET, feed conveyor, 9T, serial number 12001 and above

2шт.

44

175990C91

CHAIN (AG)

CHAIN ASSY, feed conveyor, includes ref nos 45 thru 49

1шт.

45

175995C1

SLAT

feed conveyor

21шт.

104263

X

RIVET, 5/16 x 1/2 F-hd solid

1шт.

46

177300C1

SLAT ASSY, conveyor stripper

1шт.

104263

X

RIVET, 5/16 x 1/2 F-hd solid

4шт.

47

176505C1

LINK

ASSY, att, consists of side bar w/riveted pins and 1 loose side bar

1шт.

48

176506C1

LINK

ASSY, connecting, consists of side bar w/riveted pins and 1 loose side bar, serial number 12000 and below

1шт.

48

179903C1

LINK

ASSY, connecting, serial number 12001 and above

1шт.

49

178200C1

DRAG LINK

LINK ASSY, offset, consists of side bars w/roller and 1 loose pin, serial number 12000 and below

1шт.

49

1799004C1

LINK ASSY, offset, serial number 12001 and above

1шт.

50

176521C1

BRACKET ASSY, header lift, serial number 12000 and below

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 ZND sq-nk crg type 5

2шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4 ZND sq-nk crg type 5

2шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 ZND sq-nk crg type 5

4шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 C-Z flange lock

4шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 C-Z flange lock

4шт.

51

177667C1

BOTTOM ASSY, feeder false

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 flange lock

10шт.

164191C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1 1/2"

5/16 x 1-1/2 flange lock

2шт.

52

178234C1

STAND ASSY, feeder safety, serial number 12000 and below

1шт.

53

589584R1

PIN

ROD, stand holder, serial number 12000 and below

1шт.

517843R1

COTTER PIN

PIN, 3/16 QA cotter

1шт.

54

178605C1

ANCHOR, feeder stand, serial number 12000 and below

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 ZND sq-nk crg

2шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 ZND flange lock

2шт.

22042R1

WASHER

17/32 x 2 x 11 ga ZND

1шт.

55

(Not used in this application)

1шт.

56

154971C1

ANGLE

feeder door spring

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

164191C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1 1/2"

5/16 x 1-1/2 slt-truss-hd

2шт.

57

179925C1

SHIM, feeder lift

2шт.

58

179195C1

SHIM, feeder adapter

2шт.

59

179252C1

SHIELD, feeder jackshaft LH inner

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

3шт.

60

179253C1

SHIELD

feeder jackshaft LH outer

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

3шт.

61

178254C1

SUPPORT

feeder jackshaft shield

2шт.

62

656417R1

PLATE, safety stand support spacer, serial number 12000 and below

1шт.

63

M74461

SPACER,26.6mm ID x 33.4mm OD x 19mm L

2шт.

64

179273C1

STOP, feed conveyor drum lower

2шт.

65

179274C1

COVER, feeder side

2шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 sq-nk crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

66

179923C1

PIPE, safety stand front, serial number 12001 and above

1шт.

67

573762R1

PIN,25.4mm OD x 130.97mm L

safety stand anchor, serial number 12001 and above

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

1шт.

68

179924C1

TUBE, safety stand rear, serial number 12001 and above

1шт.

69

164533C1

PIN

safety stand anchor, serial number 12001 and above

1шт.

137263

STRIP

3/16" x 2"

1шт.

517843R1

COTTER PIN

PIN, quick attach cotter

1шт.

70

197502C1

CHANNEL, safety stand lock, serial number 12001 and above

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 sq-nk-crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, 3/8 x .012 x .065 flat

1шт.

71

179748C1

PLATE, stand support, seial number 12001 and above

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 sq-nk-crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, 3/8 x .812 x .065 flat

1шт.

72

179922C1

BRACKET ASSY, header lift, serial number 12001 and above

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1 sq-nk-crg

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1 sq-nk-crg

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

1/2 flange lock

1шт.

73

197964C1

STRIPPER

ASSY, LH, serial number 12001 and above

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 hex-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .41 x .81 x .06

1шт.

74

197965C1

STRIPPER

ASSY, RH, serial number 12001 and above

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 hex-hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .41 x .81 x .06

1шт.
