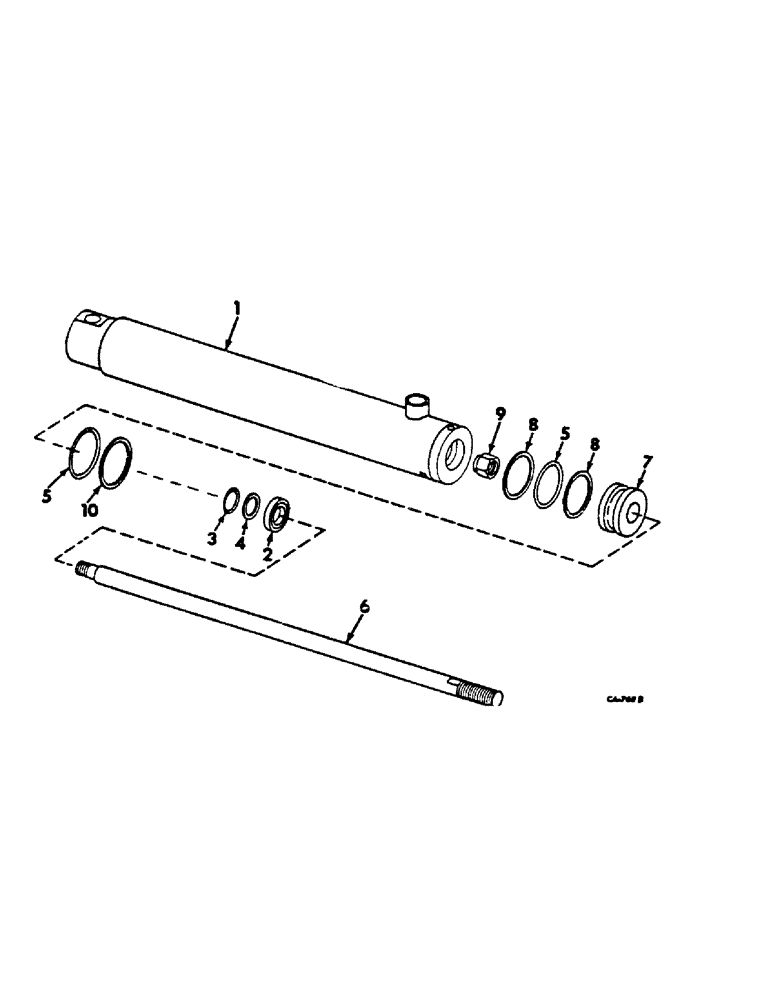

Запчасти Case IH 615 (10-34) - HYDRAULICS, STEERING CYLINDER (07) - HYDRAULICS

397689R91

CYLINDER ASSY, steering, includes ref nos 1 thru 10

1шт.

1

397690R1

BODY ASSY, hydraulic cylinder

1шт.

2

566103R91

OIL RESERVOIR

SEAL, rod wiper oil

1шт.

3

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16 x 7/8 x 3/32 class C rod seal

1шт.

4

397695R1

BACK-UP RING

WASHER, backup

1шт.

5

343909R1

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1-1/2 x 1-3/4 x 1/8

2шт.

6

397696R1

ROD

piston hydraulic cylinder

1шт.

if looking for the tie rod end for this rod the p/n is

1шт.

159807c91. found in the steering section. 4-28-97 cw

1шт.

7

397697R1

PISTON

hydraulic cylinder

1шт.

8

397698R1

BACK-UP RING

WASHER, piston back-up

2шт.

9

9413215

LOCK NUT,7/16"-20, GC

NUT, 7/16-20 hex lock

1шт.

10

388849R1

SPRING

RETAINER, cylinder end

1шт.

11

397694R1

HEAD, rod end hydraulic cylinder

1шт.
