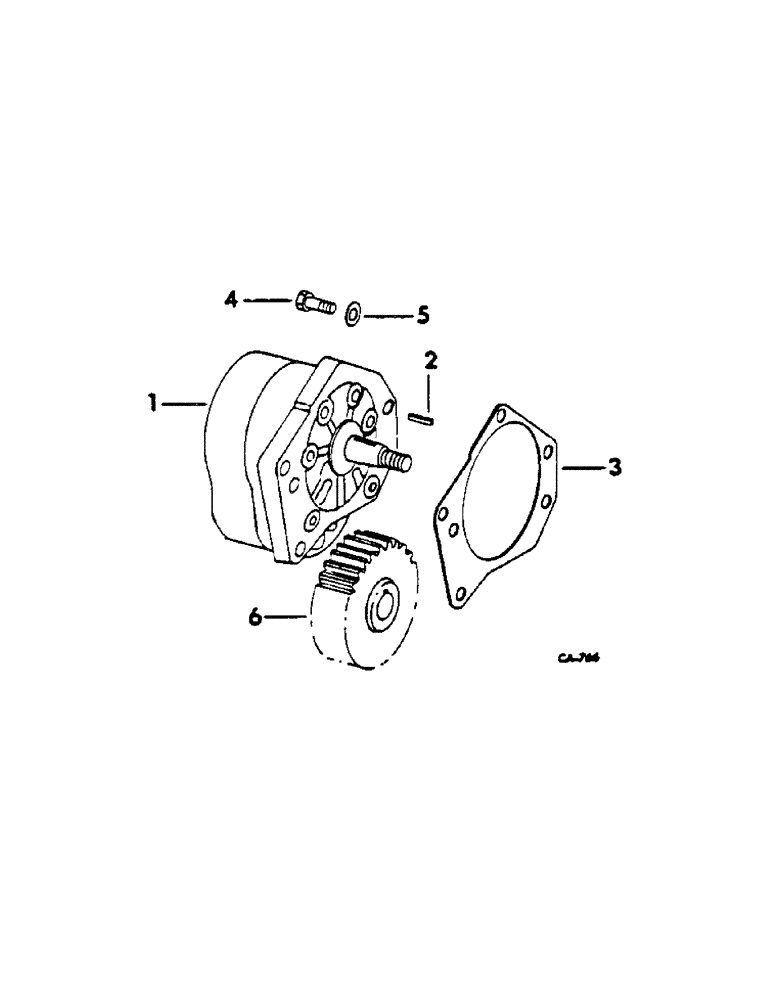

Запчасти Case IH 615 (10-32) - HYDRAULICS, HYDRAULIC LIFT PUMP, NOT HYDRAULIC REEL DRIVE, CESSNA (07) - HYDRAULICS

1

171914C91

PUMP

ASSY, hydraulic lift

1шт.

20729R1

NUT,3/8"-16, G5, LH

3/8 ZND hex. LH thrd

1шт.

632019R1

LOCK WASHER,3/8"

hydraulic pump shaft 3/8"

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

2

628965R1

KEY

5/32 x 3/4 square parallel

1шт.

3

632851R1

GASKET

flange

1шт.

4

313756R1

BOLT (SPREADER),Pan, M8 x 18mm

BOLT, hydraulic pump mounting

2шт.

5

565832R1

WASHER

hydraulic pump mounting

2шт.

6

631180R1

GEAR

hydraulic pump

1шт.

168318C93

SEAL KIT

ASSY, diaphragm repair, consist of (1) diaphragm, (1) seal diaphragm, (1) gsket, backup, (1) gasket, protector, (1) seal, shaft, (2) springs, (2) ball, steel, 7/32, (1) o-ring (Replaces 1683128R92)

1шт.
