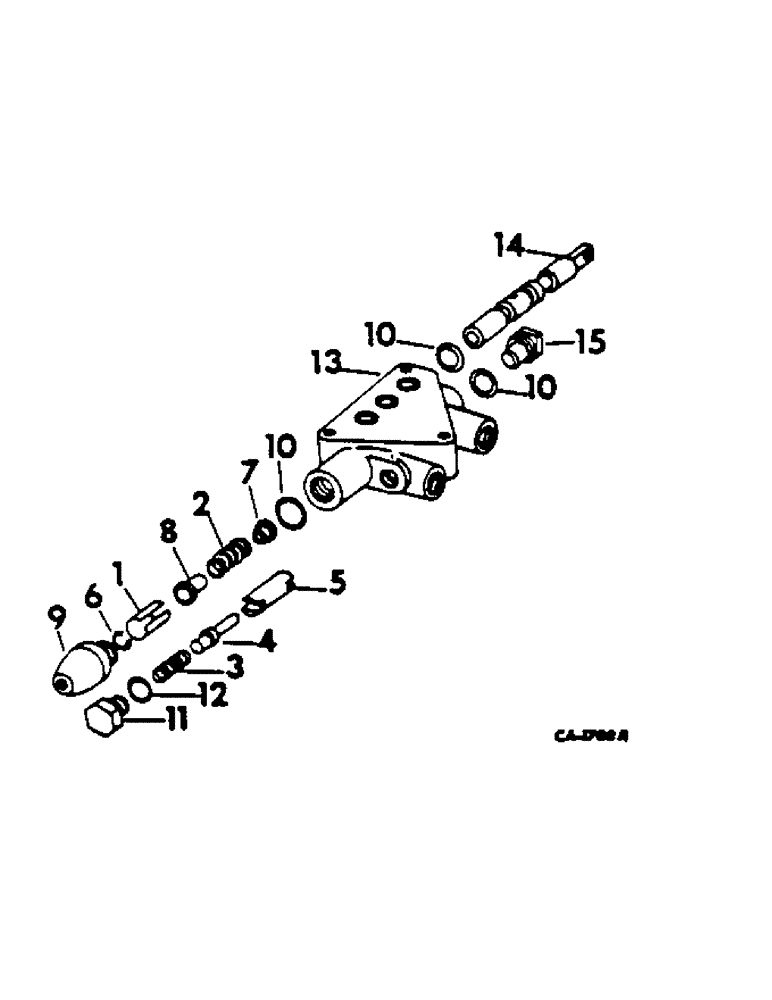

Запчасти Case IH 615 (10-31) - HYDRAULICS, PLATFORM LIFT VALVE SECTION (07) - HYDRAULICS

170300C91

VALVE, CHECK

VALVE ASSY, section, includes ref nos. 1 thru 14

1шт.

1

588345R1

SLEEVE

spool

1шт.

2

588353R1

SPRING

spool centering

1шт.

3

159382C1

SPRING

lockout

1шт.

4

159380C91

VALVE

POPPET ASSY

1шт.

5

173859C91

PLUNGER ASSY, lockout

1шт.

6

85633R1

RING

SNAP RING

1шт.

7

11002VA

WASHER

spool spring

1шт.

8

557263R1

WASHER, spool spring

1шт.

9

588343C91

CAP ASSY

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

1шт.

10

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

3шт.

11

159801C1

PLUG

1шт.

12

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

2шт.

13

BODY, not serviced separately order valve section assy 170300C91

1шт.

14

SPOOL, not serviced separately order valve section assy 170300C91

1шт.

15

588342R1

PLUG

1шт.

KIT ASSY, repair, refer to 173824C91 major repair kit listed under control valve

1шт.
