(10-30) - HYDRAULICS, PROPULSION OR REEL LIFT VALVE SECTION

Запчасти Case IH 615 (10-30) - HYDRAULICS, PROPULSION OR REEL LIFT VALVE SECTION (07) - HYDRAULICS

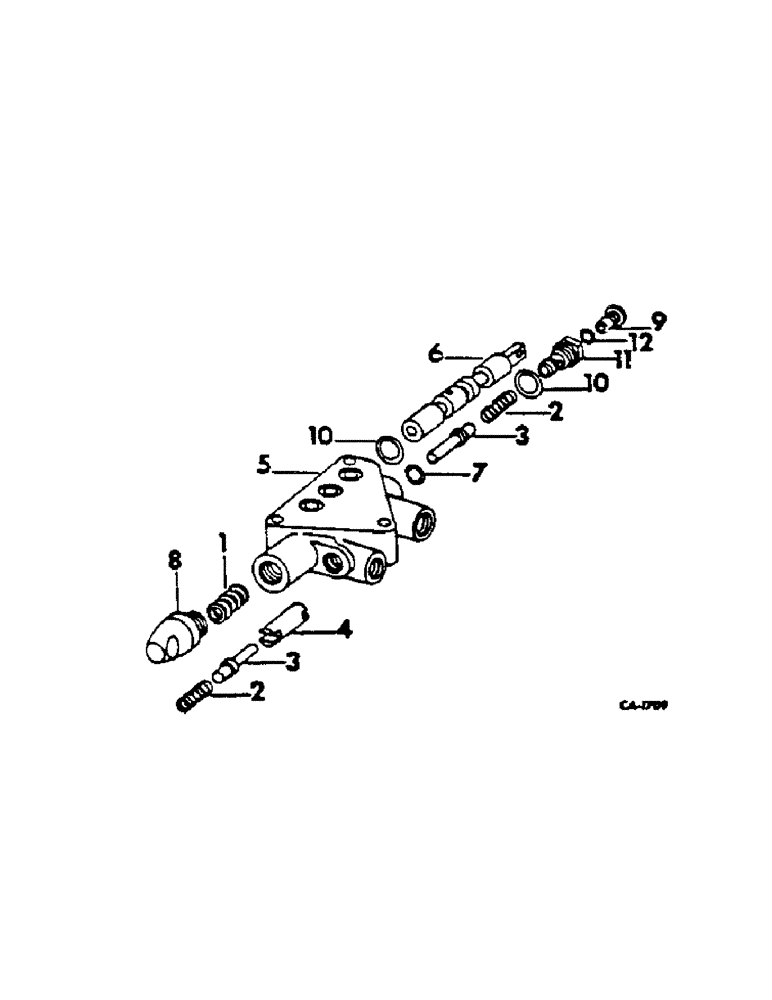

Схема запчастей Case IH 615 - (10-30) - HYDRAULICS, PROPULSION OR REEL LIFT VALVE SECTION (07) - HYDRAULICS
3
2
12
6
4
8
5
10
2
3
11
9
1
10
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

173569C91

VALVE

ASSY, section, includes ref nos. 1 thru 12

1шт.

1

588353R1

SPRING

spool centering

2шт.

2

574789R1

SPRING

lockout

2шт.

3

588351R91

VALVE

POPPET ASSY

2шт.

4

173825C1

PLUNGER, lockout

1шт.

5

BODY, not serviced separately order valve section assy 173569C91

1шт.

6

SPOOL, not serviced separately order valve section assy 173569C91

1шт.

7

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32

1шт.

8

588343R91

CAP ASSY

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

1шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16-24 x 3/4 hex-hd cap

1шт.

9

391458R1

PLUG

5/8-18 slotted

1шт.

10

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

3шт.

11

588349R1

SEAT

lockout

1шт.

12

252793R1

O-RING, 1/2 x 11/16 x 3/32

1шт.

KIT ASSY, repair, refer to 173824C91 major repair kit listed under control valve

1шт.
